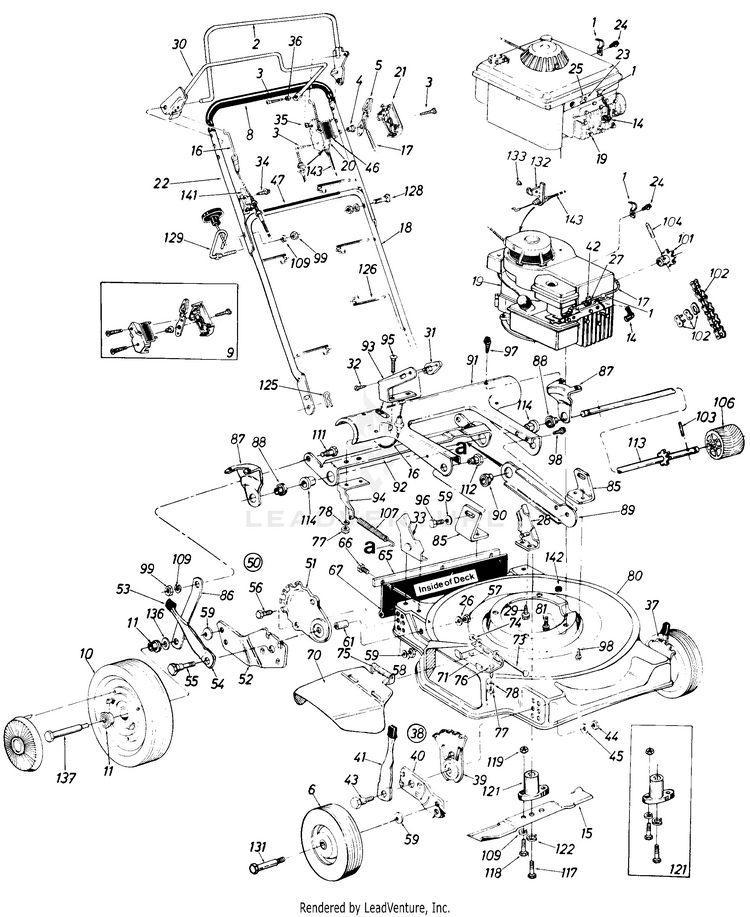

Cenex by MTD Mdl 127-220-095 Self-Propelled Mower

Model: Cenex Mdl 127-220-095

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
CABLE CLAMP MTD-12894
...
2
CONTROL HANDIE ASS'Y.-L.H. MTD-14321
...
3
Truss Mach. Hi-B Tap Scr. #12 x 1.5" MTD-710-0796
...
4
CONROL DISC PIN MTD-731-0524
...
5
Throttle Control Lever MTD-931-0972
...
6
Front Wheel Ass'y. Comp. MTD-NA
...
xx
FRONT WHEEL-SMOOTH TREAD MTD-734-0843
...
xx
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
xx
WHEEL ASSEMBLY W/TIRE-8 x 1.75 TL MTD-734-0661
...
xx
FRONT WHEEL ASS'Y. COMP. 8 x 1.75 MTD-734-0845
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0643
...
8
Grip (Optional) MTD-718-0145
...
9
CONTROL HOUSING COMP. MTD-753-0430
...
10
WHEEL ASSEMBLY W/TIRE-9X1.75 MTD-734-1204
...
11
BALL BEARING MTD-941-0180
...
xx
L-Wash 3/8" 1. D. MTD-736-0169
...
xx
Hub Cap MTD-NA
...
14
INSULATOR-SPARK PLUG MTD-735-0639
...
15
22" BLADE MTD-942-0125B
...
16
CLUTCH CABLE MTD-746-0607
...
17
Throttle Wire 55" Lg. MTD-946-0671A
...
18
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
19
Engine MTD-NA
...
20
CIUTCH PANEL HALF MTD-731-0816
...
21
PANEL MTD-731-0817
...
22
UPPER HANDLE MTD-749-0536
...
xx
UPPER HANDLE MTD-749-0538
...
23
Hex AB-Tap Scr. #8 x .50" MTD-710-0227
...
24
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
25
CASING CLAMP MTD-751-0442
...
26
Bell-Wash. 5/16" I.D. MTD-736-0242
...
27
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
28
BRACKET AS MTD-12935
...
29
Hex B-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
30
HANDLE ASSEMBLY MTD-16391
...
31
HOLD DOWN-BARREL (RH) MTD-746-0606
...
32
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
33
BRACKET ASSY-HDLE MTD-12936
...
34
Hex Wash. AB-Tap Scr. 5/16 x .75" MTD-710-0726
...
35
SPRING WASHER MTD-736-0370
...
36
SPACER MTD-750-0649
...
37
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
38
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
39
Height Adjustment Plate MTD-787-01290A
...
40
Pivot Bar (7" wheel assembled in bottom hole, 8" wheel assembled in top hole) MTD-15262B
...
41
Front Spring Lever MTD-94832
...
42
CLAMP-CONDUIT MTD-751-0369
...
43
Shoulder Bolt .50" Dia. MTD-738-0507B
...
44
Hex Nut 3/8-16 Thd. MTD-712-0798
...
45
BELL WASHER MTD-936-0356
...
46
Control Label MTD-777-5774
...
47
Instruction Label MTD-777-5776
...
50
ADJUSTER A MTD-14762
...
xx
Rear Height Adj. Ass'y.-L.H (Not Shown) MTD-14763
...
51
Index Plate MTD-14764C
...
52
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
53
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
54
SPRING LEVER MTD-732-0417A
...
55
SHOULDER SCREW MTD-738-0528
...
56
Hex Bolt 3/8-16 x .75 MTD-710-0216
...
57
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
58
Hex Nut 3/8-16 Thd. MTD-712-0798
...
59
Bell-Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
61
SPACER MTD-950-0503
...
65
RETAINER STRIP MTD-14846
...
66
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
67
FLAP ASSEMBLY MTD-731-1029
...
70
CHUTE DEFLECTOR MTD-931-1034B
...
71
ADAPTER PLATE MTD-11130
...
73
PIVOT PIN MTD-711-0555
...
74
PUSH NUT MTD-726-0106
...
75
TORSION SPRING MTD-732-0253
...
76
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
77
HEX NUT 1/4-20 MTD-912-0287
...
78
L-Wash. 1/4" I.D. MTD-936-0329
...
80
22" DECK ASS'Y MTD-14999
...
81
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
85
BRACKET-PIVOT LH MTD-14759
...
86
LINK MTD-16005
...
87
BRACKET-AX MTD-14757
...
88
BALL BEARING MTD-941-0180
...
89
Brg. Support MTD-14877
...
90
BALL BEARING MTD-941-0180
...
91
COVER-PINI MTD-16319
...
92
CAM MTD-16332
...
93
Engagement Arm-L.H. MTD-16534
...
94
Spring Bracket MTD-16536
...
95
Carriage Bolt 1/4-20 x .62 MTD-710-0134
...
96
Hex Bolt 3/8-16 x .50 Lg. MTD-710-0168
...
97
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
98
SCREW 1/4-14 x .625 MTD-710-0892
...
99
HEX NUT 5/16-18 MTD-712-3010
...
101
SPROCKET-10T MTD-713-0308
...
102
#48 CHAIN 1/2 PITCH x 50 LINKS MTD-913-0311
...
xx
#48 MASTER LINK (Service Only) MTD-713-0122
...
103
Roll Pin 3/16 x 1.25" MTD-915-0246
...
104
SPRING PIN MTD-715-0247
...
106
DRIVE PINION MTD-717-0807
...
107
Spring, extension, .50 Od x 4.35 MTD-732-0428B
...
109
Lock Wash. 5/16" I.D. MTD-936-0119
...
111
Shoulder Bolt MTD-938-0155
...
112
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
113
PINION SHAFT MTD-738-0530
...
114
BALL BEARING MTD-941-0484
...
117
Hex Bolt 3/8-24 x 2.25 MTD-710-0331
...
118
Hex Bolt 5/16-24 x 1.0-Spec. MTD-710-0888
...
119
Hex Nut 5/16-24 Thd. MTD-912-3057
...
121
Blade Adapter Kit MTD-753-0348
...
122
L-Wash. 3/8 I.D.-H.D. MTD-736-0217
...
125
Intern. Cot. Pin 5/16 Dia. MTD-714-0104
...
126
Cable Tie MTD-725-0157
...
128
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
129
OPE GUIDE BOLT MTD-710-0842
...
131
Front Axle Bolt MTD-NA
...
xx
Axle Bolt MTD-738-0102
...
xx
Axle Bolt MTD-710-0347
...
132
BRACKET-CA MTD-14924
...
133
RIVET MTD-728-0171
...
136
Fl-Wash. .531 I.D. x .93 O.D. MTD-736-0192
...
137
SHOULDER SCREW .498 MTD-738-0144
...
141
CABLE BRACKET MOUNTING MTD-16309A
...
142
PLUG MTD-731-0564
...
143
THROTTLE CABLE MTD-746-0476
...
xx
Hardware Pack MTD-8222-000-7
...
...
...
...
...
