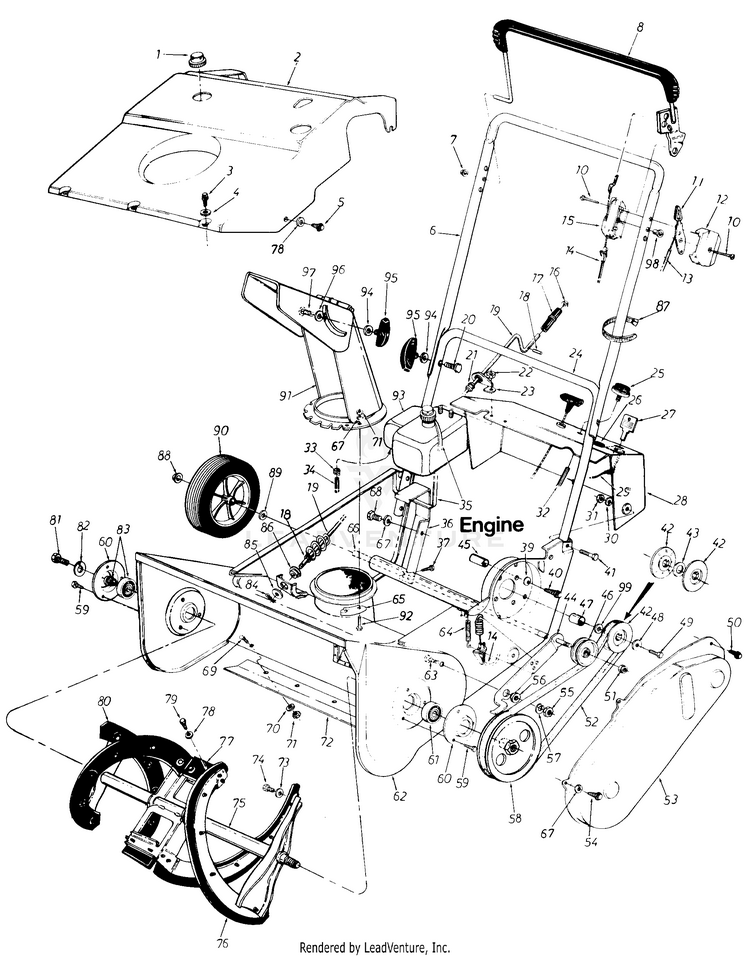

Caldor 181-122 (1987) Snow Thrower

Model: 181-122 (1987)

Save
 Part Not Listed?Part Not Listed?
product name

21" Snow Throwers

...
...
1
FUEL CAP (180 & 181) MTD-TC-410240
...
xx
Gas Tank Cap (190) MTD-751-0363
...
2
SHROUD (180 & 181) MTD-731-0702
...
xx
SHROUD-SNOWTHROWER (190) MTD-731-0703
...
3
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
4
SPRING WASHER MTD-736-0370
...
5
SCREW 1/4-14 x .625 MTD-710-0892
...
6
UPPER HANDLE MTD-749-0704
...
7
Cap Speed Nut MTD-726-0135
...
8
HANDLE ASSEMBLY-CONTROL (LH) MTD-731-0791
...
10
Truss Hi-B Tap Scr. #12x 1.5" Lg. MTD-710-0796
...
11
Throttle Control Lever (190 Only) MTD-931-0972
...
12
PANEL (180 & 181) MTD-731-0525
...
xx
CONTROL PANEL HALF (190) MTD-731-0523
...
13
CONTROL CABLE (190 Only) MTD-746-0544
...
14
Clutch Cable 35" Lg. MTD-946-0506
...
15
CLUTCH PANEL HALF MTD-731-0526
...
16
Push Cap 3/8" Rod MTD-726-0100
...
17
Chute Crank Knob MTD-720-0201A
...
18
Rolled Pin, 1/8 x .63 MTD-915-0138
...
19
CHUTE CRANK ASSEMBLY MTD-784-5344
...
20
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
21
BUSHING .380 ID MTD-941-0475
...
22
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
23
CHUTE CRANK BRACKET MTD-784-5178A
...
24
LOWER HANDLE MTD-749-0712
...
25
Primer MTD-TC-570682A
...
26
PLUG MTD-731-0732
...
27
Key (Tech. Eng.) MTD-TC-35062
...
28
Dash Panel Ass'y. (180 & 181) MTD-784-5168
...
xx
Dash Panel Ass'y. (190) MTD-784-5342
...
29
Ignition Wire MTD-725-0958
...
30
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
LINE-PRIMER MTD-TC-32180C
...
33
HOSE CLAMP MTD-726-0207
...
34
FUEL HOSE 1/4-24" MTD-751-22813-24
...
35
CABLE TIE MTD-726-0225
...
36
BRACKET-EN MTD-784-5341
...
37
SCREW 1/4-14 x .625 MTD-710-0892
...
39
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
40
SCREW 5/16-18 x 1.5 LG (180 & 181) MTD-710-0805A
...
xx
Hex Bolt 5/16-24 x .62" Lg. (190) MTD-710-0237
...
41
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
42
Pulley Half, .625 x 2.25 MTD-956-0416B
...
43
Fl-Wash. .635" I.D. x .93" O.D. (180 & 181) MTD-736-0116
...
xx
Fl-Wash. (190) MTD-936-0256
...
44
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
45
Spacer.325" I.D. (180 & 181 Only) MTD-950-0589
...
46
Fl-Idler w/Flanges 2.12" O.D. MTD-756-0313
...
47
SPACER (180 & 181 Only) MTD-948-0201
...
48
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
49
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
50
SCREW 1/4-14 x .625 MTD-710-0892
...
51
HEX LOCK NUT 3/8-2 MTD-912-0296
...
52
V-Belt 1/2 x 35.0" Lg. (180 & 181) MTD-954-0101A
...
xx
V-BELT 1/2 X 35 (190) MTD-754-0235
...
53
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
54
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
Shld. Spacer .50" Dia. x .27" Lg. MTD-748-0234
...
57
Lock Wash. 5/16" I.D. MTD-936-0119
...
58
1/2" "V"-Pulley 1/2-20 LH. x 6" O.D. MTD-756-0475
...
59
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
60
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
61
BALL BEARING MTD-941-0600
...
62
21" BLOWER HOUSING MTD-784-5325
...
63
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
64
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
65
Chute Flange Keeper MTD-731-0851A
...
66
AXLE-WHEEL MTD-749-0605
...
67
L-Wash. 1/4" I.D. MTD-936-0329
...
68
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
69
Carriage Bolt 1/4-20 x .62" Lg.* MTD-710-0134
...
70
Fl.-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
71
HEX NUT 1/4-20 MTD-912-0287
...
72
Shave Plate MTD-731-1033
...
73
Fl-Wash. .281" I.D. x .50" O.D. MTD-736-0142
...
74
Hex Wash. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
75
AUGER ASSEMBLY MTD-984-04027A
...
76
Rubber Spiral - L.H. MTD-931-0780A
...
77
Rubber Paddle MTD-931-0782A
...
78
Fl-Wash. .218" I.D. x .62" O.D. MTD-736-0400
...
79
Hex Wash. B-Tap Scr. #10 x .62" Lg. MTD-710-0692
...
80
Rubber Spiral - L.H. MTD-931-0780A
...
81
Hex Wash. TT-Tap Cl-Scr. 1/4 -20 x .75" Lg. MTD-710-0875
...
82
L-Wash. 1/4" I.D. MTD-936-0329
...
83
KIT-BRG & COLLAR MTD-753-0374
...
84
Cotter Pin 3132" Dia. x .75" MTD-714-0507
...
85
Fl-Wash. .390" I.D. x 1.50" O.D. MTD-736-0234
...
86
BUSHING-HEX MTD-741-0403
...
87
CLAMP-CABLE 7/8 MTD-726-0188
...
88
Push Cap 1/2" Dia. MTD-726-0221
...
89
Fl-Wash. .510" I.D. x .75" O.D. MTD-736-0108
...
90
WHEEL ASSEMBLY W/TIRE- MTD-734-0831
...
91
5" Dia. Chute Ass'y. MTD-784-5332
...
92
Carriage Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
93
FUEL TANK MTD-TC-32660A
...
94
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
95
Star Knob MTD-720-04072A
...
96
Fl-Wash. .328" I.D. x .68" O.D. MTD-736-0278
...
97
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
98
CONROL DISC PIN MTD-731-0524
...
99
Fl.-Wash .635 I.D. x 1.04 O.D (190 only) MTD-736-0162
...
xx
3 HP 110V Electric Start MTD-751-0355
...
xx
5 HP 110V Electric Start MTD-751-0356
...
...
...
...
...
