Builders Best 126-362-073 Self-Propelled Mower

Model: Builders Best 126-362-073

Save
 Part Not Listed?Part Not Listed?
product name

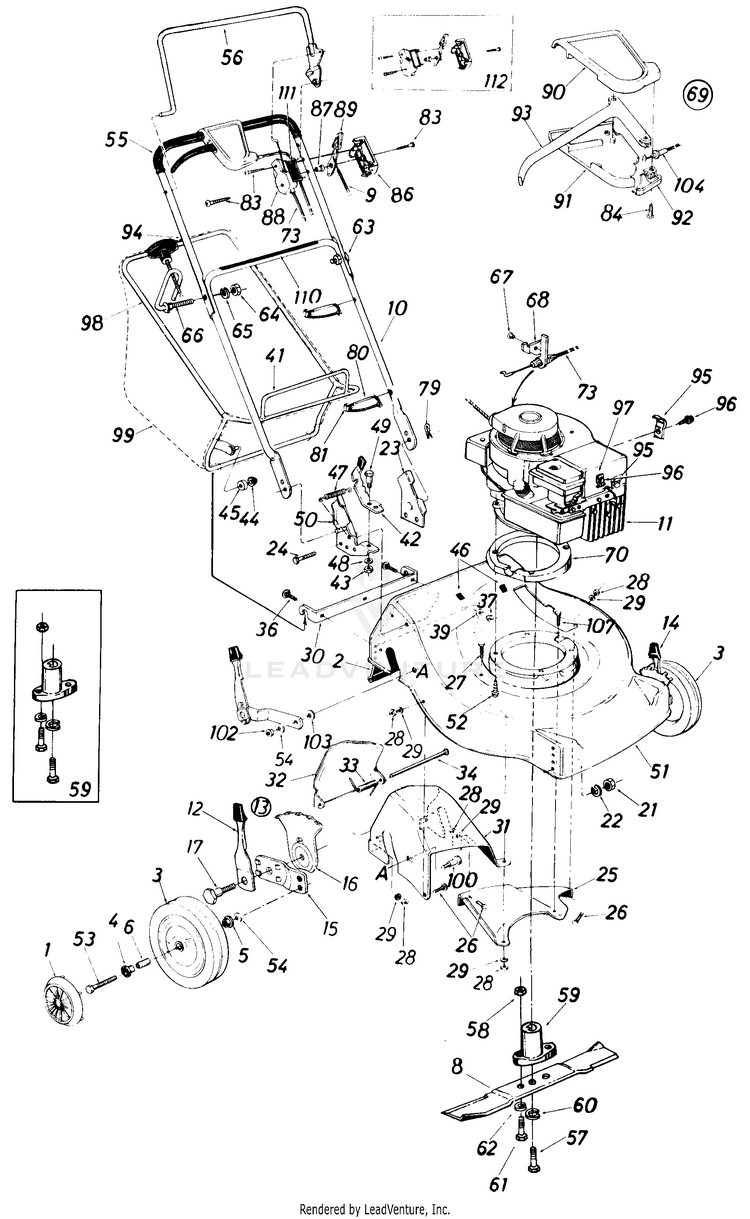

Parts

...
...
1
Hub Cap MTD-NA
...
2
FLAP MTD-731-0664
...
3
Front Wheel Ass'y MTD-NA
...
xx
FRONT WHEEL-SMOOTH TREAD MTD-734-0843
...
xx
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
xx
WHEEL ASSEMBLY W/TIRE-8 x 1.75 TL MTD-734-0661
...
xx
FRONT WHEEL ASS'Y. COMP. 8 x 1.75 MTD-734-0845
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0643
...
4
Bearing MTD-NA
...
xx
Plastic Bearing MTD-741-0262
...
5
Bearing MTD-NA
...
xx
FORTIFLEX BEARING MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
6
Spacer (Used w/Ball Brg. Only) MTD-NA
...
xx
Spacer MTD-750-0434
...
8
22" BLADE MTD-942-0125B
...
9
Throttle Wire-58" Lg. MTD-946-0674A
...
10
Lower Handle MTD-749-0907B
...
11
Engine MTD-NA
...
12
Front Spring Lever MTD-94832
...
13
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
14
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
15
Pivot Bar MTD-15262B
...
16
Height Adjustment Plate MTD-787-01290A
...
17
Shoulder Bolt .50" Dia. MTD-738-0507B
...
21
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
22
BELL WASHER MTD-936-0356
...
23
BRACKET ASSEMBLY MTD-12297
...
24
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
25
Rear Baffle-L.H. MTD-14014
...
26
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
27
Hex Bolt 1/4-20 x .88" Lg.* MTD-710-0206
...
28
HEX NUT 1/4-20 MTD-912-0287
...
29
L-Wash. 1/4" I.D. MTD-936-0329
...
30
ADAPTER-GR MTD-14012
...
31
BAFFLE-CHU MTD-14235
...
32
CHUTE DOOR MTD-13407
...
33
TORSION SPRING MTD-732-0346
...
34
HINGE PIN MTD-738-0386
...
36
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
37
Sems Nut 1/4-20 Thd. MTD-712-0271
...
39
Flat Wash. .285" I.D. MTD-736-0211
...
41
CATCHER LOWER FRAME MTD-14582
...
42
CATCHER LOCK LEVER W/ KNOB MTD-14845
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Cap MTD-726-0100
...
45
ROLLER-PLASTIC MTD-731-0430
...
46
PLUG MTD-731-0564
...
47
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
49
Shoulder Bolt MTD-938-0155
...
50
Handle Bracket-R.H. MTD-14592
...
51
22" Deck Ass'y. MTD-16116
...
52
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
53
Axle Bolt MTD-NA
...
xx
Axle Bolt MTD-738-0102
...
xx
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
54
Belleville Washer MTD-736-0105
...
55
Grip MTD-718-0145
...
56
CONTROL HANDIE ASS'Y.-L.H. MTD-14321
...
xx
BAIL (LH) MTD-731-0609
...
57
Hex Bolt 3/8-24 x 2.25" MTD-710-0331
...
58
Hex Nut 5/16-24 Thd. MTD-912-3057
...
59
Blade Adapter Kit MTD-753-0348
...
60
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
61
Hex Bolt 5/16-24 x 1.00" MTD-710-0888
...
62
Lock Wash. 5/16" I.D. MTD-936-0119
...
63
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
64
HEX NUT 5/16-18 MTD-712-3010
...
65
Lock Wash. 5/16" I.D. MTD-936-0119
...
66
OPE GUIDE BOLT MTD-710-0842
...
67
RIVET MTD-728-0171
...
68
BRACKET-CA MTD-14924
...
69
KIT-CLUTCH CONTROL MTD-753-0362
...
70
Engine Mount Cover MTD-13773
...
xx
Hex AB-Tap Scr. #8 x .38" MTD-710-0227
...
73
CONTROL CABLE MTD-946-0477A
...
79
Cotter Pin 5/16 MTD-714-0104
...
80
Cable Tie MTD-725-0157
...
81
Cable Tie MTD-725-0157
...
83
Truss Mach. Scr. #12 x 1.5" MTD-710-0796
...
84
Self-Tap Scr. #10 x 1.0" Lg. MTD-710-0841
...
86
PANEL MTD-731-0817
...
87
CONROL DISC PIN MTD-731-0524
...
88
CIUTCH PANEL HALF MTD-731-0816
...
89
Throttle Control Lever MTD-931-0972
...
90
HALF COVER MTD-731-0617A
...
91
Control Cover Half-Lower MTD-753-0833
...
92
CABLE MOUNTING CAP MTD-731-0619
...
93
Drive Control MTD-731-0620A
...
94
Upper Handle MTD-749-0437
...
95
CABLE CLAMP MTD-12894
...
96
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
97
CLAMP-CONDUIT MTD-751-0369
...
98
FRAME-CATCHER-UPR MTD-749-0278
...
99
Grass Bag (without Flip Top) MTD-746-0171
...
xx
GRASS BAA MTD-764-0170
...
100
Shoulder Bolt MTD-738-0430
...
102
Jam Nut, 3/8-16 MTD-912-3008
...
103
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
104
CABLE-CLUTCH MTD-746-0463
...
107
Hex Self-Tap Screw 1/4-20 x.75" Lg. MTD-710-0642
...
110
Instruction Label-Handle MTD-777-5776
...
111
LABEL - THROTTLE CONTROL MTD-777-5773
...
112
CONTROL HOUSING COMP. MTD-753-0430
...
xx
Hardware Pack MTD-8362-000-6

Parts

...
...

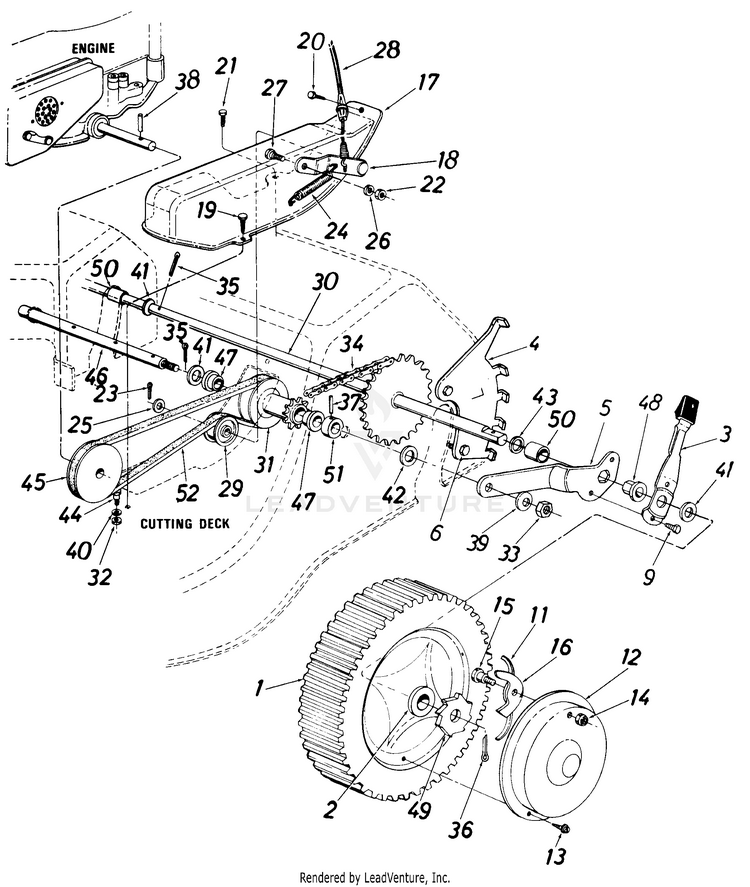

1
GEAR TREAD (8 x 1.75") MTD-734-1411
...
2
BALL BEARING MTD-941-0180
...
3
LEVER-SPRING MTD-732-0467
...
4
INDEX PLATE ASS'Y. L.H. MTD-16097
...
xx
Index Plate-R.H. (Not Shown) MTD-16098
...
5
BRACKET-PI MTD-16099
...
xx
BRACKET-PI (Not Shown) MTD-16100
...
6
SCREW 1/4-14 x .625 MTD-710-0892
...
9
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
11
Spring - Nylon MTD-10622B
...
12
HUB CAP MTD-10647
...
13
SCREW #12-14 x .500 MTD-710-0748
...
14
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
15
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
16
PAWL - (LH) MTD-948-0188B
...
17
Belt Cover MTD-12309
...
18
BRACKET AS MTD-13415
...
19
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
20
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
21
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
22
HEX NUT 1/4-20 MTD-912-0287
...
23
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
24
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
25
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
26
L-Wash. 1/4" I.D. MTD-936-0329
...
27
SHOULDER SCREW MTD-938-0255
...
28
CABLE-CLUTCH MTD-746-0463
...
29
FLAT IDLER PULLEY MTD-756-0360
...
30
SHAFT ASSEMBLY MTD-13414
...
31
PULLEY W/S MTD-756-0191
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
#48 CHAIN 1/2 PITCH x 31 MTD-913-0144
...
xx
#48 MASTER LINK MTD-713-0122
...
35
Cotter Pin 3/32" Dia. x 1.00" Lg.* MTD-714-0111
...
36
Cotter Pin 1/8" Dia. x 1.00" Lg.* MTD-714-0115
...
37
Spring Pin Spir. 3/16" Dia. x 1.00" Lg. MTD-715-0120
...
38
SPIROL PIN MTD-715-0144
...
39
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
42
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
43
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326
...
44
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
45
PULLEY MTD-756-0384
...
46
SHAFT-PULLEY MTD-738-0471
...
47
Flange Brg. .506" I.D. Plastic MTD-741-0248
...
48
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
49
RACHET-WHEEL MTD-748-0187
...
50
SPACER MTD-750-0190
...
51
SPACER MTD-750-0387
...
52
V-BELT 1/2 x 33 MTD-754-0252
...
...
...
...
...
