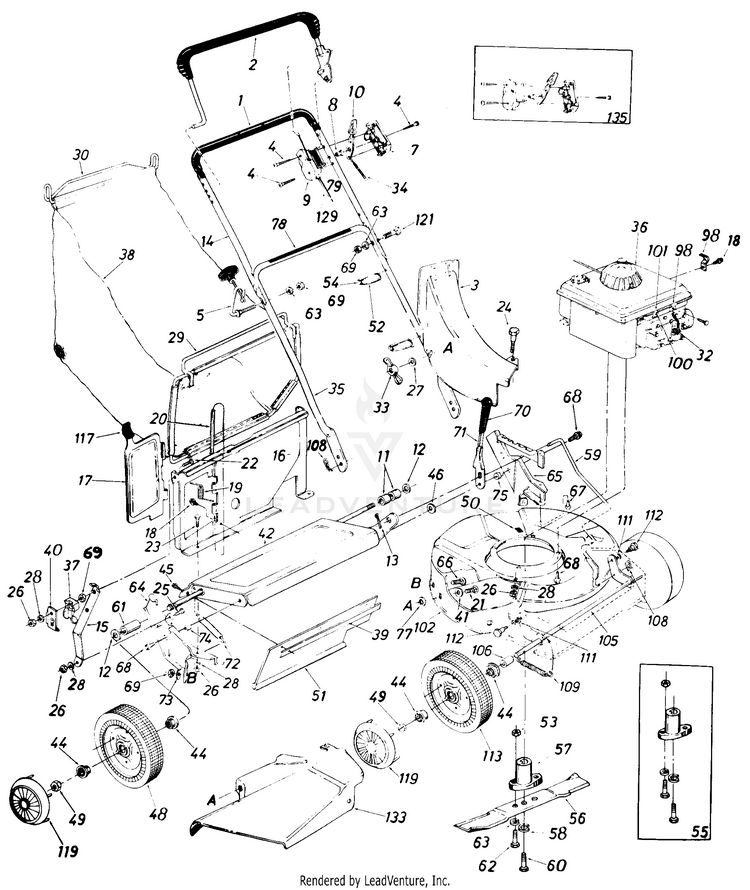

Builders Best 116-112-073 Push Walk-Behind Mower

Model: Builders Best 116-112-073

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Grip MTD-718-0145
...
2
CONTROL HANDIE ASS'Y.-L.H. MTD-14321
...
3
CHUTE ASSY-TOP DISCH Top Discharge Model 112 Only MTD-731-0733
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
5
OPE GUIDE BOLT MTD-710-0842
...
7
PANEL MTD-731-0817
...
8
CONROL DISC PIN MTD-731-0524
...
9
CIUTCH PANEL HALF MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
SLEEVE MTD-711-0500
...
12
Fl-Wash. 510 I.D. x .75" MTD-736-0108
...
13
Cotter Pin 3/32" Dia. x .75"* MTD-714-0507
...
14
UPPER HANDLE MTD-749-0438D-0637
...
15
Panel Support Brkt. Top Discharge Model 112 Only MTD-16541
...
16
PANEL ASSY-CATCHER Top Discharge Model 112 Only MTD-16140
...
17
Top Door Top Discharge Model 112 Only MTD-16145
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Torsion Spring Top Discharge Model 112 Only MTD-732-0483A
...
20
ROD Top Discharge Model 112 Only MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x 1.0" Lg. Top Discharge Model 112 Only MTD-710-0166A
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704
...
25
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
26
HEX NUT 1/4-20 MTD-912-0287
...
27
Fl-Wash. .280" I.D. x .620" MTD-736-0463
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
FRAME-FRONT Top Discharge Model 112 Only MTD-747-0494
...
30
HANDLE-GRASSCATCHE Top Discharge Model 112 Only MTD-747-0495
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
WING NUT 1/4-20 MTD-712-0109
...
34
Throttle Wire-58" Lg. MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
37
Rope Guide Top Discharge Model 112 Only MTD-719-0279
...
38
21" Top Discharge Grass Bag Top Discharge Model 112 Only MTD-764-0212
...
39
STRIP-RETA MTD-14835
...
40
CLIP-SPRING RETAINER Top Discharge Model 112 Only MTD-732-0528
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
AXLE ASSEMBLY- MTD-16131
...
44
BALL BEARING MTD-941-0180
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Fl-Wash. .38" I.D. x 1.0" MTD-736-0258
...
48
WHEEL ASSEMBLY W/TIRE MTD-734-0924
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
50
PLUG MTD-731-0564
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0671
...
52
Cable Tie MTD-725-0157
...
53
Hex Nut 5/16-24 Thd. MTD-912-3057
...
54
Cable Tie MTD-725-0157
...
55
Blade Adapter Kit MTD-753-0348
...
56
21" BLADE MTD-742-0289
...
57
Blade Adapter MTD-719-0262
...
58
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
59
ROD-HGT ADJ MTD-747-0496
...
60
Hex Bolt 3/8-24 x .25" Lg. (Grade 5) MTD-710-0331
...
61
Spacer .513" I.D. x .703" O.D. MTD-748-0190
...
62
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
BRACKET ASSEMBLY (RH) MTD-16136
...
65
BRACKET ASSEMBLY (LH) MTD-16137
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-1 8 MTD-710-0603
...
68
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
GRIP MTD-720-0143
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0473B
...
72
EXTENSION SPRING MTD-732-0481
...
73
Bell-Wash. .344" I.D. x .88" O.D. MTD-736-0242
...
74
Spacer .385" I.D. x .502" O.D. x .270" Lg. MTD-750-0526
...
75
SHOULDER SPACER MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
78
Instruction Label MTD-777-5776
...
79
LABEL - THROTTLE CONTROL MTD-777-5773
...
98
CABLE CLAMP MTD-12894
...
100
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
101
CASING CLAMP MTD-751-0442
...
102
21"-Deck Ass'y. MTD-16125
...
105
Front Axle Ass'y. MTD-10662
...
106
SLEEVE MTD-711-0313
...
108
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
109
EXTENSION SPRING MTD-732-0482
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW .623 X MTD-738-0615
...
113
WHEEL ASSEMBLY W/TIRE MTD-734-0922
...
117
CUP-DOOR Top Discharge Model 112 Only MTD-720-0208
...
119
HUB CAP-BLACK MTD-731-0354
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
129
CONTROL CABLE MTD-946-0477A
...
133
DEFLECTOR ASSY MTD-16559
...
135
CONTROL HOUSING COMP. MTD-753-0430
...
xx
Hardware Pack MTD-8112-000-6
...
...
...
...
...
