Builders Best 116-062-073 Push Walk-Behind Mower

Model: Builders Best 116-062-073

Save
 Part Not Listed?Part Not Listed?
product name

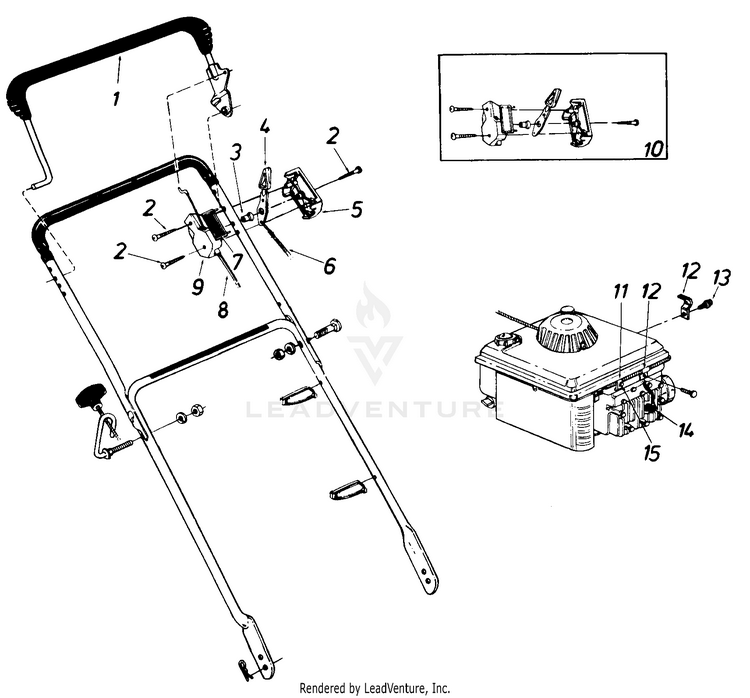

Changes

...
...
1
CONTROL HANDIE ASS'Y.-L.H. MTD-14321
...
2
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
3
CONROL DISC PIN MTD-731-0524
...
4
Throttle Control Lever MTD-931-0972
...
5
PANEL MTD-731-0817
...
6
Throttle Wire 55" Lg. MTD-946-0671A
...
7
Control Label MTD-777-5774
...
8
CONTROL CABLE MTD-946-0477A
...
9
CIUTCH PANEL HALF MTD-731-0816
...
10
CONTROL HOUSING COMP. MTD-753-0430
...
11
CASING CLAMP MTD-751-0442
...
12
CABLE CLAMP MTD-12894
...
13
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
14
INSULATOR-SPARK PLUG MTD-735-0639
...
15
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651

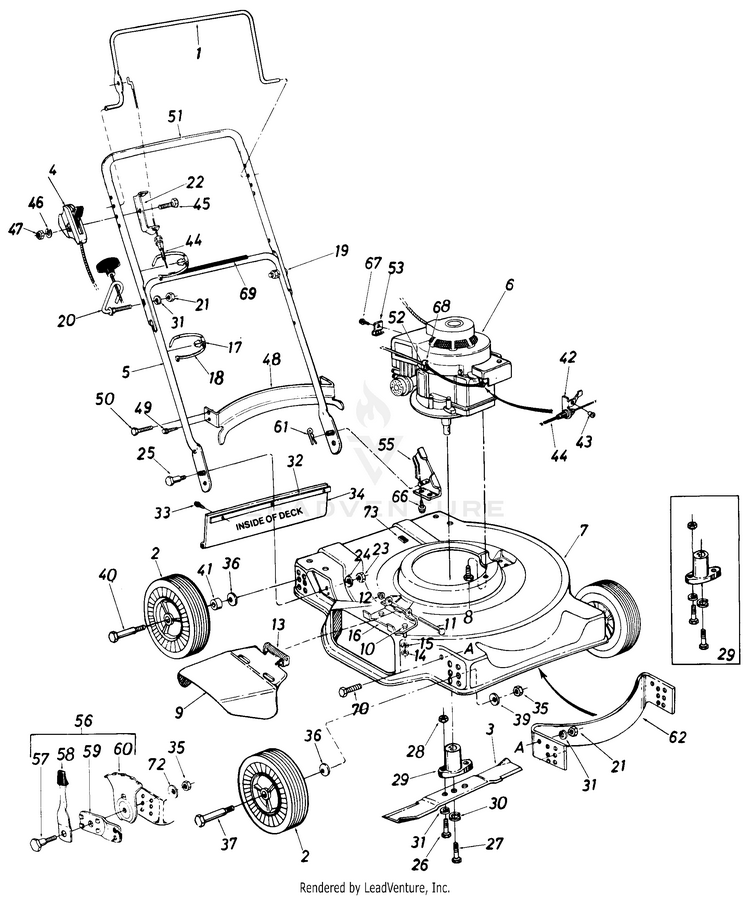

Parts

...
...
1
HANDLE-CONTROL MTD-747-0500
...
2
7 x 1.5-PLASTIC RIM MTD-734-0840
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1176
...
xx
WHEEL ASSEMBLY MTD-734-0841
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1177
...
3
22" BLADE MTD-942-0125B
...
4
Throttle Control Ass'y. Comp. MTD-946-0645A
...
5
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
6
Engine MTD-NA
...
7
22" Deck Assy. Models 060 and 061 MTD-16527
...
xx
22" Deck Assy. Models 062 and 063 MTD-16525
...
8
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
9
CHUTE DEFLECTOR MTD-931-1034B
...
10
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
11
PIVOT PIN MTD-711-0555
...
12
PUSH NUT MTD-726-0106
...
13
TORSION SPRING MTD-732-0253
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
ADAPTER PLATE MTD-11130
...
17
Cable Tie MTD-725-0157
...
18
Cable Tie MTD-725-0157
...
19
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
20
OPE GUIDE BOLT MTD-710-0842
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
BRACKET-CA MTD-16201
...
23
Hex Ins. L-Nut 5/16-18 Thd. Models 060 and 061 MTD-712-0429
...
24
Bell-Wash. .345" I.D. x .88" O.D. Models 060 and 061 MTD-736-0242
...
25
Shld. Bolt .437" Dia. x .268 Models 060 and 061 MTD-738-0296
...
26
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special MTD-710-0888
...
27
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
28
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
Blade Adapter Kit MTD-753-0348
...
30
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
RETAINER STRIP MTD-14846
...
33
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
34
FLAP ASSEMBLY MTD-731-0794
...
35
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
36
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
37
Front Axle Bolt Models 060 and 061 MTD-738-0213
...
xx
Front Axle Bolt Models 062 and 063 MTD-738-0102
...
39
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
40
SHOULDER SCREW .498 DI Models 060 and 061 MTD-738-0509
...
xx
Rear Axle Bolt Models 062 and 063 MTD-738-0102
...
41
Spacer .511 I.D. x .70" O.D. Models 060 and 061 MTD-750-0515
...
42
BRACKET-CA MTD-14924
...
43
RIVET MTD-728-0171
...
44
Control Cable - 49" (B&S) MTD-946-0552
...
xx
Control Cable 39" (Tec.) MTD-946-0550
...
45
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
46
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
47
Hex Nut 1/4-28 Thd. MTD-712-0138
...
48
BAFFLE-20 MTD-16414
...
49
Truss Mach. B-Tap Scr. #10 x .50" Lg. MTD-710-0351
...
50
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
51
UPPER HANDLE MTD-749-0536
...
xx
UPPER HANDLE MTD-749-0538
...
52
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
53
CLAMP-CONDUIT MTD-751-0369
...
55
BRACKET AS Models 062 and 063 MTD-12935
...
xx
BRACKET ASSY-HDLE (Not Shown) (Models 062 and 063) MTD-12936
...
56
Height Adj. Ass'y. Comp. (R.H.) Models 062 and 063 MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) (Models 062 and 063) MTD-753-06761
...
57
Shoulder Bolt .50" Dia. Models 062 and 063 MTD-738-0507B
...
58
Front Spring Lever Models 062 and 063 MTD-94832
...
59
Pivot Bar Models 062 and 063 MTD-15262B
...
60
Height Adjustment Plate Models 062 and 063 MTD-787-01290A
...
61
Hairpin Cotter Models 062 and 063 MTD-714-0104
...
62
Front Baffle Optional Part MTD-16328
...
66
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. Models 062 and 063 MTD-710-0603
...
67
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
68
CABLE CLAMP MTD-12894
...
69
Instruction Label-Handle MTD-777-5776
...
70
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
72
BELL WASHER Models 062 and 063 MTD-936-0356
...
73
PLUG MTD-731-0564
...
xx
Hardware Pack Models 060 and 061 MTD-8060-000-6
...
xx
Hardware Pack Models 062 and 063 MTD-8062-000-6
...
...
...
...
...
