Brute CL25BL 41AJTB-C767 41AJTB-C767 CL25BL Attachment

Model: CL25BL 41AJTB-C767 41AJTB-C767 CL25BL

Save
 Part Not Listed?Part Not Listed?
product name

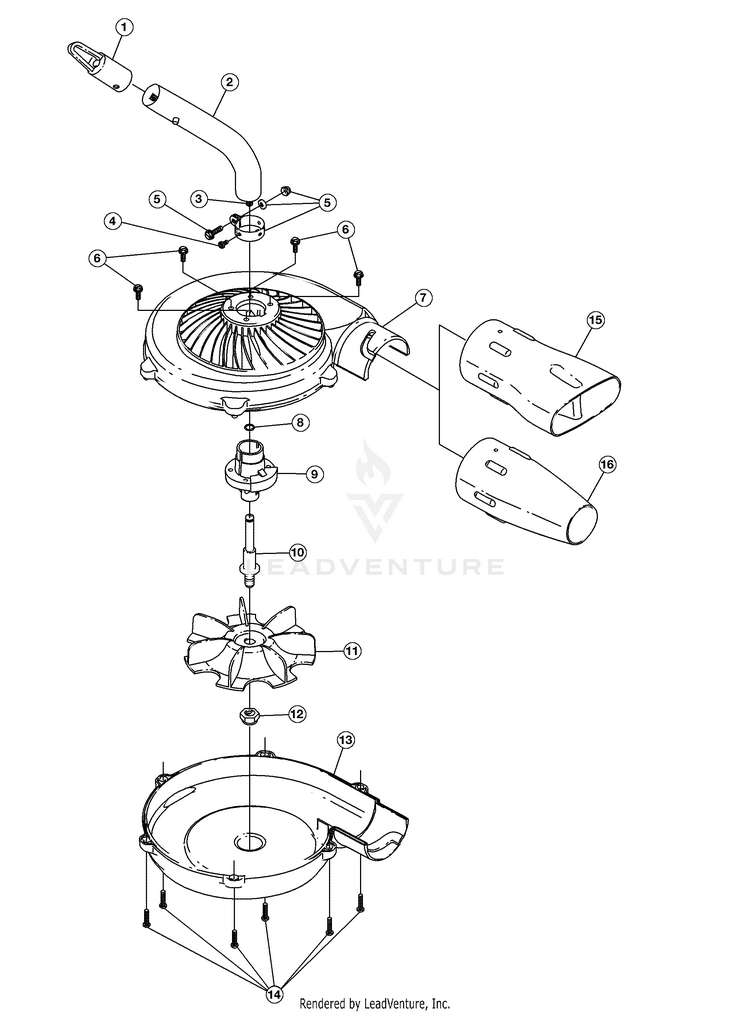

General Assembly

...
...
1
Hanger MTD-731-08926
...
2
Drive Shaft Housing Assembly MTD-753-1218
...
3
Drive Shaft Assembly MTD-791-181852
...
4
Anti-Rotation Screw MTD-791-145569
...
5
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
6
SCREW, 10-24X1/2 HEX MTD-791-181853
...
7
HOUSING, UPPER BLOWER AT MTD-791-181996
...
8
Palnut MTD-753-04348
...
9
ASSEMBLY, BUSHING HOUSING MTD-791-181636
...
10
SHAFT, DRIVE BLOWER MTD-791-181634
...
11
IMPELLER, BLOWER A MTD-791-181635
...
12
NUT, 7/16" THD, 3/ MTD-791-181637
...
13
HOUSING, LOWER BLOWER AT MTD-791-181997
...
14
Mounting Screw MTD-791-181345
...
15
NOZZLE, SPREADER MTD-791-181632
...
16
NOZZLE, CONCENTRAT MTD-791-181633
...
...
...
...
...
