Brute 13AL795T057 (2010) Lawn Tractor

Model: 13AL795T057 (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

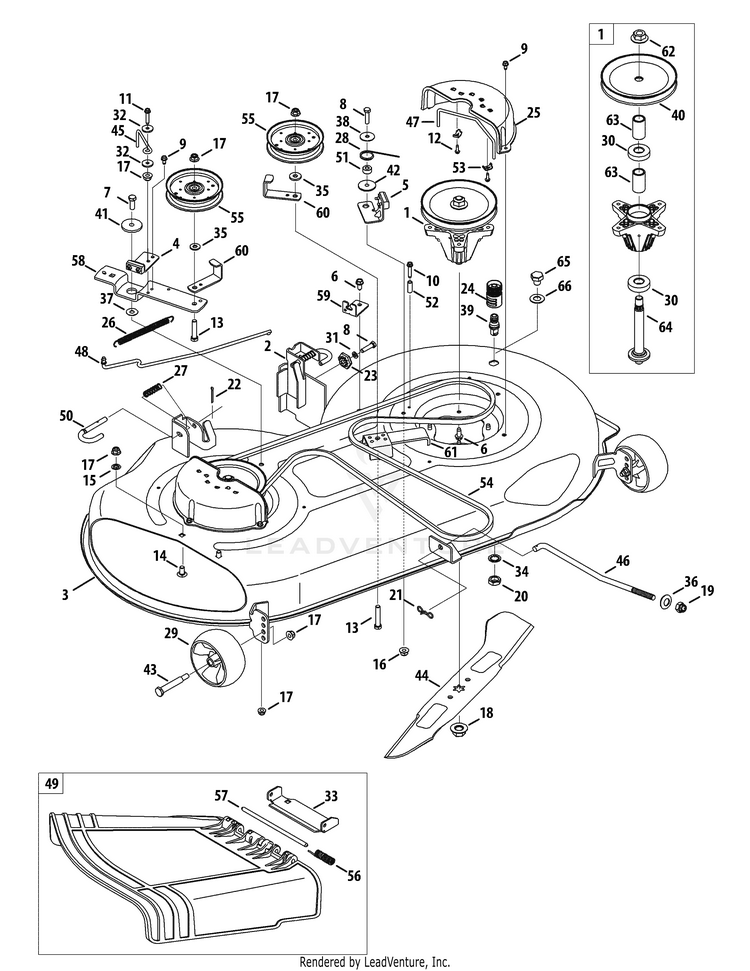

Mower Deck 46-Inch

...
...
1
Deck Spindles MTD-918-04865A
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
46" DECK SHELL (POWDER BLACK) MTD-983-04578B-0637
...
3
46" DECK SHELL MTD-983-04578B
...
4
Brake Assembly, Deck, 42/46 MTD-983-04511
...
5
Brake Assembly, Deck, 46" MTD-983-04525
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex Screw, 3/8-16, 1.00, Gr5, Std MTD-710-0514
...
8
Hex Screw, 5/16-18, 1.25, Gr5, Std MTD-710-0528
...
9
Screw, Self-tapping, 1/4-20, 0.500 MTD-710-0599
...
10
Screw, Self-tapping, 1/4-20, 1.500 MTD-710-0778
...
11
Screw, Self-tapping, 1/4-20, 1.250 MTD-710-0809
...
12
Special Screw, #10-16 x .625 MTD-710-04669
...
13
Hex Screw, 3/8-16, 2.00, Gr5, Std MTD-710-3144
...
14
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
15
Nut, Push, 3/8 MTD-712-0229
...
16
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
17
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
18
HEX NUT MTD-712-0417A
...
19
Nut, Lock, 1/2-13 MTD-712-04243
...
20
Nut, Hex, M16-1.5 MTD-712-0641
...
21
Bow Tie Cotter Pin MTD-714-04043
...
22
Cotter Pin 1/8" Dia. MTD-714-0470
...
23
Gear, Deck Adjustment MTD-917-04074
...
24
Adapter, Water Port MTD-921-04041
...
25
Belt Cover, Universal MTD-731-06496
...
26
EXTENSION SPRING MTD-932-0384
...
27
Spring, Compression, .535 x 1.751 MTD-732-04652
...
28
TORSION SPRING MTD-732-04727
...
29
Wheel, Deck, 5.0 Dia Ball MTD-734-04155
...
30
BALL BEARING MTD-741P0919B
...
31
Washer, Lock, 5/16, Regular Duty MTD-936-0119
...
32
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
33
CHUTE BRACKET MTD-783-06074A
...
34
Washer, Lock, 5/8, Int Tooth MTD-736-0225
...
35
Washer, Flat, .385 x .870 x .092 MTD-736-0262
...
36
LIFT PIVOT CUP MTD-748-04069A
...
37
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
38
Washer, Flat, .330 x 1.25 x .06, Ht MTD-736-0362
...
39
Deck Port, Water MTD-737-04003D
...
40
Pulley, Deck, 6.93 Dia MTD-756-04356
...
41
Shoulder Spacer .884 x .190 MTD-738-04162C
...
42
Spacer, Shoulder, .5000 x .1475 MTD-738-04166
...
43
Bolt, Shoulder, .496 x 2.50, 3/8-16 MTD-938-3056
...
44
23.25" BLADE (2N1) (STAR) MTD-942-04290A
...
45
Rod, Belt Keepr, 42 Idler MTD-747-04530
...
46
DECK FRONT LIFT ROD MTD-747-05141B
...
47
Rod, Keeper, Belt MTD-747-05011
...
48
Rod, Control, Brake 46" MTD-747-05052A
...
49
CHUTE ASSEMBLY MTD-631-05191A
...
50
Rod, Deck Release MTD-747-1116
...
51
Spacer, .315 x .750 x .375 MTD-750-0258
...
52
Spacer, .260 x .375 x 1.030 MTD-750-0566A
...
53
Clamp, Casing MTD-751B221535
...
54
Belt, V-Type, A-Sec MTD-954-04219
...
55
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
56
Spring, Torsion, .44 I.D. x 2.0 MTD-732-04372
...
57
Hinge Pin MTD-711-04847B
...
58
Bracket, Idler, Pivot, 46 MTD-783-05946
...
59
Bracket, Cable, Deck Engagement MTD-783-06243-0637
...
60
Belt Pulley Guard MTD-783-06368A-0637
...
61
Bracket, Support, Deck Idler MTD-783-06643-0637
...
62
HEX NUT MTD-712-0417A
...
63
Spacer, .792 x 1.060 x 1.860 Lg MTD-750-04936
...
64
Shaft, Spindle, 6.11 Lg. MTD-738-1186A
...
65
Wash, Flat, .64 X 1.24 X .06, Ht MTD-736-0187
...
66
Plug, Bolt, M16 X 1.5 MTD-738-04146
...
...
...
...
...
