Brute 13AL795T057 (2010) Lawn Tractor

Model: 13AL795T057 (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

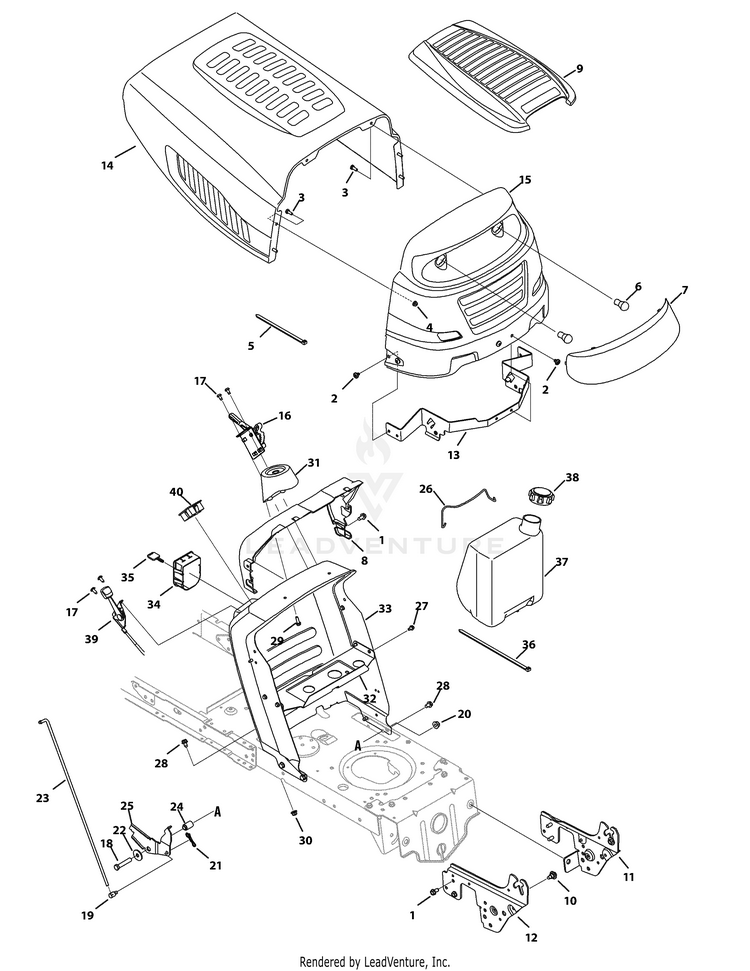

Hood, Grille & Dash

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Screw 5/16-18 x .375 MTD-710-04593
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
Flanglock Nut 1/4-20 MTD-712-04064
...
5
Cable Tie MTD-725-0157
...
6
Miniature lamp 12V socket MTD-925-0963
...
7
GRILLE LENS 1 STYLE MTD-731P04949A
...
8
Dash Collar MTD-731-05078C
...
9
Hood cover If Equipped MTD-731-05522A
...
10
Shoulder Screw .43 x .29 MTD-738-04091A
...
11
Suppport Bracket LH MTD-783-05327B-0637
...
12
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
13
Hood pivot bracket MTD-783-05454-0637
...
14
Hood - 5 Style - Grey MTD-783-05683-0662
...
14
Hood - 5 Style - Black Jack MTD-783-05683-0691
...
14
HOOD-1 STYLE (MTD RED) MTD-783-05684-0638
...
15
Grill MTD-783-05685A-0662
...
15
Grill MTD-783-05685A-0691
...
15
Grill MTD-783-05685A-0638
...
16
Hydro Control Assembly MTD-983-04226
...
17
SCREW 1/4-20 x .500 MTD-710-04483
...
18
Hex Screw 3/8-16 x 2.00 MTD-710-3144
...
19
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
20
Flang lock Nut 3/8-16 MTD-712-04065
...
21
Cotter Pin, Bow Tie MTD-714-04040
...
22
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133
...
23
Control Rod, Speed Selector MTD-747-04430
...
24
Flange Spacer MTD-750-04465B
...
25
SPEED TRANSMISSION LATCH MTD-783-04862
...
26
BATTERY ROD ASSEMBLY MTD-747-04744A
...
27
Hex Screw Washer 1/4-20 x .500 MTD-710-0599
...
28
Screw 5/16-18 x .625 MTD-710-0604A
...
29
Hex Screw 1/4-15 x .750 MTD-710-0895
...
30
Flanglock Nut 5/16-18 MTD-712-04063
...
31
Support Shaft MTD-731-04945
...
32
Gas Tank Support Bracket MTD-783-04584B-0637
...
33
DASH-LT-5 RMC (BLACK JACK) MTD-783-04892B-0691
...
33
DASH-LT-5 RMC (POWDER BLACK) MTD-783-04892B-0637
...
33
DASH (POWDER BLACK) MTD-983-04889C-0637
...
34
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
35
Key MTD-925-1745A
...
36
Cable Tie MTD-726-0230
...
37
FUEL TANK 1.36 GAL MTD-751-0555D
...
38
TANK CAP MTD-751-0603B
...
39
Throttle/Choke Control Cable MTD-746-04364
...
40
Ammeter Monitor Indicator If Equipped MTD-925-04156
...
xx
MAIN HARNESS (RMC/AM/ACDC/BULB) Not Shown MTD-725P04432P
...
xx
MAIN HARNESS (RMC/AM/ACDC/BULB) Not Shown MTD-725P04432P
...
xx
Harness, Jmpr., Ammeter Not Shown MTD-725-04469
...
...
...
...
...
