Bolens BL100 41BD100G965 41BD100G965 BL100 Gas String Trimmer

Model: BL100 41BD100G965 41BD100G965 BL100

Save
 Part Not Listed?Part Not Listed?
product name

Engine Assembly

...
...
1
Air Cleaner Cover Assembly (Incl. Ref. No. 2 & 33) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
PLATE ASSEMBLY:CHOKE:WV (Incl. Ref. No. 5) MTD-753-04419
...
7
Carburetor Assembly (Incl. Ref. No. 8 & 18) MTD-753-04408
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
Primer & Hose Assembly MTD-791-683974B
...
11
CARBURETOR MOUNT ASSEMBLY (Incl. Ref. No. 9, 12 & 13) MTD-753-1196
...
12
REED VALVE ASSEMBLY MTD-791-684451
...
13
O-Ring MTD-721-04163
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:F (Incl. Ref. No. 16-18) MTD-753-04285
...
16
Fuel Cap Assembly MTD-791-182612
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-791-682039
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
Flywheel Assembly MTD-753-05240
...
21
Screw, 10-9 x .50 MTD-1755
...
22
NUT, SQUARE DRIVE MTD-791-610303
...
23
RET ASSEMBLY:SPG ASSIST (Incl. Ref. No. 21 & 27) MTD-753-04928
...
24
Palnut MTD-753-04288
...
25
START ASSEMBLY:S/A:PUL (Incl. Ref. No. 24) MTD-753-04823
...
26
Recoil Spring MTD-753-04286
...
27
RET:EYELET:S/A MTD-753-04824
...
28
Pull Handle MTD-631-04164B
...
29
Rope Guide MTD-791-611061
...
30
Rope MTD-791-613103
...
31
Switch Assembly MTD-791-182405
...
32
SCREW:10-32X.5 MTD-1964
...
33
Cover Screw MTD-791-181345
...
34
SCREW:8-18 MTD-753-04466
...
35
CLAMP ASSEMBLY (Incl. Ref. No. 34) MTD-753-05056
...
36
STARTER HOUSING ASSEMBLY Y (Incl. Ref. No. 21, 23-35 & 38) MTD-753-05764
...
37
EXTENSION, SHROUD (Incl. Ref. No. 33) MTD-791-182401
...
38
LEAD-WIRE 4" BK MTD-753-04290
...
39
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
40
TAB, GROUND MTD-791-611063
...
41
Spark Plug MTD-791-610311B
...
42
MUFFLER ASM CAT NLAUD (Incl. Ref. No. 43, 44 & Spark Arrestor) MTD-753-05169
...
43
Exhaust Gasket MTD-791-180980
...
44
Muffler Mounting Bolts MTD-710-04188A
...
45
Cylinder Assembly (Includes 47 & 48) MTD-753-04814
...
46
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
47
Cylinder Gasket MTD-753-04182
...
48
Cylinder Bolt MTD-791-182723
...
xx
Piston Ring Not shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:N/C:-9 (Incl. Crankcase, Ref No. 9, 20, 22, 41 & 45-48), Not shown MTD-753-04826

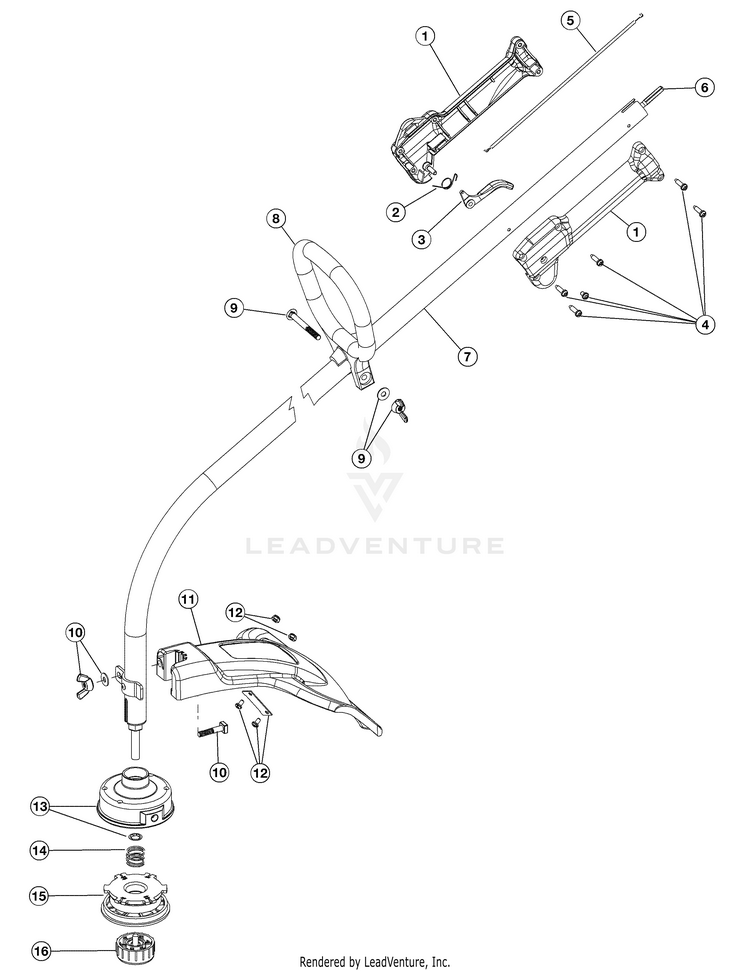

General Assembly BL100

...
...
1
THROTTLE GRIP ASSEMBLY WOOP (Incl. Ref. No. 2-4) MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
SCREW ASSEMBLY:THROT HOUSING MTD-753-04917
...
5
Throttle Cable MTD-753-04901
...
6
Flexible Drive Shaft MTD-753-04280
...
7
DRIVE SHAFT HOUSING ASSEMBLY:OPP MTD-753-04921
...
8
D-HANDLE AND HARDWARE (Incl. Ref. No. 9) MTD-791-153064
...
9
D-Handle Hardware MTD-791-181587
...
10
Guard Mounting Hardware MTD-753-04282
...
11
Guard Assembly (Incl. Ref. No. 12) MTD-753-04283
...
12
Blade Assembly MTD-791-180553
...
13
OUTER REEL W/RETAINING RING MTD-753-04284
...
14
Spring MTD-791-610317B
...
15
Inner Reel MTD-753-1155
...
16
Bump Knob MTD-791-153066B
...
xx
DRIVE SHAFT HOUSING ASSEMBLY (Incl. Ref. No. 6 & 13) MTD-753-04281
...
xx
Inner Reel & Line MTD-791-153577B
...
...
...
...
...
