Bolens BL100 41AD100G763 41AD100G763 BL100 Gas String Trimmer

Model: BL100 41AD100G763 41AD100G763 BL100

Save
 Part Not Listed?Part Not Listed?
product name

Boom And Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2-4) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
SET SCREW MTD-791-145888
...
5
Throttle Cable MTD-791-182068
...
6
Flexible Drive Shaft MTD-753-04280
...
7
DRIVE SHAFT HOUSING ASSEMBLY (includes 6 & 13) MTD-753-04281
...
8
D-HANDLE AND HARDWARE (includes 9) MTD-791-153064
...
9
D-Handle Hardware MTD-791-181587
...
10
Guard Mounting Hardware MTD-753-04282
...
11
Guard MTD-753-04283
...
12
Blade Assembly MTD-791-180553
...
13
OUTER REEL W/RETAINING RING MTD-753-04284
...
14
Spring MTD-791-610317B
...
15
Inner Reel MTD-753-1155
...
16
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-791-153577B
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B

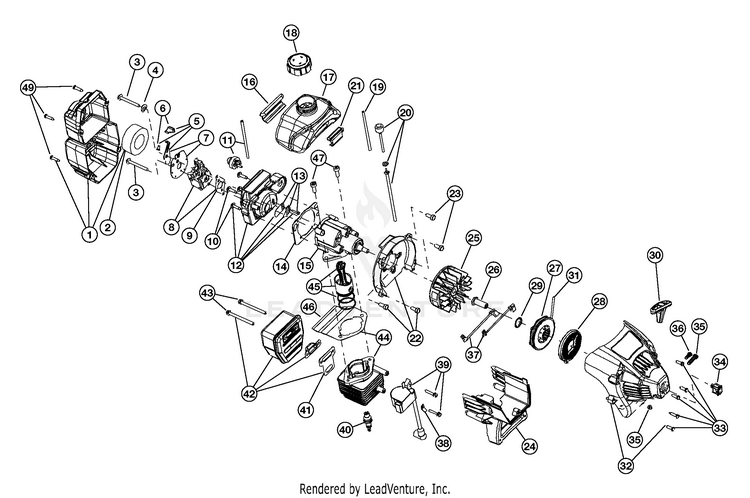

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 49) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 3-6) MTD-753-04419
...
8
CARBURETOR ASSEMBLY (includes 9 & 20) MTD-753-04106
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 13 & 14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE ASSEMBLY:NON-CL: (includes 10 & 23) MTD-753-04272
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:F (includes 18-20) MTD-753-04285
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
NUT, SQUARE DRIVE MTD-791-610303
...
27
PULLEY:START MTD-753-1199
...
28
Recoil Spring MTD-753-04286
...
29
Pulley Retainer MTD-753-04288
...
30
Pull Handle MTD-631-04164B
...
31
Rope MTD-791-613103
...
32
Starter Housing Assembly (includes 22 & 24-36) (includes 27-34, 37) MTD-753-05422
...
33
Housing Screws MTD-791-181501
...
34
On/Off Switch MTD-791-182405
...
35
SCREW:CLMPNG W/NUT MTD-753-04291
...
36
Anti-Rotation Screw MTD-791-182519
...
37
LEAD-WIRE 4" BK MTD-753-04290
...
38
TAB, GROUND MTD-791-182800
...
39
Module Assembly MTD-753-1205
...
40
Spark Plug MTD-791-610311B
...
41
Muffler Gasket MTD-753-04619
...
42
MUFFLER ASM CAT NLAUD (includes 41, 43 & 48) MTD-753-05169
...
43
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
44
Cylinder Assembly (includes 51 & 52) (includes 46) MTD-753-04814
...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
46
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
47
Cylinder Bolt MTD-791-182723
...
48
SCRN:SPK ARST:A-31 MTD-791-182747
...
49
Cover Screws MTD-791-181345
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180602
...
xx
ASSEMBLY, CHOKE Not Shown MTD-791-682052
...
xx
Piston Ring Set Not Shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:NC:KEYL (includes 10, 15, 23, 40, 44-47); Not Shown MTD-753-04173
...
...
...
...
...
