Bolens 31A-040-163 (2004) Snow Thrower

Model: 31A-040-163 (2004)

Save
 Part Not Listed?Part Not Listed?
product name

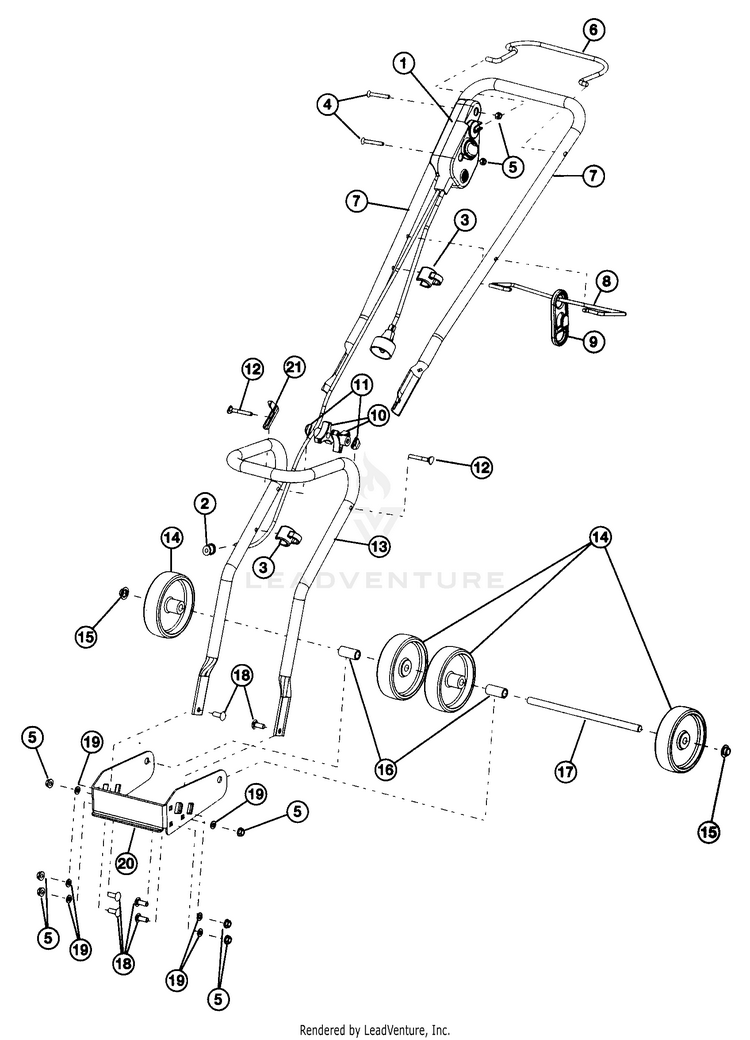

Handle Parts

...
...
1
SWITCH ASSEMBLY:SNOWTHROWER MTD-753-04427
...
2
Bushing MTD-753-04428
...
3
Cable Guide MTD-731-1820
...
4
Screw MTD-753-04430
...
5
Hex Lock Nut MTD-712-0324
...
6
BAIL:ATCH:WR MTD-753-04432
...
7
HANDLE:UPR MTD-753-04433
...
8
GDE:ROD MTD-753-04434
...
9
CORD RESTRAINT MTD-726-0368
...
10
Knob MTD-791-182677
...
11
Saddle Wash. .32" I.D. MTD-736-0451
...
12
Bolt MTD-791-182899
...
13
LOWER HANDLE MTD-753-04436
...
14
Wheel MTD-753-04437
...
15
Push Cap MTD-726-0299
...
16
SPACER:.75 OD x .50 MTD-753-04438
...
17
AXLE:ATCH: MTD-753-04439
...
18
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
19
WASH, FLAT SPECIAL MTD-4150
...
20
BRACKET:MNT:WHEEL MTD-753-04440
...
21
BRACKET:MT:CABLE MTD-753-04441

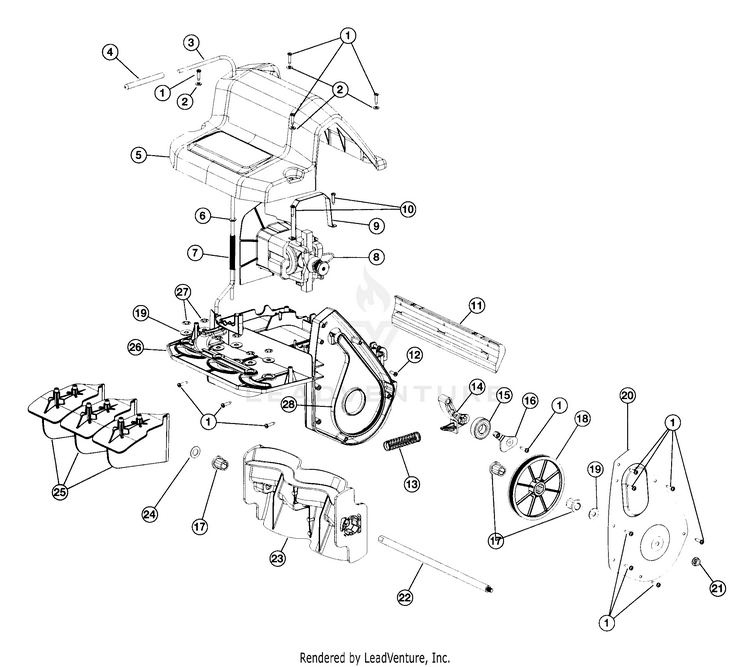

Motor / Thrower Parts

...
...
1
Screw MTD-791-181345
...
2
Washer MTD-791-182409
...
3
VANE CONTROL (includes 4) MTD-791-00012
...
4
FOAM GRIP MTD-791-00001
...
5
COVER:SNOW THRWR MTD-753-04416
...
6
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
7
SPRING:CONT:VANE:THRW MTD-791-00002
...
8
MOTOR ASSEMBLY MTD-753-04421
...
9
STRAP:MTR MTD-753-04422
...
10
SCREW:10-32X.5 MTD-1964
...
11
Scraper MTD-791-00010
...
12
SCREW, #10-24X.50 M MTD-791-181858
...
13
SPRING MTD-791-00015
...
14
IDLER ARM MTD-791-00016
...
15
BALL BEARING MTD-941-0600
...
16
KEEPER MTD-791-00017
...
17
Hex Flange Brg. .504" I.D. MTD-741-0503
...
18
DRIVEN PULLEY MTD-791-00018
...
19
Fl-Wash. .344" I.D. MTD-736-0159
...
20
COVER:DR:S MTD-753-04443
...
21
Flange Lock Nut MTD-753-04056
...
22
ROTOR SHAFT MTD-791-00022
...
23
SNOWTHOWER AUGER MTD-753-04423
...
24
Washer MTD-791-182910
...
25
VANE MTD-791-00020
...
26
HOUSING:SNOW FOX:SNOW MTD-753-04425
...
27
PUSH NUT MTD-791-00013
...
28
Drive Belt MTD-791-00014
...
...
...
...
...
