Bolens 24AA5DMK065 (2007) Log Splitter

Model: 24AA5DMK065 (2007)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-951-10298
...
xx
FUEL FILTER MTD-951-12296A
...
xx
Hydraulic Filter MTD-NA
...
xx
Inlet Filter MTD-NA
...
xx
Vented Dipstick MTD-NA
...
xx
Cylinder MTD-918-04241
...
xx
SEAL KIT 2.5" CYLINDER XINGHUI MTD-953-05611
...
xx
Flexible Coupling MTD-NA
...
xx
Adjustable Gibbs MTD-NA
...
xx
Belt MTD-754-04128
...
xx
Hydraulic Valve Control MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
Valve Handle Link MTD-913-04036
...
xx
Chain MTD-NA
...
xx
Hub Cap MTD-NA
...
xx
Wheel Assembly MTD-734-1987

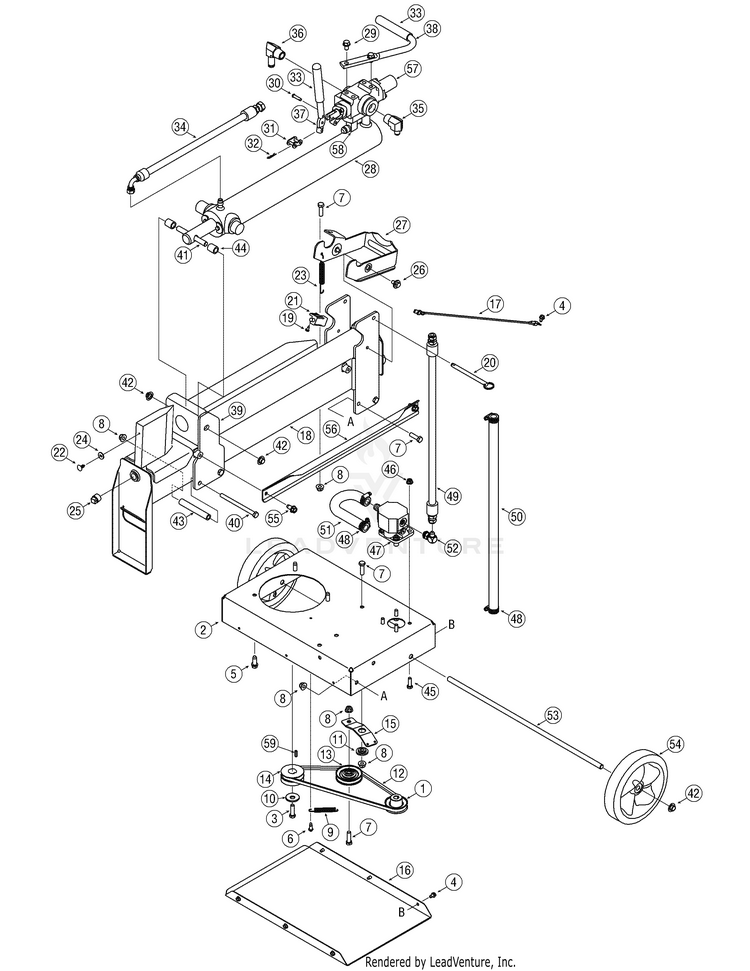

General Assembly

...
...
1
Pulley, .50 ID x 2.38 OD MTD-656-04037
...
2
Frame Assembly MTD-681-04065A
...
3
Screw, 3/8-24 x 1.25 MTD-710-0191
...
4
Tt Screw, 1/4-20 x .375 MTD-710-0653
...
5
Tt Screw, 3/8-16 x 1.00 MTD-710-0654A
...
6
Screw, Shldr., .30 x .46 MTD-710-1650
...
7
Screw, 3/8-16 x 1.25 MTD-710-3005
...
8
Nut, Flange Lock, 3/8-16 MTD-712-04065
...
9
Spring, Extension, .375 x 2.95 MTD-732-04217
...
10
Washer, Bell, .396 x 1.140 x .095 MTD-736-0452
...
11
Spacer, Shldr., .38 x .75 x .13 MTD-748-04125
...
12
Belt, V-Type, 3L, 33.92" MTD-754-04128
...
13
Pulley, V-Idler, 2 x 2.75 x .625-3L MTD-756-04133
...
14
Pulley, Idler MTD-756-04304
...
15
Bracket, Idler, Belt MTD-781-04132-0637
...
16
Cover, Belt MTD-781-04161-0637
...
17
Harness, Interlock MTD-629-04161
...
18
Tank Assembly MTD-681-04064-0637
...
19
SHOULDER SCREW MTD-738-04237A
...
20
Pin, Locking MTD-711-04772
...
21
Switch, Interlock MTD-725-04363
...
22
Clip MTD-726-3046
...
23
Spring, Extension, .480 OD x 5.0 MTD-732-04085
...
24
Washer, Slotted, Felt MTD-736-04178A
...
25
Plug, Drain MTD-737-04148
...
26
Screw, Shldr., .560 x .165 MTD-738-0930
...
27
Bracket, Lock, Cylinder MTD-781-04168-0637
...
28
Cylinder MTD-918-04241
...
28
SEAL KIT 2.5" CYLINDER XINGHUI MTD-953-05611
...
29
Screw, 3/8-16 x .625 MTD-710-0870
...
30
Pin, Clevis MTD-711-04585
...
31
Valve Handle Link MTD-913-04036
...
32
Pin, Cotter MTD-714-0104
...
33
Grip MTD-720-04088
...
34
Hose, Valve, Cylinder MTD-727-04182
...
35
Adapter, Hydraulic MTD-737-04155
...
36
Adapter, Hydraulic MTD-737-04154
...
37
Hydraulic Valve Control MTD-747-04539A
...
38
Handle, Rod MTD-747-04707-0637
...
39
PUSH BRACKET ASSEMBLY MTD-681-04087B
...
40
Screw, 3/8-16 x .500 MTD-710-0615A
...
41
PIVOT ROD .50 x 5.28 MTD-711-04762
...
42
Cap, Push MTD-726-0299
...
43
Spacer, .385 x .625 x 4.07 MTD-750-04668
...
44
SPACER-.525 x .775 x 1.358 MTD-750-04886
...
45
Screw, 5/16-18 MTD-710-0376
...
46
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
47
Nut, Flange Lock, 5/16-18 MTD-918-04243
...
48
HOSE CLAMP MTD-726-04079
...
49
Hose MTD-727-04154
...
50
Hose, Return MTD-727-04156
...
51
Hose, Inlet MTD-727-04157
...
52
Fitting, Elbow MTD-737-04187
...
53
Axle MTD-711-04575
...
54
Wheel MTD-734-1987
...
55
SCREW 5/16-18 x .750 MTD-710-04484
...
56
Bracket, Support MTD-781-04124-0637
...
57
Control Valve MTD-918-0481A
...
58
Adapter MTD-737-0192
...
59
Key MTD-714-0122
...
xx
Tow Hitch Kit (Optional) MTD-NA

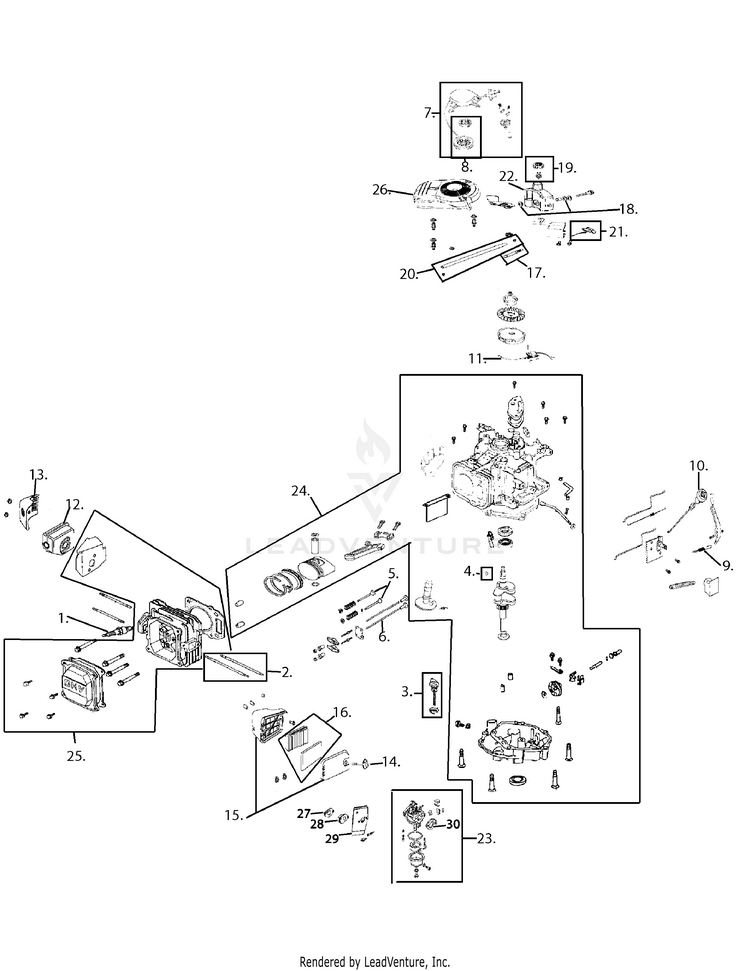

Engine Assembly 1P61L0

...
...
1
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
2
Carb Stud M6x92 MTD-710-05093
...
3
Dipstick Assembly MTD-951-10617
...
4
WOODRUFF KEY MTD-751P10307A
...
5
Valve Kit MTD-951-10313
...
6
Push Rod Kit MTD-951-10314
...
7
Recoil Starter MTD-951-10299A
...
8
Recoil Spring & Pulley Assembly MTD-951-10319
...
9
GOVERNOR RETURN SPRING MTD-951-10618
...
10
CHOKE CONTROL KNOB MTD-951-10619
...
11
Ignition Coil MTD-951-10620
...
12
Muffler Assembly MTD-951-10403
...
13
MUFFLER GUARD MTD-951-10404
...
14
Air Cleaner Thumb Screw MTD-951-10297
...
15
Air Cleaner Housing Assembly Complete MTD-951-10876
...
16
Air Cleaner Kit MTD-951-10298
...
16
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
16
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
17
FUEL FILTER MTD-951-12296A
...
18
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
19
Fuel Cap Assembly MTD-951-10300
...
20
Fuel Line Kit (Inc. Hose, Clamps & Filter) MTD-951-10363
...
21
IGNITION SWITCH MTD-951-10622
...
22
FUEL TANK MTD-951-10337
...
23
CARBURETOR ASSEMBLY MTD-951-14238
...
24
SHORTBLOCK ASSEMBLY MTD-951-11862
...
25
CYLINDER HEAD ASSEMBLY MTD-951-10743
...
26
ENGINE SHROUD-BLACK MTD-931-05692
...
27
Carb Insulator Gasket MTD-951-11528
...
28
Carb Insulator MTD-951-11527
...
29
CARBURETOR GASKET MTD-951-11684
...
30
Carb Gasket Plate MTD-951-11525
...
xx
SPARK ARRESTOR MTD-951-10351A
...
xx
FLYWHEEL (Not shown) MTD-951-11042
...
xx
COOLING FAN (Not shown) MTD-951-10909B
...
xx
STARTER CUP (Not shown) MTD-951-11041
...
xx
Stop Switch and Brake Ass'y (Not shown) MTD-951-10320A
...
xx
CARBURETOR KIT (MINOR) (Not shown), (Inc. Carburetor Insulator Plate Gasket, Bowl Gasket, Fuel Bowl Gasket, Needle Valve Spring, Needle Valve Float) MTD-951-10626
...
xx
CARBURETOR KIT (MAJOR) (Not shown), (Inc. Bowl Gasket, Float, Dust Seals, Main Jet, Pilot Screw, Idle Speed Adjusting Screw, Needle Valve Spring, Float Pin, Fuel Cup Gasket, Fuel Drain Plug Gasket) MTD-951-10627
...
xx
GASKET KIT (EXTERNAL) (Not shown), (Inc. Breather Gasket, Valve Cover Gasket, Carburetor to Insulator Gasket, Carburetor Insulator Plate, Muffler Gasket, Crankcase Drain Bolt Washer, Dipstick O-Ring) MTD-951-10885
...
xx
GASKET KIT (COMPLETE) MTD-951-10629
...
xx
COMPLETE ENGINE 123cc (Not shown) MTD-952Z1P61L0
...
...
...
...
...
