Bolens 165-WU 179cc Engine Snow Thrower

Model: 165-WU 179cc Engine

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

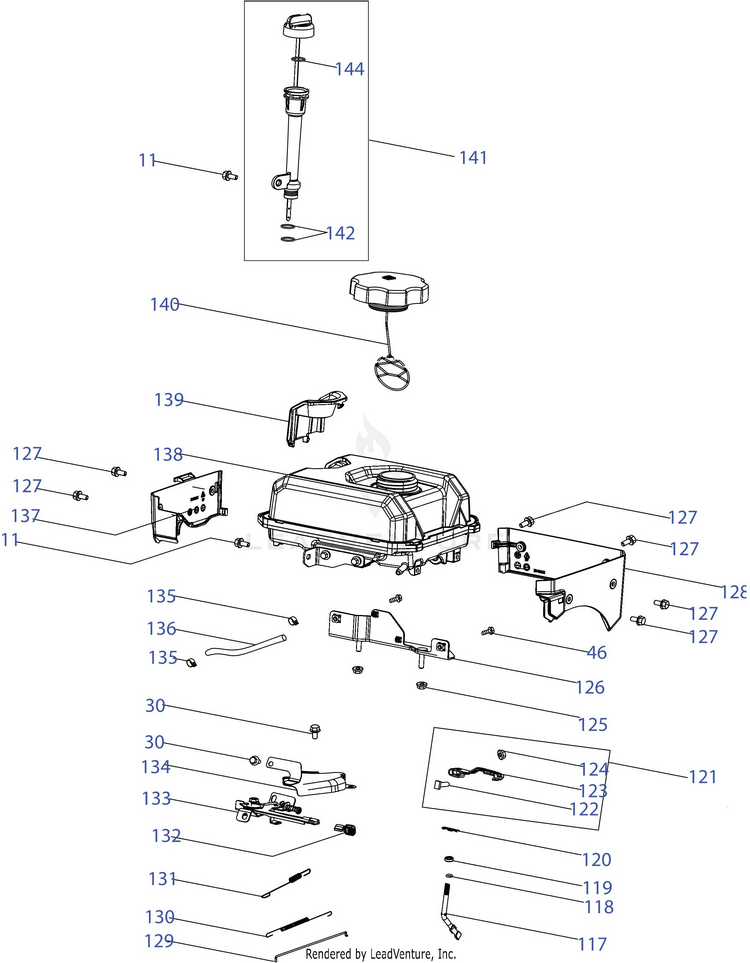

165-WU Fuel Tank & Mounting

...
...
11
Bolt, M6?12 MTD-710-04915
...
30
Bolt, M6?12 MTD-710-05103
...
46
BOLT M6-1 x 18 MTD-710-05003A
...
117
Governor Gear Shaft MTD-951-14053
...
118
O-Ring, 5.2?1.9 MTD-736-04461
...
119
OIL SEAL MTD-951-11902A
...
120
Cotter Pin MTD-714-04078
...
121
Governor Lever MTD-951-14089
...
122
Bolt, M6?21 MTD-710-04908
...
123
Governor Lever MTD-951-11106
...
124
NUT: M6 MTD-751-15175
...
125
Nut, M6 MTD-712-05015
...
126
Fuel Tank Bracket MTD-951-15174
...
127
Bolt, M5?14 MTD-951-15189
...
128
Decorative Sheet, Left MTD-951-15190
...
129
THROTTLE LINKAGE MTD-751P10665A
...
130
THROTTLE SPRING MTD-751P10664A
...
131
GOVERNOR SPRING MTD-751P14882A
...
132
Throttle Lever Knob MTD-951-11224
...
133
Governor Gear Bracket Assembly MTD-951-15153
...
134
Governor Shield MTD-951-15168
...
135
CARBURETOR HOSE CLAMP MTD-951-11700A
...
136
FUEL HOSE MTD-951-15169A
...
137
Decorative Sheet, Right MTD-951-15191
...
138
FUEL TANK MTD-951-15173A
...
139
Decorative Cover MTD-951-15170
...
140
FUEL CAP MTD-951-15172A
...
141
Dipstick MTD-631-05020AP
...
142
O-Ring, 15.2?1.5 MTD-951-12397
...
144
O-RING MTD-921-04663A
...
...
...
...
...
