Bolens 165-WU 179cc Engine Snow Thrower

Model: 165-WU 179cc Engine

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

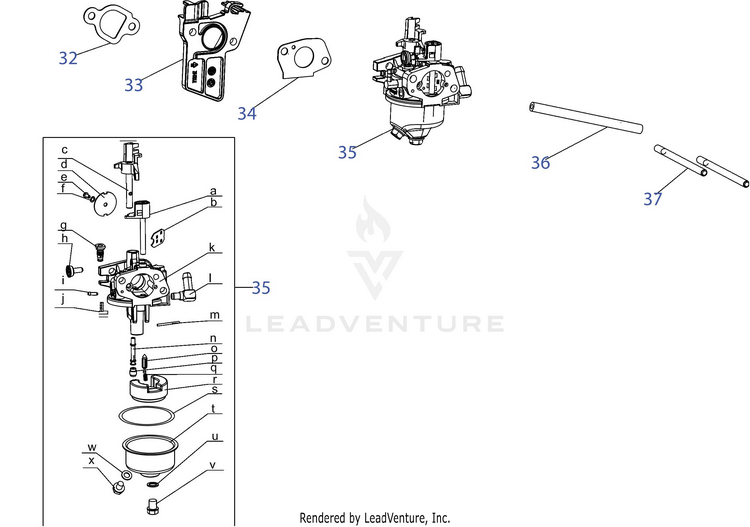

165-WU Carburetor

...
...
32
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
33
Insulator MTD-951-15160
...
34
CARBURETOR GASKET MTD-751P12005B
...
35
Carburetor MTD-951-15162
...
36
Fuel Hose,3.2?6.5?170 MTD-935-05038
...
37
Stud, M6?92 MTD-710-06319
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Throttle Plate MTD-NA
...
e
Screw, M3?6 MTD-NA
...
f
LOCK WASHER MTD-736-04638A
...
g
Idle Jet MTD-NA
...
h
Idle Adjusting Screw MTD-NA
...
i
Mixture Screw MTD-NA
...
j
Primer Line MTD-NA
...
k
Carburetor Body MTD-NA
...
l
Fuel Nipple MTD-NA
...
m
Float Pin MTD-NA
...
n
Nozzle Tube MTD-NA
...
o
Needle Valve MTD-NA
...
p
Main Jet MTD-NA
...
q
Needle Valve Spring MTD-NA
...
r
FLOAT MTD-731P09132A
...
s
O-Ring, Float Bowl MTD-951-11589
...
t
Float Bowl MTD-NA
...
u
FUEL BOWL GASKET MTD-951-11348A
...
v
Bolt MTD-710-04945
...
w
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
x
FUEL DRAIN PLUG MTD-710-04938
...
...
...
...
...
