Bolens 165-WU 179cc Engine Snow Thrower

Model: 165-WU 179cc Engine

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

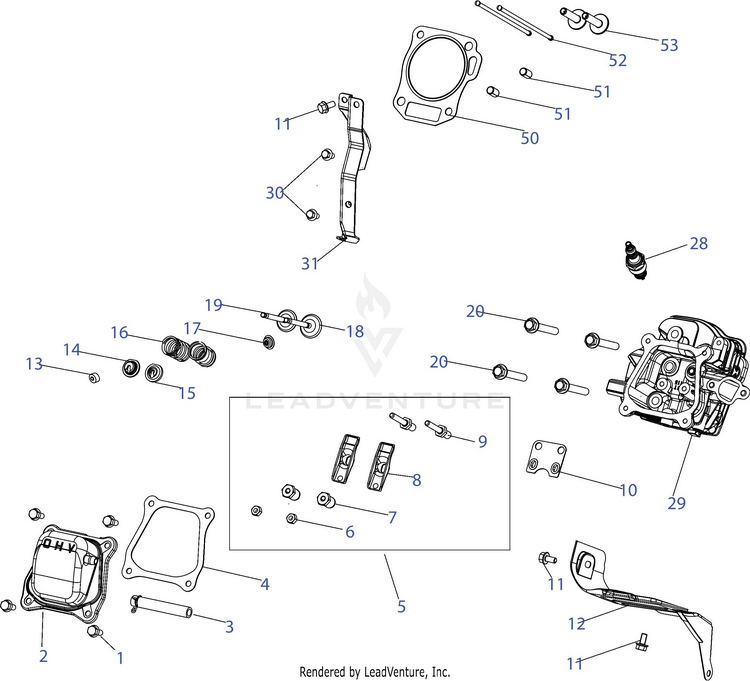

165-WU Cylinder Head

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Breather Hose MTD-951-15045
...
4
VALVE COVER GASKET MTD-751P11565B
...
5
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
6
Lock Nut MTD-751-11124
...
7
Adjust Nut MTD-751-11123
...
8
Rocker Arm MTD-951-11893
...
9
Stud MTD-710-04902
...
10
Rocker Arm Base MTD-951-15139
...
11
Bolt, M6?12 MTD-710-04915
...
12
Shroud MTD-951-11113
...
13
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
14
Valve Spring Seat MTD-951-12003
...
15
Valve Spring Seat MTD-951-12000
...
16
VALVE SPRING MTD-751P12004A
...
17
Intake Valve Seal MTD-951-11894
...
18
INTAKE VALVE MTD-751P14099A
...
19
EXHAUST VALVE MTD-751P14100A
...
20
Bolt, M8?55 MTD-710-04933
...
28
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
29
CYLINDER HEAD MTD-751P14928A
...
30
Bolt, M6?12 MTD-710-05103
...
31
Snow Guard MTD-951-15185
...
50
Gasket, Cylinder Head MTD-951-11898
...
51
Pin, 10?16 MTD-715-04108
...
52
PUSH ROD MTD-751P14105A
...
53
Tappet MTD-951-11899
...
...
...
...
...
