Bolens 165-WU 179cc Engine Snow Thrower

Model: 165-WU 179cc Engine

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

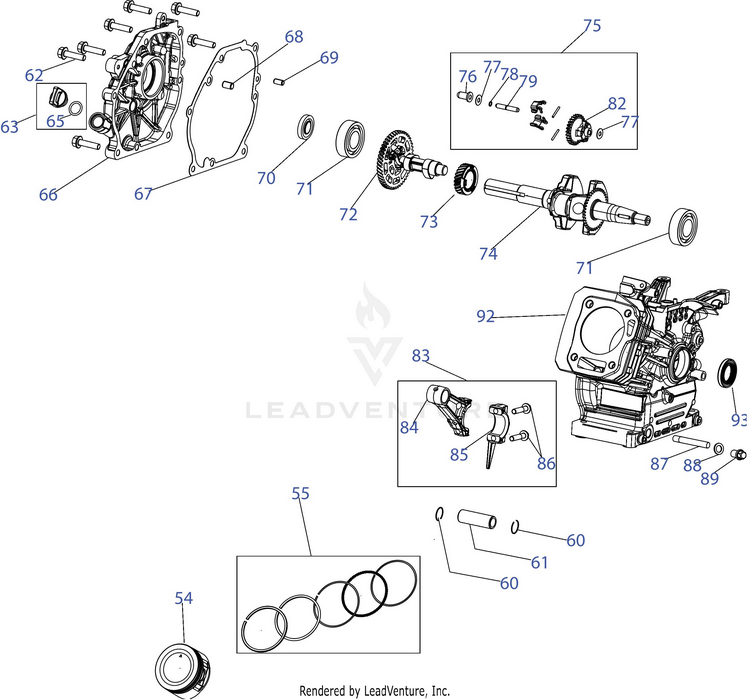

165-WU Crankcase

...
...
54
Piston MTD-951-11900
...
55
Piston Ring Set MTD-951-11688
...
60
PISTON PIN SNAP RING MTD-951-11632
...
61
Piston Pin MTD-951-11901
...
62
Bolt, M6?32 MTD-710-05182
...
63
Oil Plug MTD-931-09966
...
65
O-RING 15.8 x 2.5 MTD-951-11577
...
66
CRANKCASE COVER MTD-951-12125A
...
67
CRANKCASE GASKET MTD-751P11371B
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN 9 X 14 MTD-715-04096A
...
70
OIL SEAL MTD-751P11368A
...
71
Bearing, 6205 MTD-951-11369
...
72
Camshaft MTD-951-15128
...
73
Drive Timing Gear MTD-951-15130
...
74
Crankshaft MTD-951-15129
...
75
GOVERNOR GEAR MTD-751P11576A
...
76
Governor Cup MTD-931-09595
...
77
Washer, 6.2?0.6?15 MTD-936-05038
...
78
Retaining Ring MTD-916-05003
...
79
Governor Shaft MTD-911-06137
...
82
Governor Gear MTD-917-05152
...
83
CONNECTING ROD MTD-751P11573A
...
84
Connecting Rod MTD-NA
...
85
Connecting Rod Cap MTD-NA
...
86
Connecting Rod Bolt MTD-710-05116
...
87
OIL DRAIN PIPE MTD-951-11350A
...
88
FLAT WASHER MTD-736-04440A
...
89
Earth Bolt MTD-710-04906
...
92
Crankcase MTD-951-14198
...
93
OIL SEAL MTD-751P11370A
...
xx
complete engine MTD-952Z165-WU
...
...
...
...
...
