Bolens 13AM762F765 (2006) Lawn Tractor

Model: 13AM762F765 (2006)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

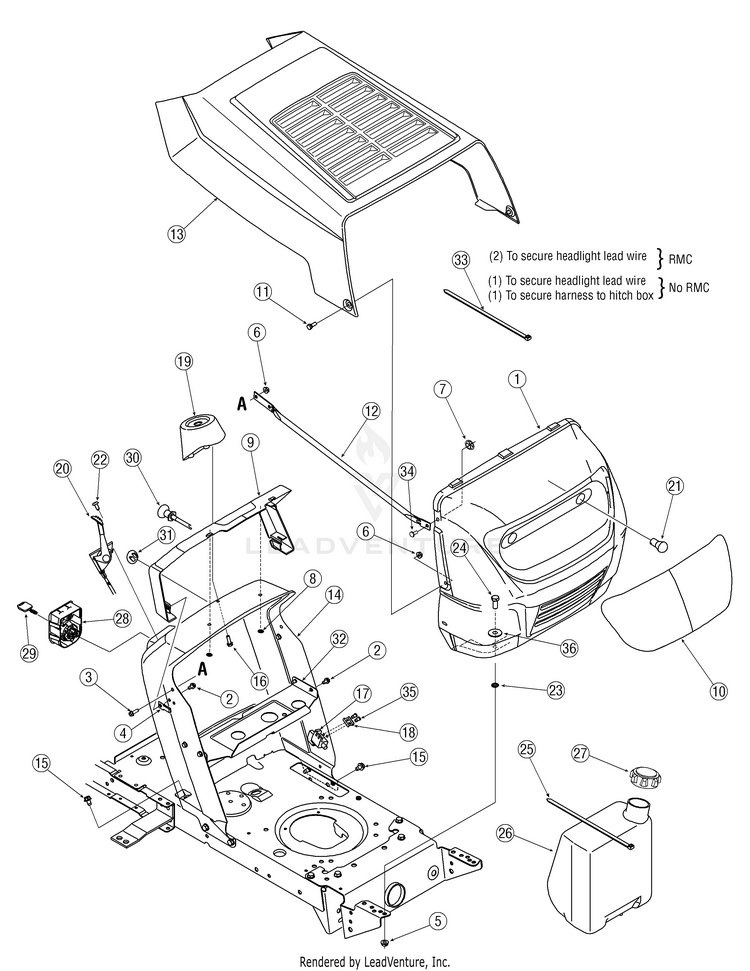

Hood Style 2

...
...
1
GRILL:2 STYLE MTD-783-04979
...
2
Screw, 1/4-20, 0.500 MTD-710-0599
...
3
Screw, 1/4-20, 0.750 MTD-710-0642
...
4
SPEED NUT 1/4-20 MTD-712-0185
...
5
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
6
Nut, Flange Lock, 1/4-20, GrF MTD-712-04064
...
7
Nut, Push-on, .25 Dia MTD-726-04012
...
8
Push Nut, .25ID x .50OD MTD-726-0233
...
9
Dash MTD-731-05012B
...
10
KIT-SERVICE FOR 731-1503A MTD-753-06310
...
11
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
12
Grill Support Rod MTD-749-04220-0637
...
13
Hood MTD-783-04608
...
14
DASH-LT-5 RMC Reverse Caution Mode (RMC) MTD-783-04892B
...
14
Dash, NO RMC (No RMC) MTD-783-04873B
...
15
Screw, 5/16-18, 0.625 MTD-710-0604A
...
16
Screw, 1/4-15, 0.750 MTD-710-0895
...
17
SWITCH (for models equipped w/Reverse Caution Mode) MTD-925-04039
...
18
Switch Plate (for models equipped w/Reverse Caution Mode) (for models equipped w/Reverse Caution Mode) MTD-17962
...
19
Support, Steering MTD-731-04945
...
20
Throttle/Choke Control, 25" Single Cylinder Engine) Single Cylinder Engine) MTD-746-04258
...
20
THROTTLE CABLE (Twin Cylinder Engine) MTD-946-1086
...
21
Miniature Lamp 12V Socket Type MTD-925-0963
...
22
SCREW 1/4-20 x .500 MTD-710-04483
...
23
Speed Nut, .3125 MTD-726-0201
...
24
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
25
Cable Tie, 34.75 MTD-726-0230
...
26
FUEL TANK 1.36 GAL MTD-751-0555D
...
27
TANK CAP MTD-751-0603B
...
28
IGNITION MODULE SWITCH RMC (MAN PTO BLK) (Reverse Caution Mode - RMC) MTD-925-06119C
...
28
Ignition Switch (No RMC) MTD-925-1741
...
29
Key MTD-925-1745A
...
30
Choke Cable 39" Lg. MTD-946-1085A
...
31
Choke Plug MTD-731-05265
...
32
Gas Tank Support Bracket MTD-783-04584B-0637
...
33
Cable Tie MTD-725-0157
...
34
Rivet, Flat Head 1/4" MTD-728-0162
...
35
Pop Rivet (for models equipped w/Reverse Caution Mode) (for models equipped w/Reverse Caution Mode) MTD-728-04021
...
36
Flat Washer, .344 x 1.00 x MTD-736-3078
...
xx
HARNESS ASSEMBLY MTD-929-04151A
...
xx
HARNESS MTD-925-04361
...
...
...
...
...
