Bolens 13AM762F765 (2006) Lawn Tractor

Model: 13AM762F765 (2006)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

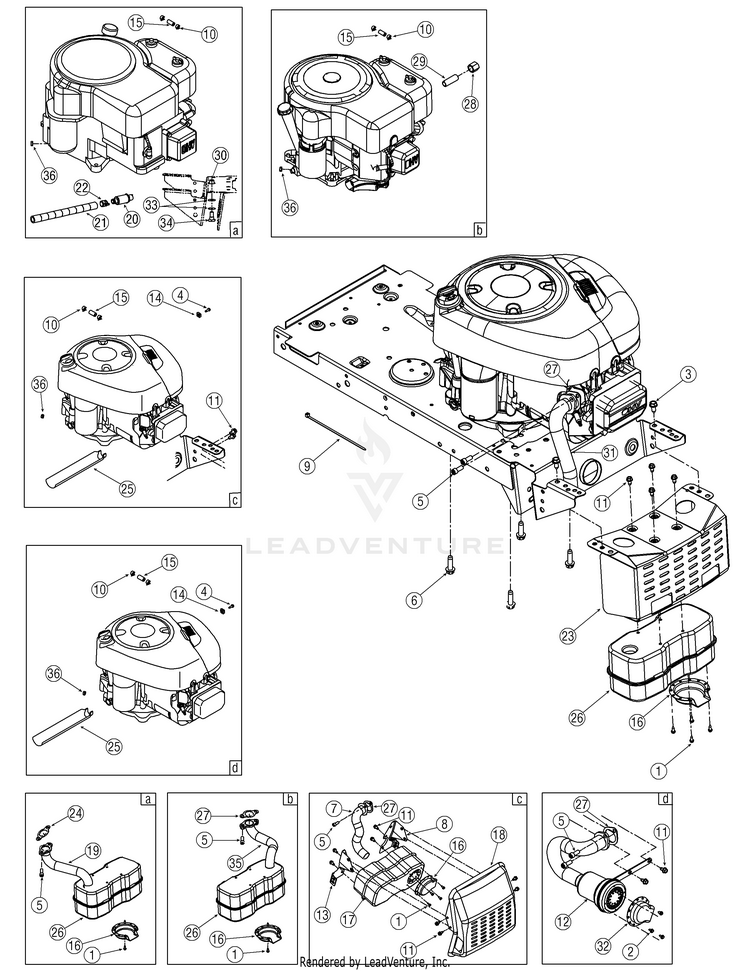

Engine Accessories

...
...
1
Screw, #8-18 x .50 MTD-710-0227
...
2
SCREW: AB 8-18X.375 MTD-710-1502
...
3
Self-tapping Screw, 5/16-12, .75 MTD-710-0726
...
4
Screw, #10-32, .625 MTD-710-1237
...
5
Socket Cap Screw, 5/16-18,.625 MTD-710-1314A
...
6
Self-tapping Screw, 3/8-16, 1.25 MTD-710-1315
...
7
Exhaust Pipe MTD-751-10013
...
8
LH Muffler Bracket MTD-783-04573
...
9
Cable Tie, 7.4" MTD-725-0157
...
10
Hose Clamp, .490 MTD-726-0205
...
11
Screw, 1/4-20, 0.500 MTD-710-0599
...
12
MUFFLER MTD-951-9986A
...
13
MUFFLER BRACKET(RH) MTD-783-04574
...
14
Casing Clamp MTD-751B221535
...
15
Fuel Line Hose MTD-751-10349
...
16
Muffler Deflector MTD-751-0564B
...
17
MUFFLER (SINGLE INLET) MTD-951-10162
...
18
Muffler Shield MTD-783-04576
...
19
Exhaust Pipe MTD-751-0620A
...
20
Oil Drain Valve MTD-951-10517A
...
21
Oil Drain Hose MTD-751-3141-14
...
22
Oil Drain Cap MTD-751-3142
...
23
Muffler Heat Shield MTD-783-0615E-0637
...
24
EXHAUST GASKET MTD-TC-36365
...
25
Oil Drain Sleeve MTD-731-1682A
...
26
Single Inlet Muffler MTD-951-0617C
...
27
Gasket-Exhaust MTD-BS-692236
...
28
CAP - OIL DRAIN MTD-737-0143
...
29
PIPE NIPPLE MTD-937-0199
...
30
Flange Lock Nut, 3/8-16 MTD-712-04065
...
31
Exhaust Pipe MTD-751-0619B
...
32
Muffler Deflector MTD-751B222261
...
33
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
34
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
35
Exhaust Pipe MTD-751-0622A
...
36
Hex Sems Nut, 1/4-20 MTD-712-0271
...
...
...
...
...
