Bolens 13AM761F265 (2009) Lawn Tractor

Model: 13AM761F265 (2009)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

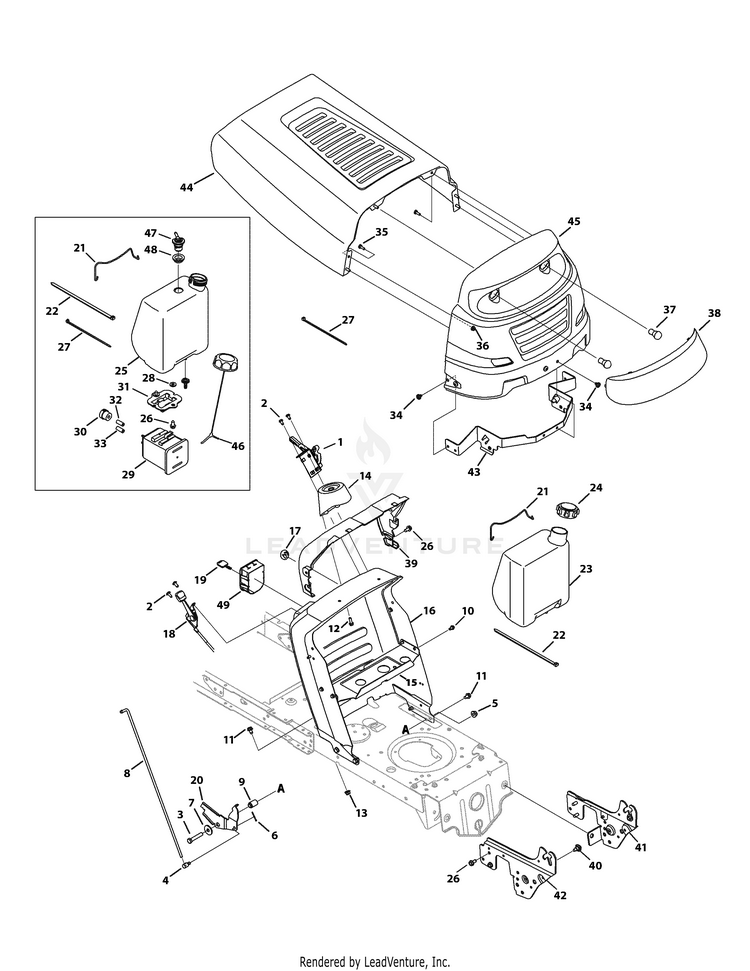

Hood Style 1

...
...
1
7-Speed Control Assembly Yard-Man & MTD Gold Models MTD-983-04216
...
1
7-Speed Control Assembly Huskee Models MTD-983-04503
...
1
CONTROL ASSEMBLY: 6 SPD Bolens Models MTD-983-04225
...
2
SCREW 1/4-20 x .500 MTD-710-04483
...
3
Hex Screw, 3/8-16 x 2.0 MTD-710-3144
...
4
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
5
Flangelock Nut, 3/8-16 MTD-710-04065
...
6
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
7
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133
...
8
Speed Selector MTD-747-04430
...
9
Flange Spacer MTD-750-04465B
...
10
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
11
Screw, 5/16-18 x .625 MTD-710-0604A
...
12
Screw, 1/4-15 x .750 MTD-710-0895
...
13
Flangelock Nut, 5/16-18 MTD-712-04063
...
14
Steering Support MTD-731-04945
...
15
Gas Tank Support Bracket MTD-783-04584B-0637
...
16
Dash MTD-783-04873B-0637
...
16
Dash MTD-783-04873B-0637
...
16
Dash MTD-783-04873B-0637
...
17
Choke Plug MTD-731-05265
...
18
Throttle/Choke Cable MTD-746-04364
...
19
Key MTD-925-1745A
...
20
SPEED LATCH BRACKET MTD-783-04903
...
21
BATTERY ROD ASSEMBLY MTD-747-04744A
...
22
Cable Tie MTD-726-0230
...
23
FUEL TANK 1.36 GAL MTD-751-0555D
...
24
TANK CAP MTD-751-0603B
...
25
FUEL TANK (1.36 GAL) MTD-651P08849
...
26
SCREW 5/16-18 x .750 MTD-710-04484
...
27
Cable Tie MTD-725-0157
...
28
Flat Washer, .344 x .750 x .120 MTD-936-3008
...
29
5 Gallon Carbon Canister MTD-951-10589
...
30
Vent Filter Canister MTD-951-10590
...
31
Canister Adapter MTD-951-10610
...
32
Fuel Hose, White MTD-751-10749-30
...
33
FUEL HOSE LO PERMEATION 28" MTD-751-10750A-28
...
34
Screw, 5/16-18 x .375 MTD-710-04593
...
35
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
36
Flangelock Nut, 1/4-20 MTD-712-04064
...
37
Miniature Lamp 12V Socket MTD-925-0963
...
38
GRILLE LENS 1 STYLE MTD-731P04949A
...
39
Dash MTD-731-05078C
...
40
Shoulder Screw, 5/16-18 x .43 x .29 MTD-738-04091A
...
41
Left Support Pivot Bracket MTD-783-05327B-0637
...
42
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
43
Hood Pivot Bracket MTD-783-05454-0637
...
44
HOOD-1 STYLE (MTD RED) MTD-783-05684-0638
...
44
HOOD-1 STYLE (YARD-MAN YELLOW) MTD-783-05684-0674
...
44
HOOD-1 STYLE MTD-783-05684
...
44
HOOD-1 STYLE MA(MASTERCRAFT GREEN) MTD-783-05684-0709
...
45
Grill MTD-783-05685A-0638
...
45
GRILLE-1 STYLE (YARD-MAN YELLOW) MTD-783-05685A-0674
...
45
Grill MTD-783-05685A-0662
...
45
GRILLE-1 STYLE (MASTERCRAFT GREEN) MTD-783-05685A-0709
...
46
FUEL CAP (W/TETHER) MTD-951-12426B
...
47
ROLLOVER FUEL VALVE MTD-751-12118
...
48
Rubber Grommet, 23 x 3.55 MTD-735-04081
...
49
Key Switch MTD-925-04659
...
xx
MAIN HARNESS (4 POS/ACDC/BULB) MTD-925-04433H
...
xx
MAIN HARNESS (3 POS/ACDC/BULB) MTD-925-04567K
...
...
...
...
...
