product name

Bolens 13AM662F163 (2003) Lawn Tractor

Model: 13AM662F163 (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

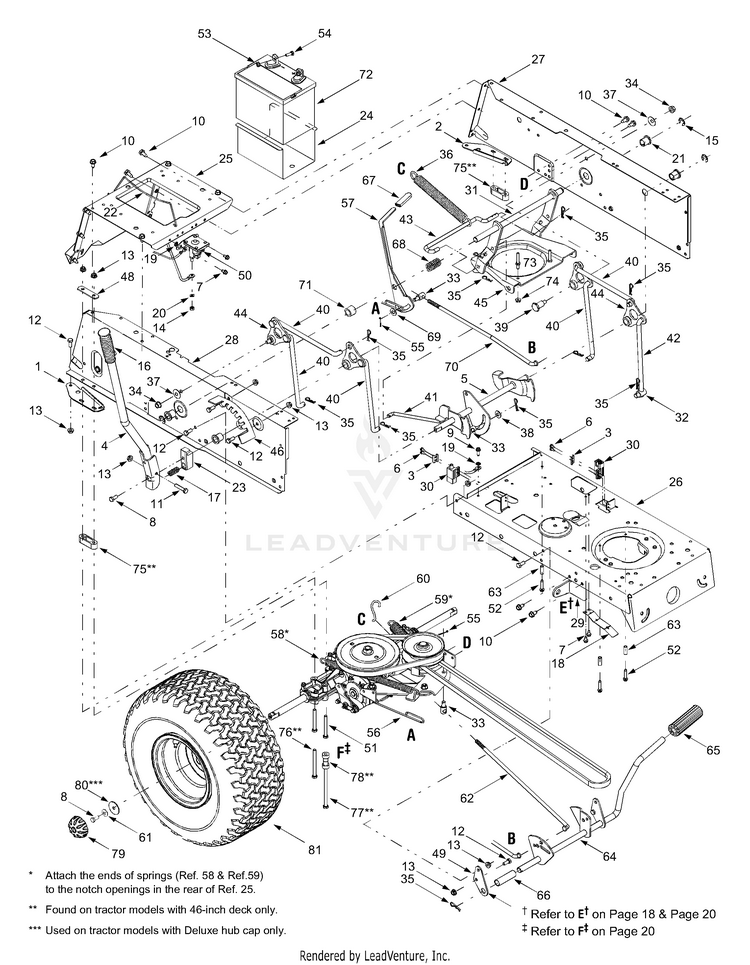

Controls, Battery, Lift

...
...
1
BRACKET-AXLE SUPPORT MTD-17668A-0637
...
2
BRACKET-AXLE SUPPORT MTD-17669A-0637
...
3
Switch Plate MTD-17962
...
4
Lift Handle Assembly MTD-683-04025
...
5
LIFT SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04049A-0637
...
6
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
7
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
8
Hex Cap Screw, 5/16-24 x .75 MTD-710-0627
...
9
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
10
Self-tapping Screw, 5/16-12 x .75 MTD-710-0726
...
11
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
12
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
HEX NUT MTD-712-3006
...
15
E-Ring, .625 Dia Shaft MTD-716-0106
...
16
LIFT HANDLE GRIP MTD-720-0233
...
17
SPRING MTD-932-0369
...
18
Spring Switch MTD-932-0750A
...
19
External Lock Washer, 1/4 MTD-736-0222
...
20
L-Wash. 1/4" I.D. MTD-936-0329
...
21
Flange Bearing .632 ID MTD-741-0487C
...
22
BATTERY HOLD DOWN ROD MTD-747-04031
...
23
Lift Shaft Connector MTD-948-04011A
...
24
Battery Tray MTD-783-0345-0637
...
25
HITCH PLATE MTD-783-0355D
...
26
LOWER FRAME MTD-783-04011A
...
27
SIDE PANEL (LH) MTD-783-04031A
...
28
SIDE PANEL (RH) MTD-783-04032
...
29
FRAME BRACKET MTD-783-04213-0637
...
30
SWITCH MTD-925-04039
...
31
STABALIZER SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04048A-0637
...
32
FERRULE 1/2-20 x .500 MTD-911-04036
...
33
Ferrule, 3/8-24 X .375 DIA. MTD-911-04075A
...
34
Flange Lock Nut 3/8-16 MTD-912-0431
...
35
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
36
Extension Spring, 1.07 x 9.52 MTD-732-04050D
...
37
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
38
FLAT WASHER .38X.88 MTD-736-0267
...
39
SHOULDER BOLT MTD-738-0445A
...
40
HANGAR DECK LINK MTD-947-04018A
...
41
Deck Disengagement Rod MTD-747-04040A
...
42
Deck Hanger Link MTD-747-04069A
...
43
REAR STABILIZER ROD MTD-747-04115A
...
44
LIFT LINK MTD-948-04010
...
45
DECK STABILIZER BRACKET MTD-783-04093-0637
...
46
Index Brkt. MTD-783-04113P
...
?47
Shift Lever Bracket MTD-17630A-0637
...
48
Transaxle Mounting Bracket MTD-17840-0637
...
49
BRACKET-PEDAL MTD-17860-0637
...
50
Solenoid MTD-925-1426A
...
51
Hex Cap Screw, 5/16-18 x 2.75 MTD-710-0176
...
52
Self-tapping Screw, 1/4-20 x 1.25 MTD-710-0809
...
53
Hex Sems Nut, 1/4-20 MTD-712-0271
...
54
Hex Screw,1/4-20 x .75 MTD-710-3015
...
55
Cotter Pin, 1.0 MTD-714-0111
...
56
EXTENSION SPRING MTD-932-04029
...
57
SPEED SELECT LEVER MTD-783-04059
...
58
EXTENSION SPRING MTD-732-04075B
...
59
Spring, Extension, 1.15 OD x 7.90 MTD-732-04076A
...
60
Brake Return Spring Anchor MTD-932-0722A
...
61
Bell Washer, .34 x .872 x .060 MTD-736-0242
...
62
CONTROL ROD MTD-747-04043
...
63
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
64
CLUTCH PEDAL ASSEMBLY MTD-683-04005A
...
65
FOOT PAD MTD-735-0239A
...
66
Spacer, .640 x .76 x 2.63 MTD-750-0802
...
67
SHIFT HANDLE GRIP MTD-720-04008
...
68
COMPRESSION SPRING MTD-932-04017
...
69
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
70
ROD-SPEED MTD-747-04039
...
71
SPACER .640 ID x .76 x .78 MTD-950-04080
...
72
BATTERY MTD-925-1707D
...
xx
BATTERY MTD-925-1707D
...
73
LOCK NUT 1/4 MTD-912-3027
...
74
Belt Guard Pin 1/4" Dia. MTD-911-0993
...
75
Spacer MTD-749-0334
...
76
Hex Cap Screw, 5/16-18 x 3.25 MTD-710-1266
...
77
Hex Cap Screw, 5/16-18 x 5.25 MTD-710-0833
...
78
SHOULDER SPACER MTD-948-04021A
...
79
HUB CAP MTD-731-2290B
...
80
Flat Washer, .350 x 1.59 x .062 MTD-736-0430
...
81
Round Shoulder Wheel Ass'y Complete MTD-734-1675
...
xx
Square Shoulder Wheel Ass'y Complete MTD-634-0104
...
...
...
...
...
