Bolens 13AC650F765 (2004) Lawn Tractor

Model: 13AC650F765 (2004)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

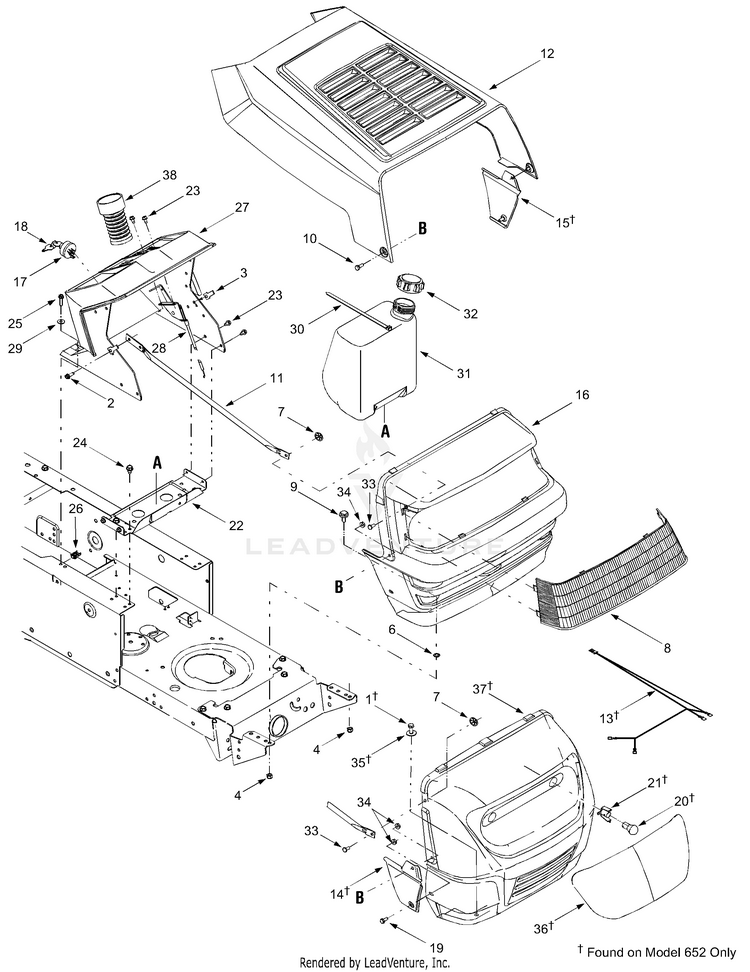

Hood, Fuel Tank, Electrical

...
...
1
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
2
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
3
SPEED NUT 1/4-20 MTD-712-0185
...
4
Hex Lock Nut, Nylon, 5/16-18 MTD-712-0429
...
5
LOCK NUT 1/4 MTD-912-3027
...
6
Speed Nut, .3125 MTD-726-0201
...
7
Push-on Nut, .25 MTD-726-04012
...
8
LENS MTD-731-1601
...
9
SHOULDER SCREW MTD-938-04015
...
10
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
11
GRILLE SUPPORT ROD MTD-749-0722C-0637
...
12
HOOD-STY O W/LOUVERS MTD-783-0250A
...
13
HEADLIGHT HARNESS MTD-929-0469B
...
14
SIDE PANEL (RH) STY MTD-783-0366
...
15
SIDE PANEL (LH) STY 2 MTD-783-0367
...
16
GRILLE ASSEMBLY W/HDWE MTD-931-04089
...
17
Ignition Switch MTD-925-1396A
...
18
Key MTD-925-0201
...
19
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
20
Miniature Lamp 12V Socket Type MTD-925-0963
...
21
SQ HEADLIGHT SOCKET MTD-925-1651
...
22
BRACKET-GA MTD-17632D
...
23
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
24
Self-tapping Screw, 5/16-18 x .5 MTD-710-0607
...
25
Self-tapping Screw, 1/4-20 x 1.0 MTD-710-0788
...
26
U-type Speed Nut, 1/4-20 MTD-726-3054
...
27
DASH PANEL W/O CHOKE MTD-931-04179
...
28
Throttle / Choke Control, 18.5" MTD-746-04020A
...
29
Flat Washer, .260 x .720 x .060 MTD-736-3090
...
30
Cable Tie MTD-726-0230
...
31
FUEL TANK 1.36 GAL MTD-751-0555D
...
32
TANK CAP MTD-751-0603B
...
33
Rivet, 1/4" MTD-728-0162
...
34
Hex Lock Nut, Nylon, 1/4-20 MTD-712-0324
...
35
Flat Washer, .344 x 1.0 x .063 MTD-736-3078
...
36
KIT-SERVICE FOR 731-1503A MTD-753-06310
...
37
GRILL:2 STYLE MTD-783-04979
...
38
BELLOWS-STRG POST MTD-731-04387
...
...
...
...
...
