Bolens 13AC650F765 (2004) Lawn Tractor

Model: 13AC650F765 (2004)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

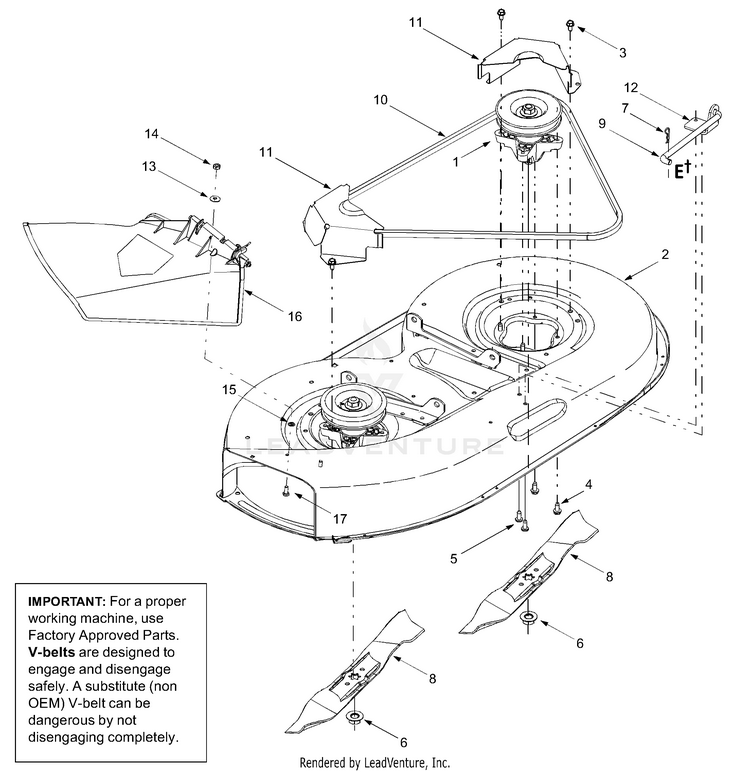

Deck Assembly

...
...
1
Blade Spindle Ass'y. Comp. MTD-918-0138C
...
2
38" DECK ASSEMBLY W/O WHEEL BRACKET MTD-983-04003A
...
3
Self-tapping Screw, 5/16-12 x .75 MTD-710-0726
...
4
Screw, 5/16-18 x .75 MTD-710-1260A
...
5
Self-tapping Screw, 5/16-18 x .75 MTD-710-1611B
...
6
HEX NUT MTD-712-0417A
...
7
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
8
3 in 1 Blade MTD-942-0610A
...
9
HANGAR DECK LINK MTD-947-04018A
...
10
V-Belt MTD-954-0329A
...
11
Belt Cover MTD-783-04148A
...
12
Anti-sway Stabilizer Bracket MTD-783-04211-0637
...
13
SPRING WASHER BELL MTD-736-0270
...
14
HEX NUT MTD-712-3006
...
15
Push Nut, 1/4 MTD-726-0233
...
16
CHUTE ASSEMBLY MTD-631-05229
...
17
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
...
...
...
...
