Bolens 13AC650F765 (2004) Lawn Tractor

Model: 13AC650F765 (2004)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

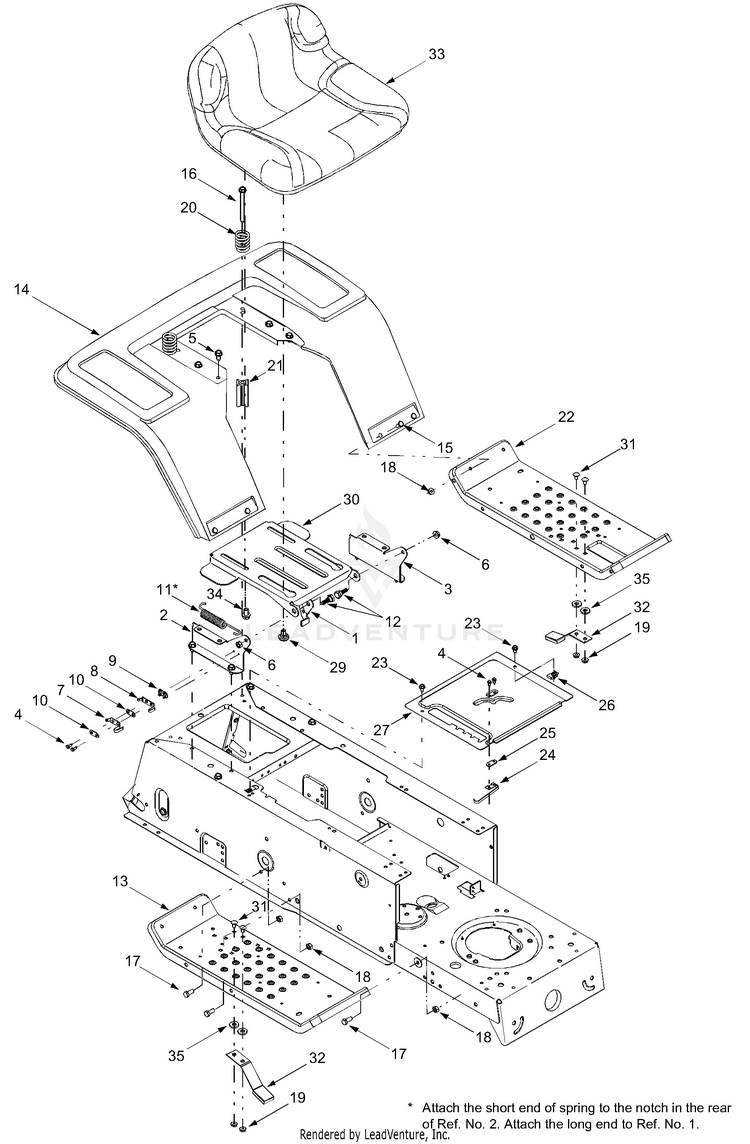

Seat, Fender Assembly

...
...
1
BRACKET-SEAT LIFT MTD-17239C
...
2
R. H. Pivot Seat Support Brkt. MTD-17950A-0637
...
3
L.H. Pivot Seat Support Brkt. MTD-17951A-0637
...
4
Self-tapping Screw, #8-18 x .50 MTD-710-0227
...
5
Self-tapping Screw, 5/16-12 x .75 MTD-710-0726
...
6
Hex Lock Nut, 5/16-18 MTD-712-0429
...
7
Outer Seat Spring Switch MTD-925-1303
...
8
Inner Seat Spring Switch MTD-725-1439
...
9
Insulator Plate Boss MTD-726-0278
...
10
Insulator Plate MTD-726-0279
...
11
Extension Spring MTD-932-0581B
...
12
Shoulder Screw, .437 x .286 MTD-738-0296
...
13
RUNNING BOARD MTD-17770H
...
14
FENDER-RR W/FRAME MTD-17870C
...
15
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
16
Self-tapping Screw, 5/16-18 x 3.5 MTD-710-1208
...
17
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
18
Nylon Lock Nut, 5/16-18 MTD-712-0429
...
19
LOCK NUT 1/4 MTD-912-3027
...
20
COMPRESSION SPRING MTD-732-04038
...
21
SPACER MTD-750-04212
...
22
RUNNING BOARD (LH) MTD-783-04139A
...
23
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
24
Spring Switch, Long MTD-725-1643
...
25
Insulatop Nut Plate MTD-926-0320
...
26
U-Clip Nut, 1/4-20 MTD-726-3054
...
27
SHIFT COVER MTD-783-04429-0637
...
28
Screw, 3/8-16 x .625 MTD-710-0870
...
29
SHOULDER SCREW.625 x .110:3/8-16 MTD-738-04012C
...
30
Seat Pivot Bracket, Manual Adjust MTD-783-04081A
...
31
Carriage Screw, 1/4-20 x .75 MTD-710-0703
...
32
Blade Brake Assembly MTD-961-0168D
...
33
MEDIUM BACK SEAT MTD-757P06245
...
34
Screw, 3/8-16 x .625 MTD-710-0870
...
35
FLAT WASHER MTD-936-3008
...
...
...
...
...
