Bolens 11A-074E065 (2007) Push Walk-Behind Mower

Model: 11A-074E065 (2007)

Save
 Part Not Listed?Part Not Listed?
product name

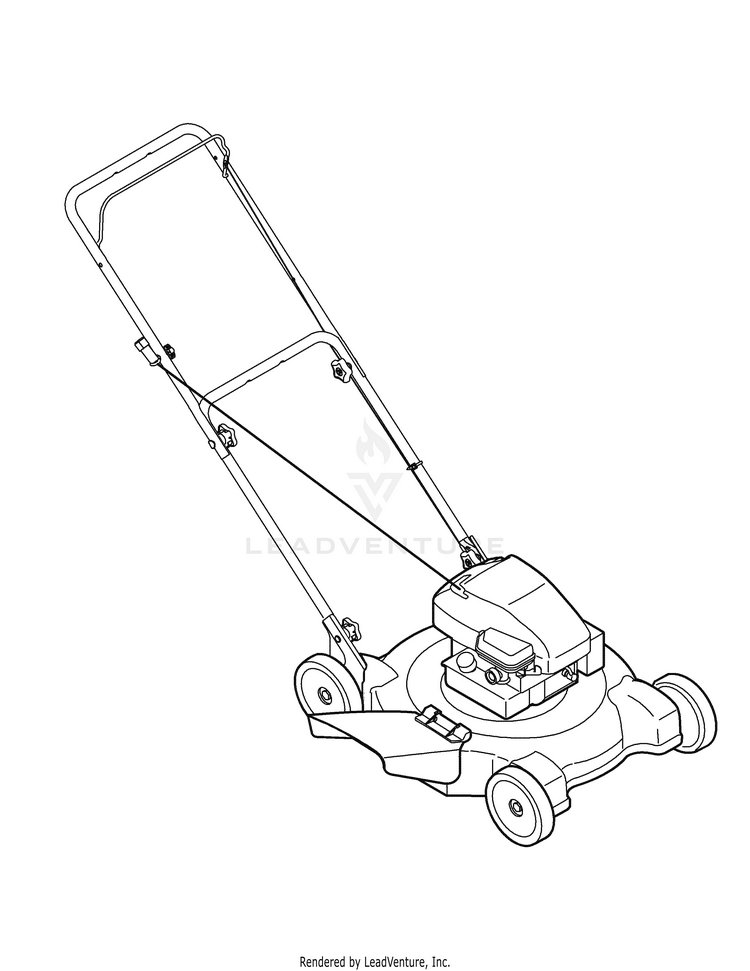

.Quick Reference 074E

...
...
xx
SPARK PLUG RJ19LM 802592S MTD-759-3338
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-490-200-0011
...
xx
Control Cable (brake) (Brake) MTD-946-0957
...
xx
Standard Blade 22-inch MTD-942-0642A
...
xx
Blade Bolt MTD-710-1044
...
xx
Blade Adapter MTD-748-0376E
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
COMPLETE WHEEL (Front) MTD-734-04063B
...
xx
COMPLETE WHEEL (Rear) MTD-734-04063B
...
xx
Trail Shield MTD-731-04019
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
Grass Bag MTD-NA

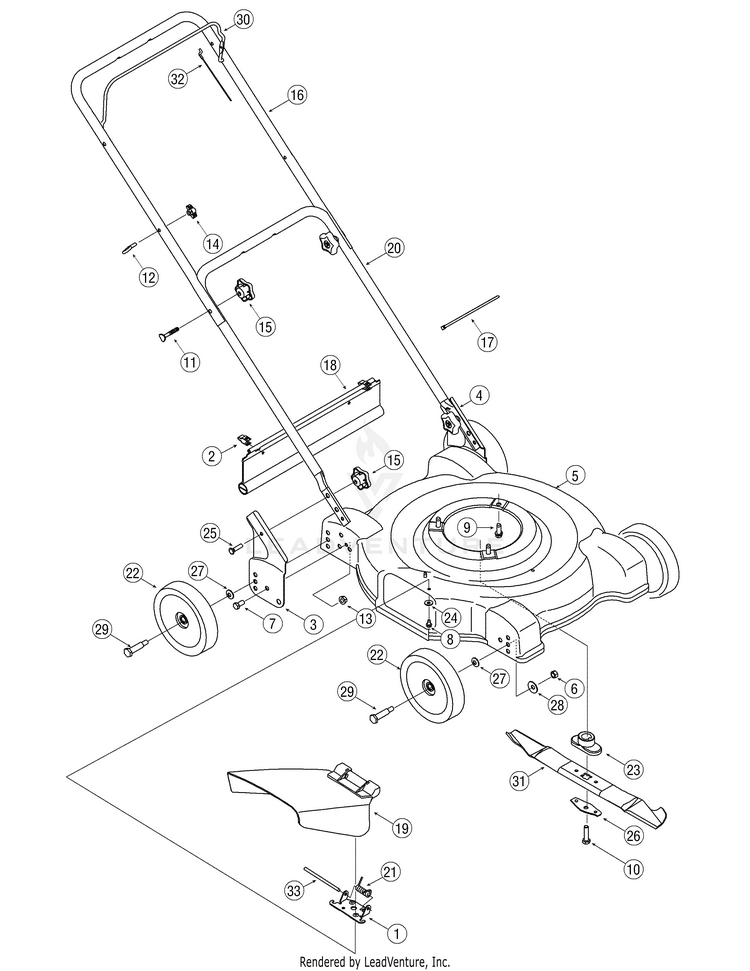

General Assembly

...
...
1
PLATE-ADAPTER MTD-17032A
...
2
HINGE CLIP MTD-17098P
...
3
HANDLE BRACKET ASSEMBLY (RH) MTD-687-02145
...
4
HANDLE BRACKET ASSEMBLY (LH) MTD-687-02144
...
5
22" DECK MTD-787-01084A
...
6
HEX NUT 3/8-16 GR5 MTD-712-3017
...
7
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
8
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
9
TT Screw 3/8-16 x 1.0 MTD-710-0654A
...
10
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
11
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
12
Eye Bolt MTD-710-1205
...
13
Lock Nut 3/8-16 MTD-712-04065
...
14
Wing Nut MTD-720-0279
...
15
Star Knob MTD-720-04072A
...
16
Upper Handle MTD-749-1092A
...
17
Cable Tie MTD-725-0157
...
18
Trail Shield MTD-731-04019
...
19
CHUTE DEFLECTOR MTD-931-1034B
...
20
Lower Handle MTD-749-04037
...
21
Torsion Spring MTD-732-1014C
...
22
COMPLETE WHEEL MTD-734-04063B
...
23
Blade Adapter MTD-748-0376E
...
24
SPRING WASHER BELL MTD-736-0270
...
25
Clinch Stud MTD-710-1694
...
26
BLADE BELL SUPPORT MTD-736-0524B-1
...
27
Bell Washer, .375 x .870 x .063 MTD-736-0105
...
28
Bell Washer, .390 x 1.13 x .062 MTD-736-0331
...
29
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
30
Blade Control MTD-747-1161A
...
31
Standard Blade 22-inch MTD-942-0642A
...
32
Control Cable (brake) MTD-946-0957
...
33
Hinge Pin MTD-747-0710A

OEM-190-110 (2007)

...

No Parts Available for this Schematic

...
...
...
...
...
