BlackMax 12AVD6RQ719 (2016) Self-Propelled Walk-Behind Mower

Model: 12AVD6RQ719 (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

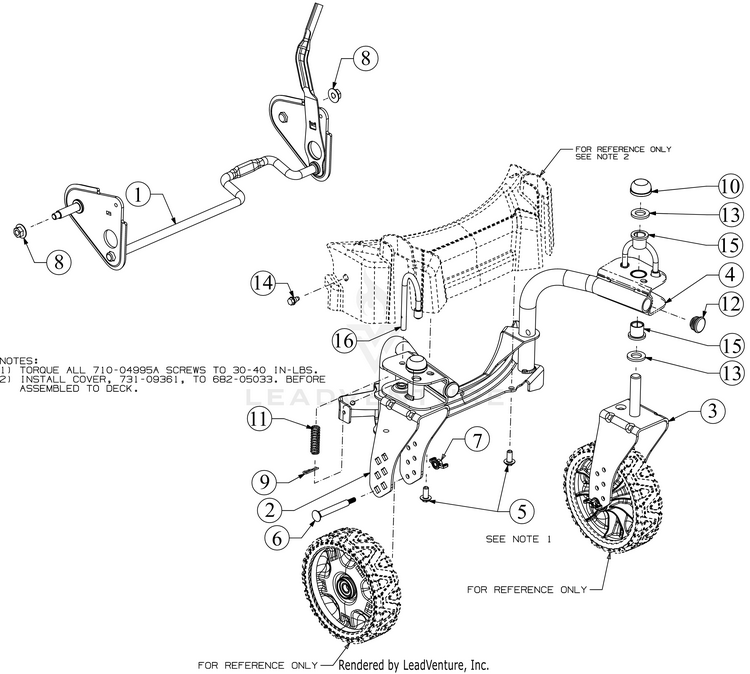

Axle Assembly

...
...
1
AXLE ADJUSTMENT (REAR) MTD-611-04192A
...
2
CASTER BRACKET (RH) POWDER BLACK MTD-682-9024A-0637
...
3
CASTER BRACKET (LH) POWDER BLACK MTD-682-9026A-0637
...
4
CASTER BRACKET ASSEMBLY MTD-687-05033-0637
...
5
SCREW 5/16-14 x .750 MTD-710-04995A
...
6
CASTER AXLE MTD-911-1146
...
7
WING NUT MTD-712-0397A
...
8
FLANGE LOCK NUT MTD-712-04217
...
9
Hairpin Clip MTD-714-0104
...
10
PUSH CAP MTD-726-0214
...
11
COMPRESSION SPRING MTD-932-0306A
...
12
END PLUG MTD-735-0246A
...
13
FLAT WASHER MTD-736-0366
...
14
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
15
BEARING:FLANGE .631 ID MTD-741-0685
...
16
LOCK PIN MTD-747-0924
...
...
...
...
...
