BlackMax 12AVD6RQ719 (2016) Self-Propelled Walk-Behind Mower

Model: 12AVD6RQ719 (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

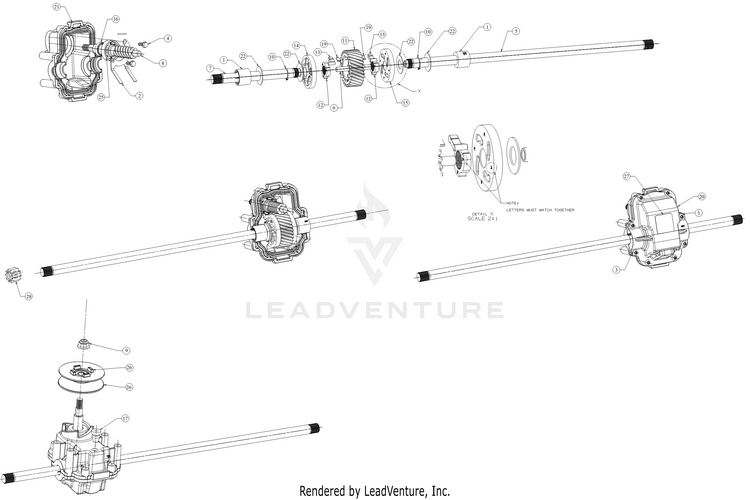

Transmission Assembly

...
...
1
OIL SEAL MTD-721-04107A
...
2
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
3
SCREW .159 x .610 MTD-710-04329
...
4
SCREW .159 x .43 MTD-710-04374
...
5
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
6
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
7
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
8
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
9
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
10
SNAP RING FOR .500 MTD-716-0865
...
11
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
12
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
13
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
14
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
15
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
16
OIL SEAL MTD-721-04107A
...
17
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
18
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
19
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
20
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
21
N/A (Not Serviceable; Order Part Number 918-06038) MTD-NA
...
22
FLAT WASHER .508X1.000X.040 MTD-736-04224
...
25
BALL BEARING MTD-741-04116
...
26
HALF PULLEY 2.5 OD MTD-756-05007
...
27
TRANSMISSION COVER MTD-731-08175
...
28
SPUR GEAR 9T MTD-917-04849
...
xx
TRANSMISSION ASSEMBLY (Not Shown) MTD-918-06038
...
...
...
...
...
