Bissell BGUPRO14T Upright Vacuuum

Model: BGUPRO14T

Save
 Part Not Listed?Part Not Listed?
product name

Bissell BGUPRO14T

...
...
1
Handle Left And Right BIS-2031660
...
2
Tube Oval Aluminum ORE-01-0012-0
...
3
Screw 4 X 10 ORE-KOR00-0002-7
...
4
Screw 4 X 20 BSC-00-0002-9
...
5
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3M
...
6
Holder Tool BSC-01-0011-0
...
7
Hose Stretch 50Cm 32Mm Black ORE-02-0024-1
...
7A
Complete Hose Kit Assembly BSC-S-02-1541-2
...
8
Seal Hose Coupling 115 X 5 X 2 BSC-02-0027-2
...
9
Hose End BIS-2031664
...
10
Hose Coupling W/O Seal Black BIS-2031663
...
11
Hose Clip With Lip Black BIS-2031661
...
12
Tube Vacuum Indicator BSC-04-0007-0
...
13
Hose Cuff 32 Mm Black BIS-2031662
...
14
Warning Sticker Electro Shock BSC-06-0189-5
...
15
Switch 4P Light Green 0/I ORE-04-0009-30
...
16
Wire Black 1Mm2 220Mm F/F Csa + Pvc C.I. ORE-04-0082-30
...
17
Wire White 1Mm2 220Mm F/F Csa + Pvc C.I. ORE-04-0082-400
...
18
Top Indicator Paper Bag Full BSC-04-0011-0
...
19
Main Wire 120/230Volt New + Indicator ORE-04-0082-110
...
20
Gasket 6 X 5Mm Neopr.Sealed Zk. BSC-00-0087-1
...
21
Electric Cover ORE-04-0021-0
...
22
Screw 3.5 X 16 ORE-KOR00-0002-0
...
23
Cable Restraint Assembly ORE-S-03-0175-0Q
...
23A
Cable Restrain 1/2 Part Can Si BSC-03-0038-0
...
23B
Metal Ring Diam. 30Mm 1/2 Part BIS-2031665
...
23C
Cable Restrain 1/2 Part Cable BSC-03-0041-0
...
24
Thumb Screw 5 X 40 ORE-KOR04-0103-0
...
25
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3M
...
26
Antistatic Cover ORE-04-0036-0
...
27
Antistatic Discharge BSC-04-0045-0
...
28
Antistatic Wire 50 Mm R/Ver Csa BSC-04-0045-9
...
29
Wand 32Mm Alu+Ring Telescopic BSC-S-02-0001-8-63
...
30
Recept Inlet 3P For C6/9/Mjp BSC-75-0002-8
...
31
Wire White 1Mm2 220Mm F/F Csa + Pvc C.I. ORE-04-0082-400
...
32
Wire Black 1Mm2 220Mm F/F Csa + Pvc C.I. ORE-04-0082-300
...
33
Wire, Gr/Yellow. 100Mm F/F Csa ORE-04-0082-7
...
34
Wand Locker Yellow ORE-04-0042-8
...
35
Rear Body Handle BSC-04-0043-0
...
36
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3
...
37
Cable Hook External Black New BIS-2037775
...
38
Screw Hexagon M 8 X 30 BSC-KOR61-0107-3
...
40
Washer, Plain, M8X30 Master Pk BSC-KOR61-0107-3M
...
41
Nut Nylon M8 BSC-KOR61-0107-2
...
42
Paper Bag Mount BSC-KOR-S040153-0
...
43
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3
...
44
Foam Motor BSC-04-0066-0
...
45
Dust Filter Holder BSC-04-0058-0
...
46

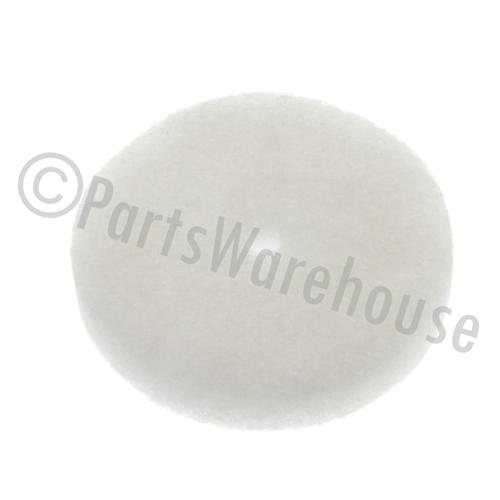

Motor Filter Round 107 X 5Mm ORE-04-0060-0
...
47
Mounting Block Motor BSC-05-0089-0
...
48
Gasket Motor Housing 1 ORE-04-0087-1
...
49
Gasket Motor Housing 2 ORE-04-0087-2
...
50
Motor Housing BSC-KOR-S040086-0
...
51
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3M
...
52
Washer Plain M4 Steel ORE-KOR00-0095-0M
...
53
Screw 3 X 8 BSC-KOR00-0002-41
...
54
Door Restrain BIS-2037780
...
55
Wir Bl1Mm2 200Mm Pl/Pl Csa BSC-04-0082-9
...
56
Motor D2 1000W 120V Vpd Ametek BSC-05-0082-41
...
57
Top Rubber Motor BSC-05-0065-0
...
58
Motor Grill BSC-04-0064-0
...
59
Rear Body Grey BSC-KOR-P040052
...
59
Rear Body Assembly Grey [] BSC-P-04-0052-39
...
60
Door Hinge Shaft ORE-04-0088-0
...
61
Screw 3 X 8 BSC-KOR00-0002-41
...
62
Front Door Grey [] BIS-2037776
...
63
Foam Motor Vacuum BSC-04-0053-0
...
64
Filter Laminated Motor Exhaust BSC-04-0055-0
...
65
Supr. Rfi Hoov With Term ORE-05-0077-2
...
66
Switch Actuator Yellow BSC-04-0074-8
...
67
Switch, Normaly Open ORE-04-0076-0
...
68
Screw 3.5 X 13 BSC-KOR00-0002-42
...
69
3 Pole Model Csa Pl/Pl/Pl BIS-2031666
...
70
Bump Celrubber Epdm Black Zkl BSC-06-0063-0
...
71
Inside Door Seal 17.9 Cm ORE-06-0061-1
...
72
Spring Door Opener ORE-06-0056-0
...
73
Shaft Locker Cover ORE-06-0055-0
...
74
Door Opener [] ORE-06-0028-19
...
75
Door Locker BIS-2031669
...
76
Logo Print Front Door 2-C [] ORE-06-0189-3725
...
77
Locking Pedal Yellow BIS-2031668
...
78
Spring E17 X 123 BSC-KOR11-0150-0
...
79
Shaft Pedal BSC-11-0070-0
...
80
Thumb Screw 5 X 20 Black BIS-2037774
...
81
Nordlock Lockwashers M5 Double BSC-KOR00-0097-1
...
82
Screw Short Left Side BIS-2031670
...
83
Fiber Ring 11 X 4.5 X 1 BSC-KOR11-0104-0M
...
84
Bracket BSC-2037777
...
85
Roller Support Right *Open* BIS-2031678
...
86
Roller Assembly Up350 W/Strip BSC-S-17-1112-0
...
86
Roller Assembly Up460 W/Strip BIS-2037745
...
87
Roller Support Left *Closed* BIS-2031677
...
88
Brush Driver BIS-2031676
...
89
Gasket 6X5Mm Neopr.Sealed Zk. BSC-00-0087-1
...
90
Brush Bumper Up350 Grey [] ORE-12-0144-390
...
90
Brush Bumper Up460 Grey [] ORE-12-0143-390
...
91
Brush Cover Assembly Up350 [] BSC-P-12-0088-3
...
91
Brush Cover Assembly Up460 [] ORE-P-12-0090-19
...
92
Screw 4 X 10 ORE-KOR00-002-7
...
93
Brush Strip Acces ORE-12-0116-0
...
95
Bearing Bus Short ORE-12-0099-0
...
96
Insert Let Cover [] BSC-12-0073-3
...
97
Led Cover ORE-12-0083-0
...
98
Latch Break BIS-2037779
...
99
Bearing Bus Long BIS-2031671
...
100
Front Castor Shaft Fixing Plate BIS-2031672
...
101
Screw 4 X 10 ORE-KOR00-0002-7
...
102
Cable Usa 3P-A18 + Clip, 50 Ft ORE-03-0026-100
...
103
Wire Bl. 1Mm2 150Mm F/F Csa ORE-16-0082-6
...
104
Front Castor Adjustment Button ORE-S-14-0141-0
...
105
Switch Normaly Closed BIS-2037778
...
106
Spring T21 X 76 ORE-KOR14-0139-0Q
...
107
Washer Plain M4 Steel ORE-KOR00-0095-0M
...
108
Screw 4 X 10 ORE-KOR00-0002-7
...
109
Felt For Switch Housing 50X8X4 BSC-14-0116-1
...
110
Felt Guiding Plate 124X4.8X3.6 BSC-13-0101-0
...
111
Swivel Guiding Plate W/Felt BSC-KOR-S130105-1
...
112
Swivel Neck 32 Mm ORE-13-0102-1
...
113
Felt Guiding Plate 124X4.8X3.6 BSC-13-0101-0
...
114
Switch Housing W/O Felt ORE-14-0114-0
...
115
Screw 4 X 16 Flanch Head ORE-KOR00-002-3M
...
116
Front Castor Shaft Fixing Plat BSC-14-0104-0
...
117
Screw 3.5 X 25 BIS-2037770
...
118
Swivel Guiding Plate W/Felt BSC-KOR-S130105-1
...
119
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3
...
120
Electron.Board Csa 120 V. 3.0A BIS-2037772
...
121
Shaft For Rear Castor BIS-2031674
...
122
Rear Castor With Bearing BIS-2031673
...
123
Circlip 7 Mm ORE-KOR14-0136-3M
...
124
Front Castor Shaft ORE-14-1401-0
...
125
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3M
...
126
Front Castor (Rtp) Version 2 ORE-14-0138-2
...
127
Starlock 6Mm ORE-KOR14-1401-5M
...
128
Front Castor Shaft Fixing Plate BSC-14-0104-0
...
129
Screw 4 X 10 ORE-KOR00-0002-7
...
130
Belt Driver (Brush Motor) BIS-2031675
...
131
Rubber Ring For Brush Motor BSC-16-0125-0
...
132
Gasket Brush Motor BSC-16-0121-0
...
133
Clip For Thermo Fuse ORE-16-0165-0
...
134
Brush Motor Assembly 115V 175W BIS-2037765
...
135
Wire ORE-16-0072-21
...
136
Foam Brush Motor BIS-2037766
...
137
Single Tooth Belt (16.0124.0) BIS-2037771
...
138
Brush Protector Wire ORE-14-0146-0
...
139
Brush Protector 350 ORE-14-0145-0
...
139
Brush Protector 460 BSC-14-0144-0
...
140
Screw 5 X 40 ORE-KOR00-0002-5M
...
141
Screw 4 X 16 Flanch Head ORE-KOR00-0002-3M
...
142
Brush Strip 350 Black Nylon BSC-17-0117-0
...
142
Brush Strip 460 Black BIS-2037758
...
143
Ball Bearing 626Zz ORE-17-0108-0
...
144
Felt For Brush Housing 49 X 14 X 4Mm BSC-14-0116-0
...
145
Connection Bracket 1P BSC-04-0030-01
...
146
Connection Bracket 3P BSC-04-0030-03
...
147
Brush Housing Up350 [] ORE-14-0148-19
...
147
Brush Housing Up460 [] BSC-P-14-0142-3
...
148
Dusting Brush Round BIS-2037761
...
149
Upholstery Brush Tool ORE-40334-01
...
150
Crevice Tool 32Mm BIS-2037760
...
151
18" Pigtail Side Cord ORE-16-0133-74

Bissell BGUPRO14T

...
...
1
Cable Usa 3P/1-Red-15Mtr-S.C. ORE-03-0026-100
...
2
Connection Bracket 3P BSC-04-0030-03
...
2A
Connection Bracket 1P BSC-04-0030-01
...
3
Antistatic Discharge BSC-04-0045-0
...
4
Switch 4P Light Green 0/I ORE-04-0009-30
...
5
Main Wire 120/230Volt Csa New ORE-04-0082-110
...
7
Motor Complete 950W 120V W/W BSC-05-0082-41
...
9
3 Pole Model Csa Pl/Pl/Pl BIS-2031666
...
10
3 Pole New Mod Csa With Term Eye ORE-16-0133-74
...
11
Switch Normaly Closed ORE-16-0099-0
...
12
Brush Motor Assembly 115V 175W BIS-2037765
...
12A
Carbon Brush With Spring BSC-16-0129-2
...
13
Electron.Board Csa 120 V. 3.0A BIS-2037772
...
14
Wire White 1Mm2 220Mm F/F Csa + Pvc C.I. BSC-04-0082-40
...
15
Wire Black 1Mm2 220Mm F/F Csa + Pvc C.I. ORE-04-0082-30
...
16
Wire Green 190 Mm F/Ver Csa BSC-04-0082-50
...
17
Wire Black 50 Mm R/Ver Csa BSC-04-0045-9
...
18
Wire Green 200 Mm Pl/Pl Csa BSC-04-0082-8
...
19
Wir Bl1Mm2 200 Mm Pl/Pl Csa BSC-04-0082-9
...
20
Wire Green 100 Mm F/F Csa ORE-04-0082-7
...
23
Wire Bl. 1Mm2 150Mm F/F Csa ORE-16-0082-6
...
24
Wire Yellow 125 Mm F/Vst Csa ORE-16-0072-21
...
25
Supr. Rfi Hoov With Term ORE-05-0077-2
...
26
Motor Wire Csa BSC-04-0072-6
...
27
Recept Inlet 3P For C6/9/Mjp BSC-75-0002-8
...
...
...
...
...
