Big O Mdl 824 Garden Tractor

Model: Big O Mdl 824

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

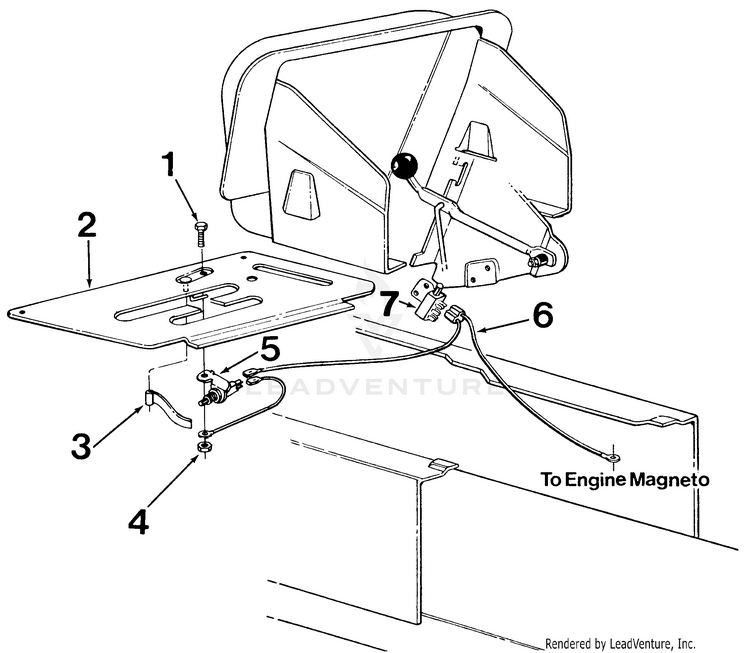

Safety Reverse Switch

...
...
1
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
2
Transmission Cover Ass'y. MTD-14466
...
3
Switch Actuator Spring Lever MTD-732-0405
...
4
HEX NUT 1/4-20 MTD-912-0287
...
5
SWITCH MTD-925-0268
...
6
Reverse Lockout Wire Harness MTD-725-0764
...
7
Safety Switch MTD-925-0465A
...
...
...
...
...
