Big O Mdl 824 Garden Tractor

Model: Big O Mdl 824

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

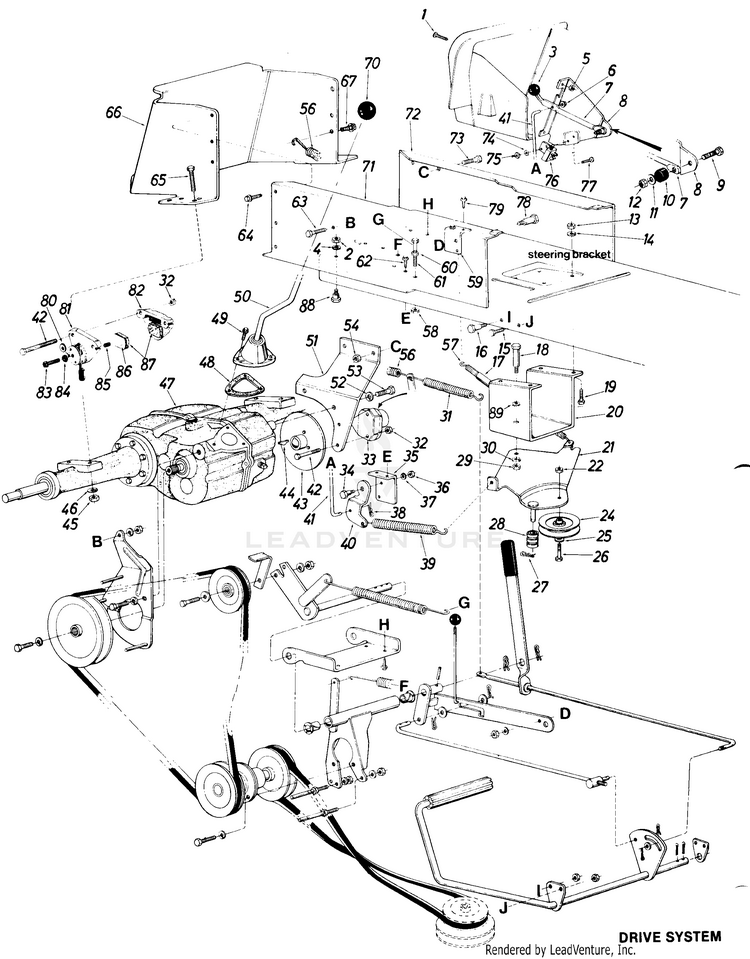

Drive System

...
...
1
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
2
HEX NUT 1/4-20 MTD-912-0287
...
3
Knob MTD-920-0232
...
4
L-Wash. 1/4" I.D. MTD-936-0329
...
5
Hex Sems Nut 1/4-20 Thd.* MTD-712-0271
...
6
PUSH NUT MTD-726-0106
...
7
BLADE CLUTCH LEVER MTD-747-0513
...
8
DECK CLTCH CONT. BRKT. MTD-13950
...
9
Hex Scr. 1/4-20 x 1.25" Lg.* MTD-710-0106
...
10
RUBBER WASHER MTD-735-0126A
...
11
Fl-Wash. 1/4" I.D. x .75" O.D. x .057 MTD-736-0173
...
12
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201
...
16
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
17
CONVOLUTED CONDUIT MTD-731-0757-4
...
18
Shoulder Bolt MTD-938-0155
...
19
Hex Scr. 5/16-18 x 1.00" Lg. MTD-710-0376
...
20
BRACKET-ID MTD-13826
...
21
Idler Brkt. Ass'y. MTD-13893
...
22
Hex L-Nut 3/8-16 Thd. MTD-712-0181
...
24
Idler Pulley MTD-756-0487
...
25
Fl-Wash. 3/8" I.D. MTD-736-0300
...
26
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
27
Hairpin Cotter 5/16" Rod MTD-714-0104
...
28
Spacer MTD-948-0278
...
29
HEX NUT 5/16-18 MTD-712-3010
...
30
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
Extension Spring .50" O.D. x 6.5" Lg. MTD-932-0260
...
32
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
33
DISC BRAKE ASS'Y. COMP. MTD-761-0178
...
34
Shoulder Bolt MTD-938-0155
...
35
PARKING BRAKE CAM MTG. BRKT. MTD-13833
...
36
HEX NUT 5/16-18 MTD-712-3010
...
37
Lock Wash. 5/16" I.D. MTD-936-0119
...
38
Hairpin Cotter 5/16" Dia. MTD-714-0104
...
39
Spring, Extension MTD-932-0478
...
40
BRACKET-DECK CONTROL MTD-13887A
...
41
DECK CONTROL ROD MTD-747-0307
...
42
Screws 3/8-16X2.5 MTD-710-0859
...
43
BRAKE DISC ASSEMBLY (For Brake) MTD-761-0142
...
44
KEY-HI-PRO-3/16 x 3/4 DIA 1.0 MTD-714-0137
...
45
Hex Nut 3/8-16 Thd. * MTD-712-0798
...
46
L-Wash. 3/8" Scr.* MTD-736-0169
...
47
Transaxle (See Breakdown) MTD-NA
...
48
Part of Ref. No. 47 MTD-NA
...
49
Part of Ref. No. 47 MTD-NA
...
50
Part of Ref. No. 47 MTD-NA
...
51
Transaxle Support MTD-13012
...
52
L-Wash. 3/8" Scr. MTD-736-0169
...
53
Hex Scr. 3/8-16 x .75" Lg. MTD-710-0216
...
54
Hex L-Nut 3/8-16 Thd. MTD-712-0375
...
56
Ext. Spring-Brake Return MTD-732-0157
...
57
Spring, Extension, .50 Dia. x 6.37 MTD-732-0308A
...
58
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
59
PARKING BRAKE CAM MTG. BRKT. MTD-13833
...
60
HEX NUT 5/16-18 MTD-712-3010
...
61
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
62
Hex Thd. Rolling Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
63
Hex Scr. 3/8-16 x .75" Lg. MTD-710-0216
...
64
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
65
Hex Scr. 3/8-16 x 1.50" Lg. MTD-710-0344
...
66
HITCH PIATE MTD-13813
...
67
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
70
Knob MTD-920-0232
...
71
Side Panel Upper Frame-R.H. MTD-13848
...
72
Side Panel Upper Frame-L.H. MTD-13847
...
73
Hex Scr. 3/8-16 x .75" Lg. MTD-710-0216
...
74
EXTERNAL WASHER #10 MTD-936-0147
...
75
Hex Nut #10-24 Thd. MTD-712-0121
...
76
Safety Switch (Deck) MTD-925-0465A
...
77
Truss Mach. Scr. #10-24 x .50" Lg.* MTD-710-0473
...
78
Shoulder Bolt MTD-938-0155
...
79
Hex Thd. Rolling Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
80
Washer MTD-HU-20-9764
...
81
11ousing with Lever & Pin MTD-HU-B003770066
...
82
ANVIL MTD-HU-16-13807
...
83
PIN-ADJ MTD-HU-A611030003
...
84
Hex Jam Nut 7/16-20 MTD-912-0240
...
85
PIN-ACTUAT MTD-HU-39-13774
...
86
PLATE-BACKI MTD-HU-25-13808
...
87
Lining - Brake MTD-761-04060
...
88
SHOULDER SCREW MTD-938-0255
...
89
Spr. Wash. 7/16" I.D. MTD-936-0141
...
...
...
...
...
