Big O Mdl 698 Lawn Tractor

Model: Big O Mdl 698

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

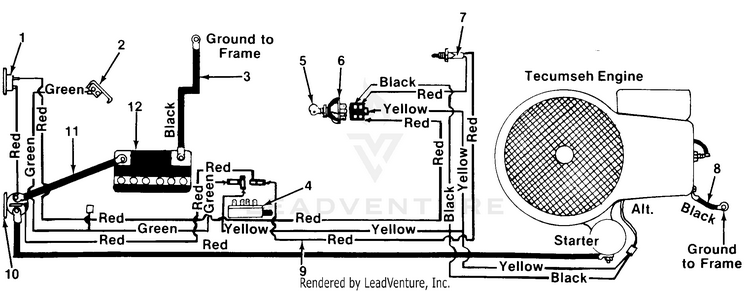

Electrical, Without Headlights

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
SAFETY SWITCH KIT (Reverse) MTD-725-0759
...
3
WIRE (Negative-Black) MTD-725-0975
...
4
Safety Switch (P.T.O.) MTD-725-0803B
...
5
Ignition Key MTD-725-0102
...
6
Ignition Switch MTD-925-0267B
...
7
SWITCH (Clutch) MTD-925-0268
...
8
WIRE MTD-725-0976
...
9
Wire Harness MTD-725-0968
...
10
Solenoid MTD-925-0771
...
11
WIRE W/BOOT (Positive-Red) MTD-725-0926
...
12
BATTERY MTD-753-0607
...
...
...
...
...
