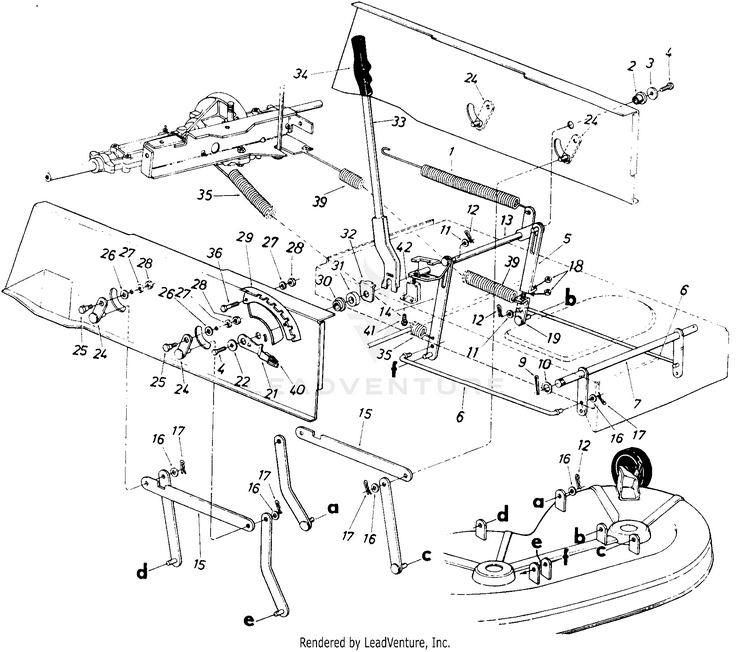

Big O Mdl 698 Lawn Tractor

Model: Big O Mdl 698

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
EXTENSION SPRING MTD-932-0307A
...
2
Flange Bearing .632 ID MTD-741-0487C
...
3
Fl-Wash. .344" I.D. x 1.125" MTD-736-0231
...
4
Screw, 5/16-18 x .625 MTD-710-0604A
...
5
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
6
ROD-STABILIZER MTD-711-0738
...
7
STABILIZER SHAF T ASS'Y. MTD-14647
...
9
Cotter Pin 1/8" Dia. x 1-1/4" MTD-714-0470
...
10
Fl-Wash. .635" I.D. x 1.12" MTD-736-0156
...
11
Fl-Wash. .531" I.D. x .940" MTD-736-0192
...
12
Inter. Cotter Pin .50" Dia. MTD-714-0101
...
13
LIFT SHAFT ASS'Y. MTD-14641
...
14
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
15
CONNECTING ROD MTD-09735
...
16
Fl-Wash. .40" I.D. x .88" MTD-736-0300
...
17
Inter. Cotter Pin-3/8" Rod MTD-714-0104
...
18
Jam Nut, 3/8-16 MTD-912-3008
...
19
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
21
HEIGHT ADJUSTMENT LEVER MTD-732-0412
...
22
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 MTD-736-0231
...
24
LINK ASSEMBLY- MTD-09721
...
25
Shld. Bolt .437" Dia. x .180" Lg. (5/16-18) MTD-738-0140
...
26
Fl-Wash. .344" I.D. x .62" MTD-736-0264
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Index Brkt. MTD-14633
...
30
FLANGE WASHER MTD-736-0341
...
31
RUBBER WASHER MTD-735-0216
...
32
Retainer Washer-Lift Handle MTD-14654
...
33
Lift Handle Ass'y. MTD-14645
...
34
LIFT HANDLE GRIP (Lift Handle) MTD-720-0157
...
35
EXTENSION SPRING MTD-732-0440
...
36
Hex Bolt 5/16-18 x .75"* MTD-710-0118
...
39
EXTENSION SPRING (30" & 36" RD Decks Only) MTD-732-0440
...
40
KNOB-HGT ADJ-BLACK MTD-08540
...
41
Hex AB-Tap Scr. #10 x .50" MTD-710-0351
...
42
Safety Switch MTD-725-0803B
...
...
...
...
...
