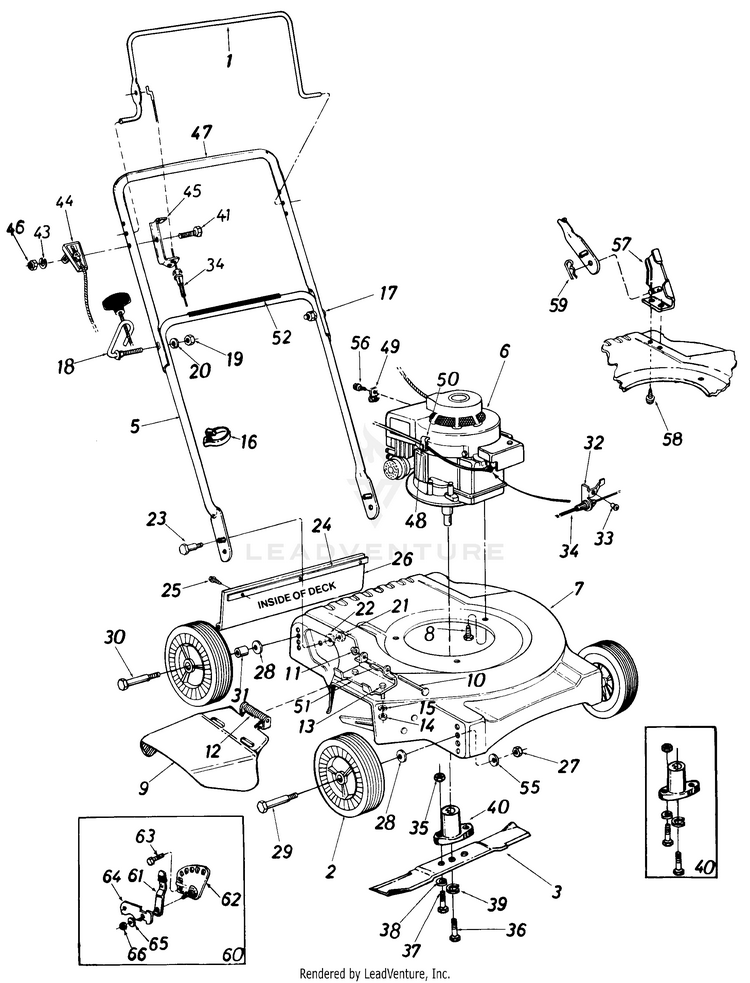

Belknap B062-5 (1985) Push Walk-Behind Mower

Model: B062-5 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
HANDLE-CONTROL MTD-747-0500
...
2
Plastic Wheel Ass'y. MTD-NA
...
xx
7 x 1.5-PLASTIC RIM MTD-734-0840
...
xx
WHEEL ASSEMBLY MTD-734-0841
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1176
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1177
...
xx
7" FRONT WHEEL ASS'Y. (STEEL WHEEL) (With 1/2" I.D. Plastic Bearings: Part No. 741-0262) MTD-734-0892
...
xx
8" REAR WHEEL ASS'Y. (STEEL WHEEL) (With 1/2" I.D. Plastic Bearings: Part No. 741-0262) MTD-734-0894
...
3
22" BLADE MTD-942-0125B
...
5
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
6
Engine MTD-NA
...
7
DECK ASSEMBLY-22IN (060) MTD-16035
...
xx
22" Deck Ass'y. (062) MTD-14946
...
8
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
9
CHUTE DEFLECTOR MTD-931-1034B
...
10
PIVOT PIN MTD-711-0555
...
11
PUSH NUT MTD-726-0106
...
12
TORSION SPRING MTD-732-0253
...
13
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
CABLE TIE MTD-726-0192
...
17
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
18
OPE GUIDE BOLT MTD-710-0842
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
Lock Wash. 5/16" I.D. MTD-936-0119
...
21
Hex Ins. L-Nut 5/16-18 Thd. (060) MTD-712-0429
...
22
Bell-Wash. .345" I.D. x .88" O.D. (060) MTD-736-0242
...
23
Shld. Bolt .437" Dia. x .268" Lg. (060) MTD-738-0296
...
24
STRIP-RETA MTD-14836
...
25
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
26
FLAP-RR MTD-731-0667
...
27
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
28
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
29
Axle Bolt (060) MTD-738-0213
...
xx
Axle Bolt (062) MTD-738-0102
...
30
SHOULDER SCREW .498 DI (060) MTD-738-0509
...
xx
Axle Bolt (062) MTD-738-0102
...
31
Spacer (060) MTD-750-0515
...
32
BRACKET-CA MTD-14924
...
33
RIVET MTD-728-0171
...
34
Control Cable 43.0" Lg. (B&S) MTD-946-0551
...
xx
THROTTLE CABLE (Tecumseh) MTD-746-0476
...
35
Hex Nut 5/16-24 Thd. MTD-912-3057
...
36
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
37
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
L-Wash. 3/8" I.D. Heavy Duty MTD-736-0217
...
40
BLADE ADAPTER KIT MTD-753-0343B
...
41
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
43
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
44
Throttle Control Ass'y. Comp. MTD-946-0645A
...
45
BRACKET-CA MTD-16201
...
46
Hex Nut 1/4-28 Thd. MTD-712-0138
...
47
UPPER HANDLE MTD-749-0538
...
xx
UPPER HANDLE MTD-749-0536
...
48
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
49
CLAMP-CONDUIT MTD-751-0369
...
50
CABLE CLAMP MTD-12894
...
51
ADAPTER PLATE MTD-11130
...
52
LABEL-10/2 MTD-777-3455
...
55
Bell-Wash. .39" I.D. x 1.13" O.D. (060) MTD-736-0331
...
xx
BELL WASHER (062) MTD-936-0356
...
56
Hex AB-Tap Scr. #8 x .38" MTD-710-0227
...
57
BRACKET AS (062) MTD-12935
...
xx
BRACKET ASSY-HDLE (Not Shown) (062) MTD-12936
...
58
Hex Self-Tap Scr. 5/16-18 x .50" Lg. (062) MTD-710-0603
...
59
Hairpin Cotter (062) MTD-714-0104
...
60
ADJUSTER-H (062) MTD-10941
...
xx
ADJUSTER-H (Not Shown) (062) MTD-10938
...
61
LEVER ASSEMBLY-SPRING (062) MTD-14082
...
xx
PLATE ASSEMBLY (062) MTD-10935
...
62
PLATE ASSEMBLY (Not Shown) (062) MTD-10934
...
63
HEX SCREW SEMS 3/8-16 x .62 (062) MTD-710-0209
...
64
BAR-WHEEL PIVOT (062) MTD-10937
...
65
Bell-Wash. .40" I.D. x 1.13" O.D. (062) MTD-NA
...
66
Elastic Stop Nut (062) MTD-NA
...
xx
Hardware Pack (060) MTD-8060-000-5
...
xx
Hardware Pack (062) MTD-8062-000-5
...
...
...
...
...
