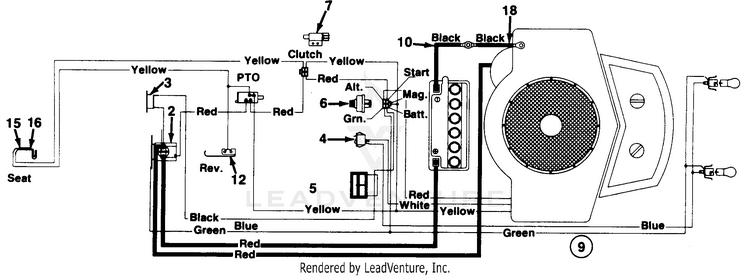

Agway by MTD Mdl 130-689G019/822-245 Lawn Tractor

Model: Agway Mdl 130-689G019/822-245

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Parts08

...
...
xx
BATTERY 275CCA MTD-725-1430
...
2
Solenoid MTD-925-1426A
...
3
CIRCUIT BREAKER MTD-753-0685
...
xx
CIRCUIT BREAKER 20 AMP (Vanguard Engine Only) MTD-725-1382
...
4
Light Switch MTD-925-0634
...
5
Ammeter MTD-925-0925
...
6
Ignition Switch MTD-925-0267B
...
7
SWITCH (Clutch) MTD-925-04039
...
xx
WIRE ASSEMBLY (RED) (#6X32.5) MTD-629-0740
...
xx
WIRE ASSEMBLY (RED) (#6X32.5) (Vanguard Engine Only) MTD-629-0740
...
9
WIRE HARNESS W/TAIL LIGHTS (Units with Taillights) MTD-725-1500
...
xx
WIRE HARNESS (Units without Taillights) MTD-725-1501
...
xx
Wire Harness (Vanguard Engine Only) MTD-725-1510
...
10
6 GA. BLACK WIRE MTD-725-0977
...
xx
Safety Switch (Deck) MTD-725-0803B
...
12
SAFETY SWITCH KIT (Reverse) MTD-725-0759
...
xx
HEADLAMP SOCKET MTD-925-1058A
...
xx
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch (Seat) MTD-925-1303
...
16
Safety Switch (Seat) MTD-725-1439
...
xx
BULB (Units with Taillights) MTD-725-3020
...
18
Taillight (Units with Taillights) MTD-725-3018
...
xx
TAIL LIGHT HARNESS (Units with Taillights) MTD-725-1380
...
xx
Electric Wire-27" Lg. MTD-725-1080
...
xx
WIRE MTD-725-0980
...
...
...
...
...
