Agway by MTD 13AM673G019 (1998) Lawn Tractor

Model: 13AM673G019 (1998)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

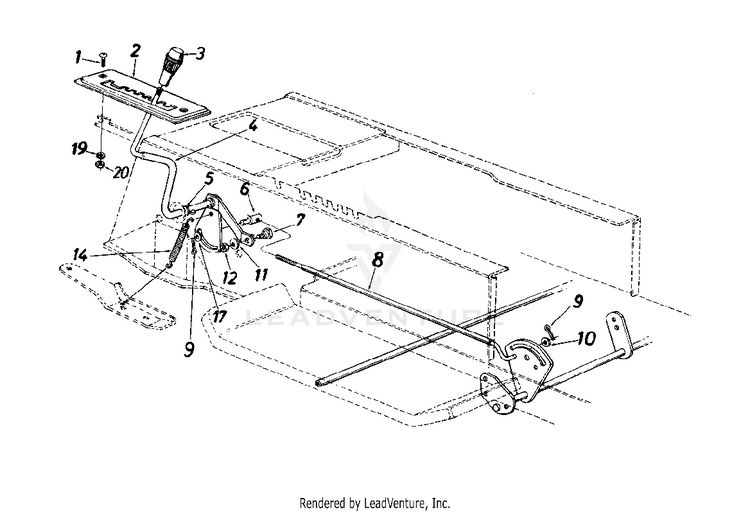

Transmission/Lever Assembly

...
...
1
SPRING .50IDX 1.00 MTD-932-0645
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Lock Wash. 5/16" I.D. MTD-936-0119
...
4
SUPPORT-SHIFT LEVE MTD-17956
...
5
Ferrule MTD-911-0198
...
6
SPEED CONTROL ROD MTD-747-0787
...
7
SPACER-1.560 1D MTD-750-0662
...
8
Bell-Wash. .505" I.D. x 1" MTD-736-0253
...
9
Fl-Wash. .385" I.D. x .87" MTD-736-0300
...
10
LEVER-SPEED SELECT MTD-17888A
...
11
Knob MTD-920-0232
...
12
SPACER-1.46 LG MTD-750-0913
...
?13
Fl-Wash. .345" I.D. x .88" MTD-736-0159
...
14
Hex Bolt 5/16-18 x 3.25" Lg. MTD-710-3056
...
?15
Cotter Pin 3/32" Dia. x 1" MTD-714-0111
...
?16
Fl-Wash. .469" I.D. x .88" MTD-736-0226
...
17
Fl-Wash. .34" I.D. x 2.25" MTD-736-0418A
...
?18
Speed Nut 5/16-18 Thd. MTD-726-0201
...
19
UNKNOWN MTD-NA
...
20
UNKNOWN MTD-NA
...
...
...
...
...
