Agway by MTD 136G695G019 (1996) Lawn Tractor

Model: 136G695G019 (1996)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

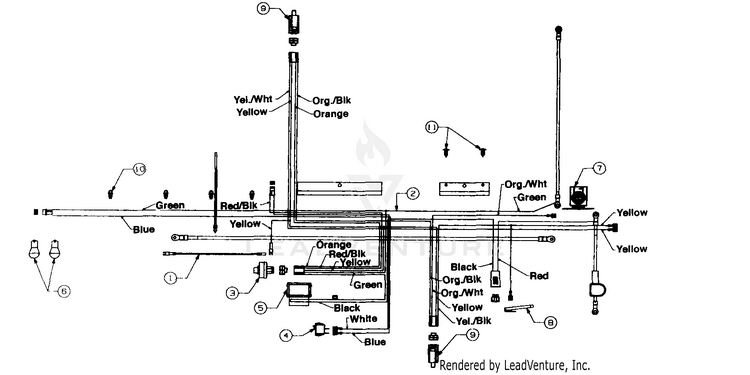

Electrical/Switches

...
...
1
Harness Adapter (Mag.) MTD-629-0207
...
2
HARNESS New Part MTD-929-0302E
...
xx
HARNESS ASSEMBLY New Part MTD-629-0301E
...
3
Ignition Switch MTD-925-0267B
...
4
Light Switch (Optional) MTD-925-0634
...
5
Ammeter (Optional) MTD-925-0925
...
6
Miniature Lamp 12V Socket Type MTD-925-0963
...
7
Solenoid MTD-925-1426A
...
8
Safety Switch (Reverse) MTD-725-1643
...
9
Safety Switch MTD-925-1657A
...
10
WIRE RETAINER CLIP New Part MTD-725-1711
...
11
Ratchet New Part MTD-726-3046
...
...
...
...
...
