Agway by MTD 136G695G019 (1996) Lawn Tractor

Model: 136G695G019 (1996)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

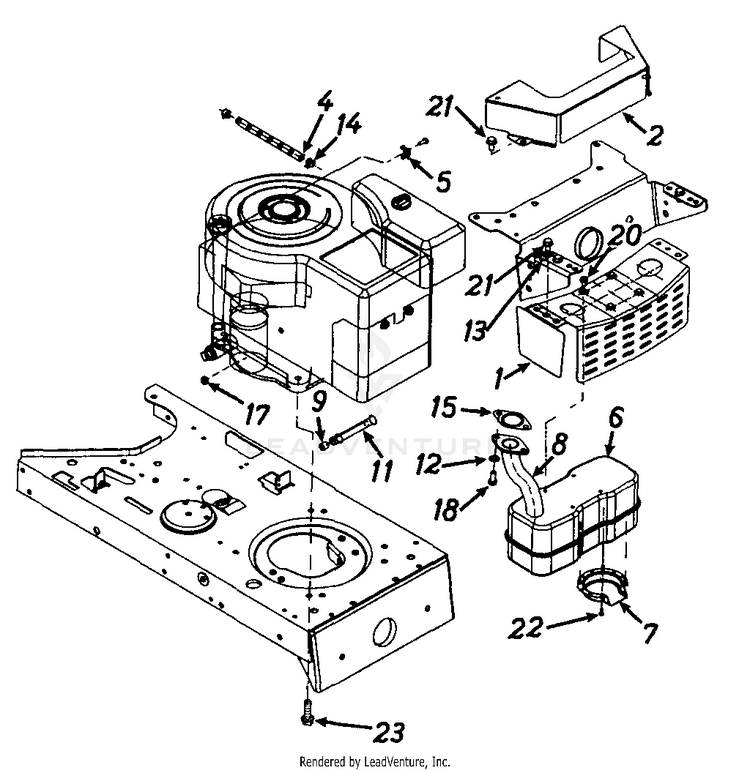

Muffler Assembly

...
...
1
SHIELD BRACKET New Part MTD-783-0385
...
2
HEAT SHIELD MTD-783-0378
...
?3
Muffler Heat Shield New Part MTD-783-0615E-0637
...
4
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
5
Casing Clamp MTD-751B221535
...
6
Single Inlet Muffler MTD-951-0617C
...
7
Muffler Deflector MTD-751-0564B
...
8
Exhaust Pipe MTD-751-0620A
...
9
HEX PIPE PLUG MTD-751-0572
...
11
OIL DRAIN PIPE MTD-737-0286
...
12
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
13
Clamp MTD-726-0272
...
14
Hose Clamp MTD-726-0205
...
15
EXHAUST GASKET MTD-TC-36365
...
17
Hex Sems Nut 1/4-20 Thd New Part MTD-712-0271
...
18
Socket Screw, 5/16-18 x .750 MTD-710-1314A
...
?19
Hex Wash Hd. Tap Scr. #10-32 x .62" Lg. MTD-710-1237
...
20
Hex Wash Hd. TT-Scr 1/4-20 x .5" Lg. MTD-710-0599
...
21
Screw, 5/16-18 x .625 MTD-710-0604A
...
22
Hex Bolt #8-32 x .38" Lg MTD-710-0148
...
23
Hex Wash Hd. TT-Scr 3/8-16 x 1.25" Lg. MTD-710-1315
...
...
...
...
...
