Agway by MTD 136-698D019 (82-2228) (1986) Lawn Tractor

Model: 136-698D019 (82-2228) (1986)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

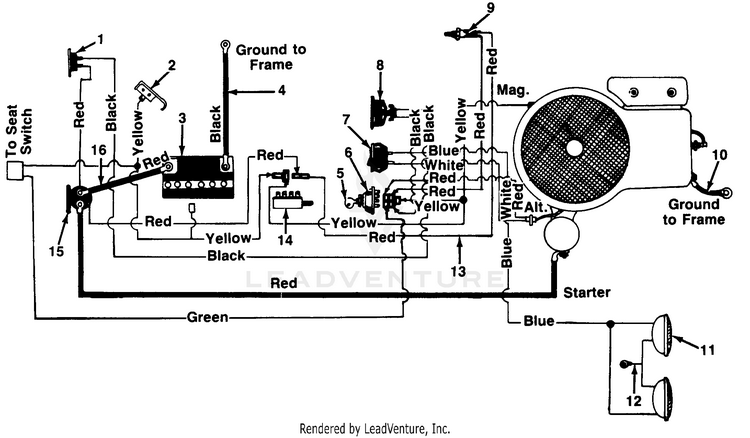

Electrical With Headlights

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
SAFETY SWITCH KIT (Reverse Safety) MTD-725-0759
...
3
BATTERY MTD-753-0607
...
4
WIRE (Black-Negative) MTD-725-0975
...
5
Key MTD-925-0201
...
6
Ignition Switch MTD-925-0267B
...
7
Light Switch MTD-925-0634
...
8
Ammeter MTD-925-0925
...
9
SAFETY SWITCH (Clutch) MTD-725-0577
...
10
WIRE (Black-Engine) MTD-725-0976
...
11
Head Light MTD-925-0222
...
12
WIRE (Headlight) MTD-725-0916A
...
13
WIRE HARNESS MTD-725-1187
...
14
Safety Switch (P.T.O.) MTD-725-0803B
...
15
Solenoid MTD-925-0771
...
16
WIRE W/BOOT (Red-Positive) MTD-725-0926
...
...
...
...
...
