Agway by MTD 136-698D019 (82-2228) (1986) Lawn Tractor

Model: 136-698D019 (82-2228) (1986)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

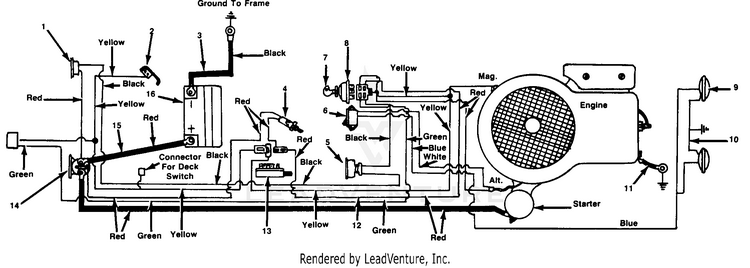

Electrical Peerless Transaxle

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
SAFETY SWITCH KIT MTD-725-0759
...
3
WIRE MTD-725-0975
...
4
SAFETY SWITCH MTD-725-0577
...
5
Ammeter MTD-925-0925
...
6
Light Switch MTD-925-0634
...
7
Key MTD-925-0201
...
8
Ignition Switch MTD-925-0267B
...
9
Head Light MTD-925-0222
...
10
WIRE MTD-725-0916A
...
11
WIRE MTD-725-0976
...
12
WIRE HARNESS MTD-725-1187
...
13
Safety Switch MTD-725-0803B
...
14
Solenoid MTD-925-0771
...
15
WIRE-ELEC MTD-725-0150
...
16
BATTERY MTD-753-0607
...
...
...
...
...
