Agway by MTD 136-698D019 (82-2228) (1986) Lawn Tractor

Model: 136-698D019 (82-2228) (1986)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

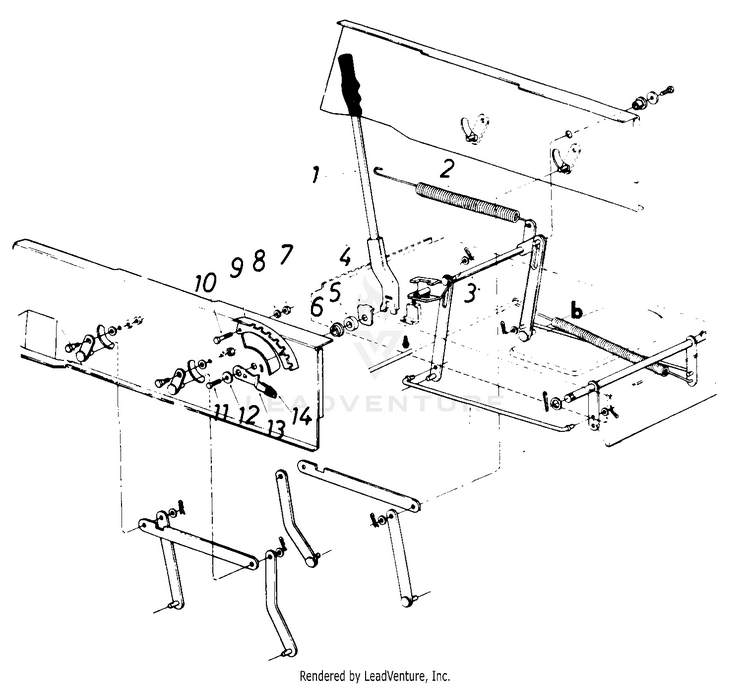

Parts09

...
...
1
Lift Handle Ass'y. MTD-14654
...
2
EXTENSION SPRING MTD-932-0307A
...
3
LIFT SHAFT ASS'Y. MTD-14641
...
4
Retainer Wash.-Lift Handle MTD-14654
...
5
RUBBER WASHER MTD-735-0216
...
6
FLANGE WASHER MTD-736-0341
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
Index Bracket MTD-14633
...
10
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
11
Screw, 5/16-18 x .625 MTD-710-0604A
...
12
Fl.-Wash. .344" I.D. x 1.25" Lg. MTD-736-0231
...
13
BELL WASHER MTD-736-0412
...
14
KNOB-HGT ADJ-BLACK MTD-08540
...
...
...
...
...
