Agway by MTD 135M675G019 (1995) Lawn Tractor

Model: 135M675G019 (1995)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

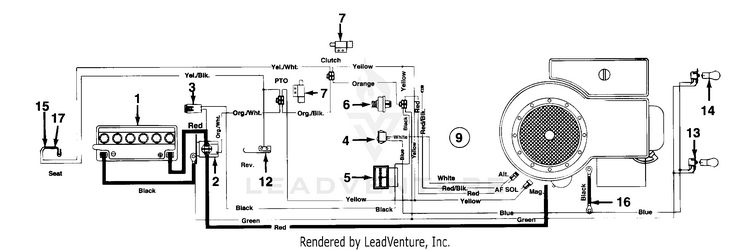

Electrical (O.H.V.)/Switches

...
...
1
BATTERY 275CCA MTD-725-1635
...
2
Solenoid MTD-925-1426A
...
3
Fuse 7.5 Amps MTD-725-1625
...
4
Light Switch MTD-925-0634
...
5
Ammeter MTD-925-0925
...
6
Ignition Switch MTD-925-1396A
...
7
Safety Switch MTD-925-1657A
...
9
WIRE HARNESS MTD-629-0202
...
12
Safety Switch (Reverse) MTD-725-1643
...
13
HEADLIGHT SOCKET (1/4 TURN) Styles 0, 5 MTD-925-1649A
...
xx
SHORT LAMP SOCKET Used on Styles 8, 9 MTD-925-1650
...
xx
SQ HEADLIGHT SOCKET Used on Styles 1, 3, 7 MTD-925-1651
...
14
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch MTD-925-1303
...
16
WIRE MTD-725-0980
...
17
Safety Switch (Seat) MTD-725-1439
...
...
...
...
...
