Agway by MTD 135M675G019 (1995) Lawn Tractor

Model: 135M675G019 (1995)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

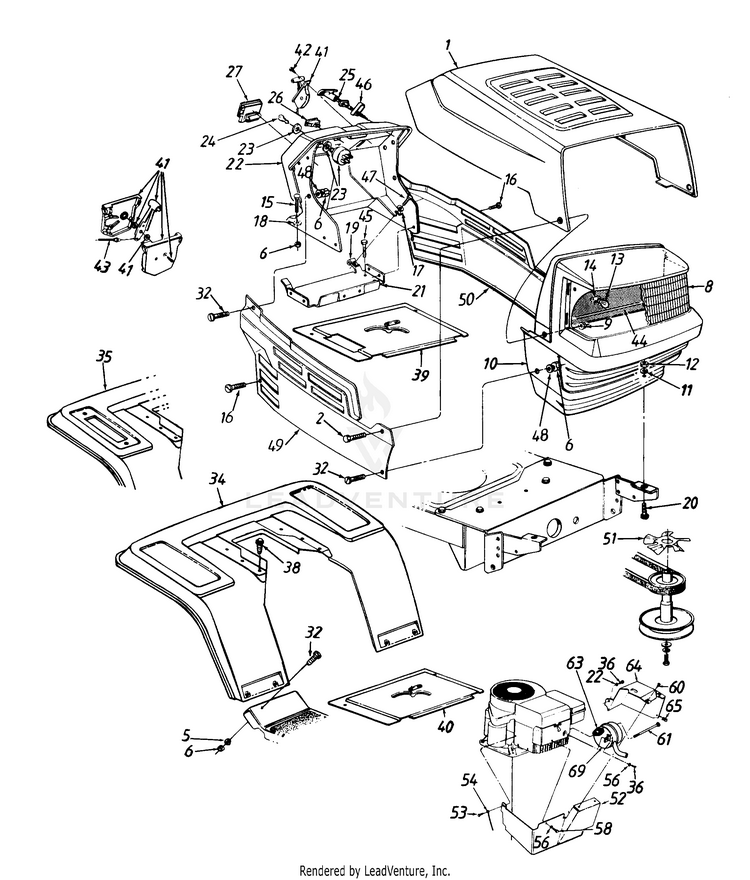

Hood Style 5/Muffler

...
...
1
HOOD-STY O W/LOUVERS MTD-783-0250
...
2
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
3
Fl-Wash. .28" I.D. x .75" O.D. MTD-736-0342
...
6
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
8
Lens MTD-931-1099A
...
9
LOCK NUT 1/4 x 28 MTD-712-0380
...
10
GRILLE-10 STYLE MTD-931-1097G
...
11
Fl-Wash. .344" I.D. x 1" O.D. MTD-736-3078
...
12
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
13
Miniature Lamp 12V Socket Type MTD-925-0963
...
14
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
15
Carriage Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
16
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
17
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
18
Bolt Retainer 1/4" I.D. MTD-726-0233
...
19
SPEED NUT 1/4-20 MTD-712-0185
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
GAS TANK SUPPORT BRKT. MTD-17632A
...
22
KIT-DASH MTD-731-1096B
...
xx
DASH PANEL MTD-731-1337A
...
23
Ignition Switch MTD-925-0267B
...
24
Key MTD-925-0201
...
25
Choke Control 23" Used w/Single Cylinder Engine Only. MTD-946-0616A
...
xx
Choke Control Used w/Twin Cylinder Engine Only. MTD-746-0614A
...
xx
CHOKE CONTROL CABLE 29'' MTD-746-3021
...
xx
CHOKE CONTROL 20" MTD-746-0720
...
26
Light Switch MTD-925-0634
...
27
Ammeter MTD-925-0925
...
32
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
34
FENDER-RR W/FRAME MTD-17870C
...
35
FENDER-RR MTD-17871A
...
38
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
39
SHIFT COVER MTD-17954B-0637
...
40
Shift Cover MTD-17286B-0637
...
41
Throttle Box Ass'y. MTD-831-0823A
...
42
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
43
Throttle Control Wire 18.5" New Part Used w/Single Cylinder Engine Only. MTD-946-0638
...
xx
Throttle Wire Used w/Twin Cylinder Engine Only. MTD-946-0634
...
44
LABEL-REFLECTIVE MTD-777X40318
...
45
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603
...
46
CLIP-CHOKE RETAINER MTD-17782
...
47
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
48
SPRING WASHER BELL MTD-736-0270
...
49
SIDE PANEL (RH) MTD-783-0150A
...
50
SIDE PANEL (LH) MTD-783-0151
...
51
COOLING FAN Used w/Single Cylinder Engine Only. MTD-17199-0637
...
52
SHIELD-MUF Used w/Single Cylinder Engine Only. MTD-16936
...
53
Truss Mach. Scr. 5/16-18 x .75" Lg. Used w/Single Cylinder Engine Only. MTD-710-0323
...
54
WIRE Used w/Single Cylinder Engine Only. MTD-725-0980
...
56
Spring Wash. .265 I.D. x .562 O.D. Used w/Single Cylinder Engine Only. MTD-936-0175
...
58
HEX CAP SCREW 1/4-20 x .375 GR5 Used w/Single Cylinder Engine Only. MTD-710-0294
...
60
Hex B-Tap Scr. #10 x .38" Used w/Single Cylinder Engine Only. MTD-910-0429
...
61
SHOULDER SCREW Used w/Single Cylinder Engine Only. MTD-938-0636
...
63
Gasket-Exhaust Used w/Single Cylinder Engine Only. MTD-BS-692236
...
64
HEAT SHEID ASSEMBLY Used w/Single Cylinder Engine Only. MTD-683-0042A
...
65
Speed Nut #10-24 Thd. Used w/Single Cylinder Engine Only. MTD-712-0147
...
69
MUFFLER Used w/Single Cylinder Engine Only. MTD-951-0465A
...
70
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
xx
Muffler Single Cylinder Engines MTD-NA
...
xx
MUFFLER Used with 12 & 12.5 H.P. Tecumseh MTD-951-0443A
...
xx
Gasket-Exhaust Used on Muffler P/N 751-0443A MTD-BS-692236
...
xx
SHOULDER SCREW Hardware for Muffler P/N 751-0443A MTD-938-0636
...
...
...
...
...
