Agway by MTD 11A-507D019 (1997) Push Walk-Behind Mower

Model: 11A-507D019 (1997)

Save
 Part Not Listed?Part Not Listed?
product name

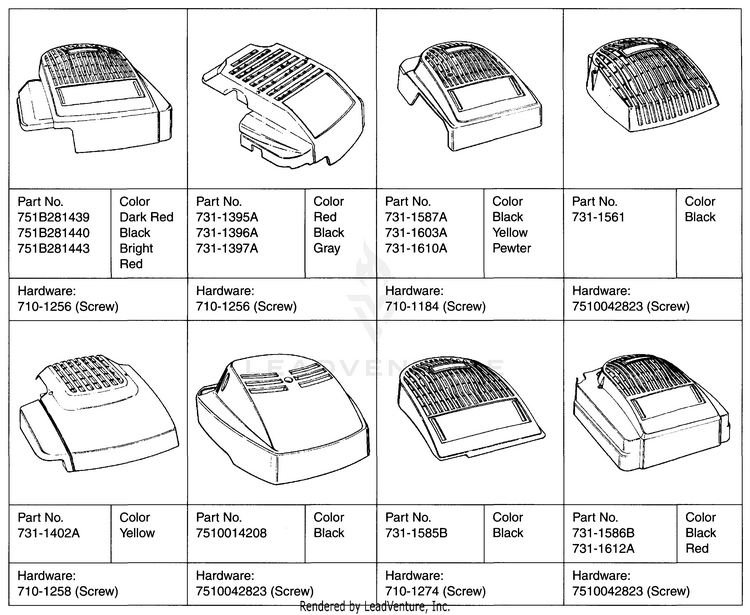

Engine Shroud Chart

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510014208
Engine Shroud - Black MTD-7510014208
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823

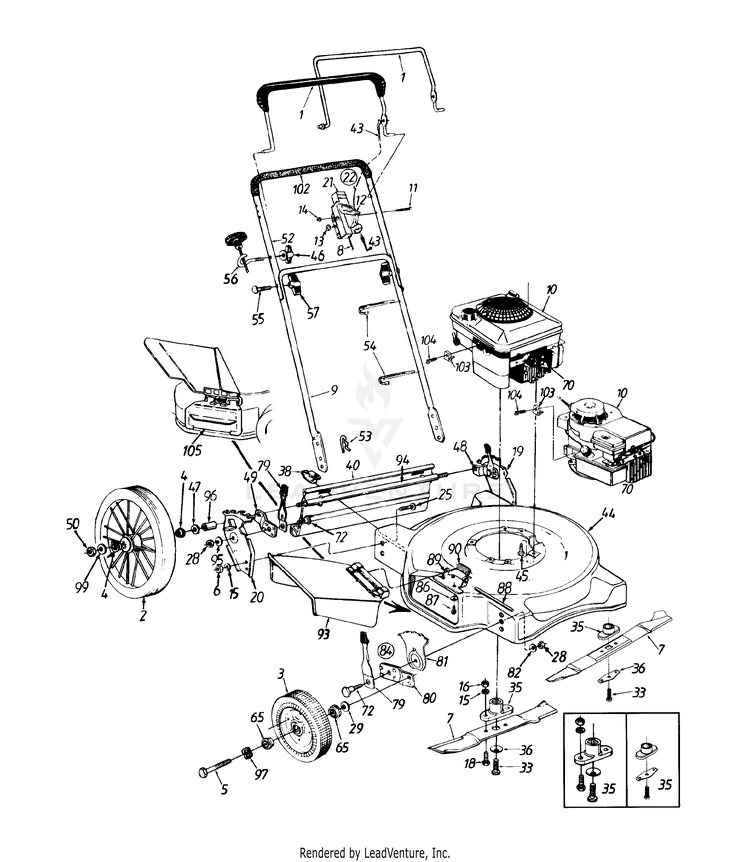

General Assembly

...
...
1
Std. Control Handle (Std.) MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
xx
Handle Ass'y. Control For model (11A-508L022/722) MTD-747-0956-0637
...
2
16" Wheel Ass'y. MTD-NA
...
3
Front Wheel Ass'y. MTD-NA
...
4
BALL BEARING MTD-941-0484
...
5
Front Axle Bolt MTD-738-0102
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
22" BLADE MTD-742-0622
...
xx
22" Mulching Blade (Optional) MTD-942-0722
...
xx
Standard Blade 22-inch MTD-942-0642A
...
xx
Blade (Optional) MTD-742-0742A-0637
...
8
Throttle Wire 55" Lg. MTD-946-0671A
...
xx
Throttle Cable For model (503,505) MTD-946-1115
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
Oval C-Sunk Mach. Scr. MTD-710-0605
...
12
Throttle Lever MTD-946-0876
...
13
Curved Spring Wash. .66" I.D. MTD-936-0501
...
14
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
15
L-Wash. 3/8" I.D. Blade Secured w/ 3 Bolts MTD-736-0169
...
16
Hex Nut 3/8-24 Thd. Blade Secured w/ 3 Bolts MTD-712-0241
...
18
Hex Bolt 3/8-24 x 1.0" Lg. Blade Secured w/ 3 Bolts MTD-710-1055
...
19
HANDLE BRACKET ASSEMBLY (LH) (POWDER BLACK) MTD-682-0517-0637
...
20
HANDLE BRACKET ASSEMBLY (RH) MTD-682-0518
...
21
Throttle Body MTD-946-0875
...
22
Throttle Box Comp. (Incl. Ref. 11, 12, 13, 14, 21) MTD-811-0185
...
25
SCREW 3/8-24 x .80 MTD-710-0793
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
33
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
35
Blade Adapter Kit Blade Secured w/ 3 Bolts MTD-753-0484
...
xx
Blade Adapter Kit (Incl. Ref. 13-15) Blade Secured w/ 1 Bolt MTD-753-06315
...
36
Bell-Wash. .39" I.D. Blade Secured w/ 3 Bolts MTD-736-0452
...
xx
BLADE BELL SUPPORT Blade Secured w/ 1 Bolt MTD-736-0524B-1
...
38
HINGE CLIP MTD-17098P
...
99
Fl-Wash. .406" I.D. x .81" MTD-736-3050
...
102
Foam Grip (Optional) MTD-720-0295
...
103
Cable Clamp (B&S) For model (504, 508) MTD-BS-690798
...
xx
CLAMP-THRO For model (507) MTD-7510007755
...
40
TRAILSHED MTD-731-1026
...
43
Control Cable 39" For model (506, 508,509) MTD-946-0550
...
xx
Control Cable - 51" For model (503,505,507) MTD-946-0737
...
44
DECK ASSEMBLY-22IN MTD-682-0221
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
46
Handle Knob 1/4-20 Thd. MTD-720-0279
...
47
Wave Washer.510 ID x.750 OD MTD-936-0504
...
48
PIVOT BAR MTD-782-0519A
...
49
PIVOT BAR MTD-782-0520
...
50
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
52
UPPER HANDLE MTD-749-0538C
...
xx
UPPER HANDLE For model (11A-508L022/722) MTD-749-0920A
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
Curved Hd. Bolt 5/16-18 x 2" L. MTD-710-1174
...
56
Rope Guide MTD-710-1205
...
57
Hand Knob MTD-920-0276
...
65
Bearing MTD-NA
...
70
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
94
AXLE-RR MTD-738-0878
...
95
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
96
Spacer .550 ID x .750 OD MTD-950-0151
...
97
Wave Washer.510 ID x.750 OD (Used w/Ball Brg. Wheels) MTD-936-0504
...
104
Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg. For model (504, 508) MTD-710-1237
...
xx
SCREW #10-32 x .38 For model (507) MTD-710-0871
...
105
MULCH PLUG (Optional) MTD-731-1386D
...
xx
16" WHEEL ASS'Y. MTD-734-1653
...
xx
AERO GRAY WITH BALL BEARINGS MTD-734-1842
...
xx
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661
...
xx
Side Discharge Grass Collector MTD-OEM-190-110
...
xx
Mulch Kit (1 Bolt Mount) Attachment MTD-190-115-000
...
xx
22" MULCHING KIT MTD-190-100-000
...
xx
Wheel - LH MTD-734-1855
...
xx
Front Wheels w/o Bearings (Gray w/ Hub Cap) Bar Tread MTD-634-0020
...
xx
Wheel - LH MTD-734-1855
...
xx
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) MTD-934-1841
...
xx
Wheels with Ball Brgs. MTD-734-1268
...
xx
Plastic Bearings MTD-741-0262
...
xx
Front Wheels with Ball Bearings (Gray) "T" Tread, (Require Wave Washer, P/N 736-0504) MTD-734-1268
...
xx
Wheels - Front (Require Wave Washer, P/N 736-0504) MTD-753-08093
...
xx
Wheel Ass'y. Comp. (Require Wave Washer, P/N 736-0504) MTD-734-1978
...
xx
BALL BEARING MTD-941-0484
...
xx
Wave Washer.510 ID x.750 OD MTD-936-0504
...
xx
HUB CAP-BLACK MTD-731-0354
...
xx
HUB CAP-GRAY MTD-731-0355A
...
xx
Hub Cap MTD-731-0981C
...
xx
HUB CAP MTD-920-0249
...
...
...
...
...
