Agway by MTD 11A-425A019 (1997) Push Walk-Behind Mower

Model: 11A-425A019 (1997)

Save
 Part Not Listed?Part Not Listed?
product name

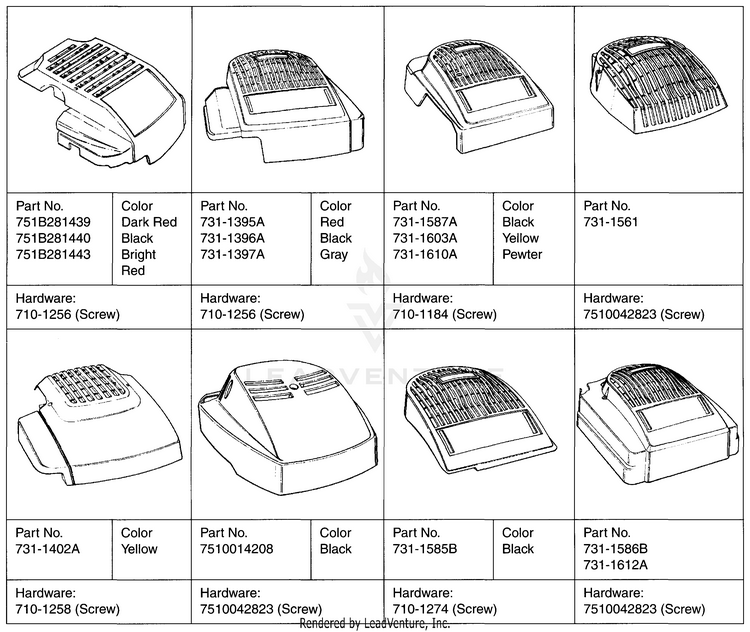

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510014208
Engine Shroud - Black MTD-7510014208
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823

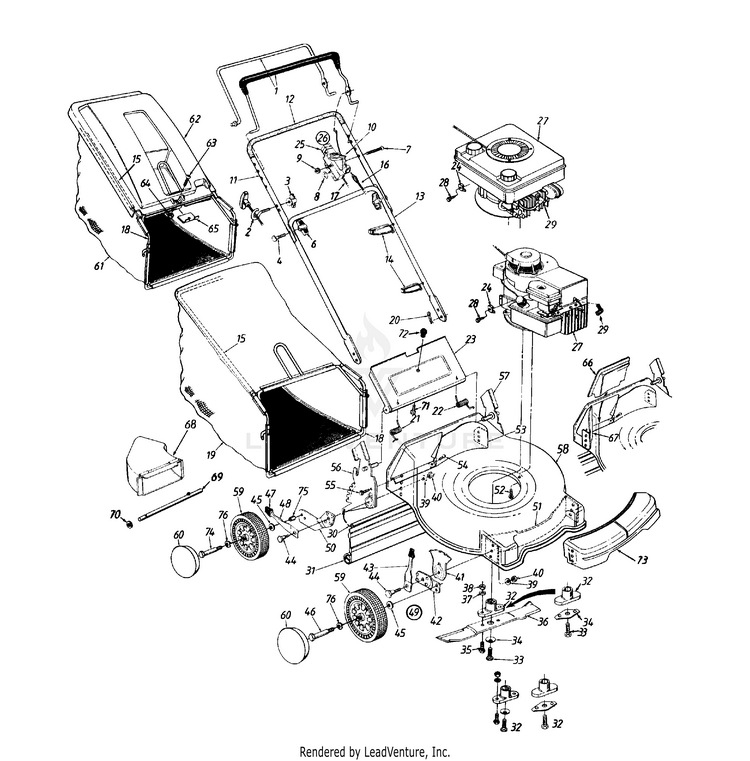

General Assembly

...
...
1
Std. Control Handle (Std.) MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
xx
Handle Ass'y. Control MTD-747-0956-0637
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob 1/4 - 20 Thd. MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" Lg MTD-710-1174
...
6
Hand Knob MTD-920-0276
...
7
Oval C-Sunk Mach. Scr. MTD-710-0605
...
xx
SCREW 1/4-20 x 1.310 (For model 411 Only) MTD-710-1270
...
8
Curved Spring Wash. .66" I.D. MTD-936-0501
...
9
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
10
Throttle Lever MTD-946-0876
...
11
UPPER HANDLE MTD-749-0538C
...
xx
UPPER HANDLE (116-428-022/722) MTD-749-0920A
...
12
Foam Grip (Optional) MTD-720-0295
...
13
Lower Handle MTD-749-0928A-0637
...
14
Cable Tie MTD-725-0157
...
15
Rear Catcher Frame MTD-764-0310A-0637
...
16
Control Cable 39" For models (410, 412, 414, 424) MTD-946-0550
...
xx
Control Cable - 51" For model (411, 413, 423, 425) MTD-946-0737
...
xx
Control Cable For model (416, 418, 426, 428) MTD-946-0553
...
17
Throttle Wire 55" Lg. For model (410) MTD-946-0671A
...
xx
Throttle Cable For model (411, 413, 423, 425) MTD-946-1115
...
xx
Throttle Wire 55" Lg. For model (416, 418, 426, 428) MTD-946-0671A
...
18
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0311-0637
...
19
GRASS CATCHER BAG MTD-964-0309
...
xx
GRASS CATCHER BAG MTD-964-0309
...
20
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
21
Door Spring - R.H. MTD-732-0678
...
22
SPRING-DOOR (LH) MTD-932-0677
...
23
REAR DISCHARGE DOOR MTD-782-7000
...
24
Cable Clamp (B&S) MTD-BS-690798
...
xx
CLIP-CONDUIT MTD-TC-27793
...
25
Throttle Body MTD-946-0875
...
26
Throttle Box Comp. (Incl. Ref. 7, 8, 9, 10, 25) MTD-811-0185
...
xx
Housing, E.R.S. w/o Throttle For model (11A411A022/722) MTD-746-0883
...
27
Engine MTD-NA
...
28
Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B & S) MTD-710-1237
...
29
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
30
TRAILSHIELD WIRE MTD-732P0700
...
31
Rear Trailing Shield MTD-731-04998
...
32
Blade Adapter Kit Blade with 3 Bolt Mount MTD-753-0484
...
xx
Blade Adapter Kit (Incl. Ref. 13-15) Blade with 1 Bolt Mount MTD-753-06315
...
33
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
34
Bell-Wash. .39" I.D. MTD-736-0452
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
35
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
36
21" Blade MTD-942-0621
...
xx
21" Mulching Blade (Optional) MTD-942-0721
...
xx
21-inch Mulching Blade MTD-942-0741A
...
xx
21" BLADE (HI LIFT BOW-TIE) MTD-742-0641-0637
...
37
L-Wash. 3/8" I.D. MTD-736-0169
...
38
Hex Nut 3/8-24 Thd. MTD-712-0241
...
39
BELL WASHER MTD-936-0356
...
40
Hex Nut 3/8-16 Thd. MTD-712-0798
...
41
Height Adjustment Plate MTD-787-01290A
...
42
Pivot Bar MTD-15262B
...
43
Front Spring Lever MTD-94832
...
44
Shld. Bolt .5" Dia. x .357" MTD-738-0507B
...
45
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
46
Axle Bolt MTD-738-0102
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
SPRING LEVER MTD-732-0417A
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
50
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Ill.) MTD-14766
...
51
FRONT BAFFLE MTD-782P5002B
...
52
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
53
LH Rear Baffle MTD-782-5003A
...
54
Torx Mach. AB-Tap Scr. 1/4 x 62" Lg. MTD-710-1017
...
55
Hex Ind-Wash.Scr. 1/4 -14 x .625 Lg. MTD-710-0896
...
56
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637
...
57
KIT-HANDLE BRACKET MTD-753-05994
...
58
21" R D. DECK MTD-782-0310
...
59
Wheel Assy. Comp. MTD-NA
...
60
UNKNOWN MTD-NA
...
61
GRASSBAG MTD-764-0433
...
62
HARDTOP COVER MTD-731-1322A
...
xx
HARDTOP COVER (Optional) MTD-731-1876
...
63
Pan Hd. Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
64
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324
...
65
Mounting Bracket MTD-782-9011-0637
...
66
Mulching Baffle Plug (Optional) MTD-782-5007C
...
67
Mulching Baffle - R.R. (Optional) MTD-782-5004B
...
68
REAR CHUTE DEFLECTOR (Optional) MTD-731-1405A
...
69
Rod (Optional) MTD-711-0996
...
70
Push Speed Nut (Optional) MTD-726-0201
...
71
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
72
KNOB MTD-720-0275
...
73
FRONT END COVER (Optional) MTD-731-1506A
...
74
Rear Axle Bolt MTD-738-0213
...
xx
Axle Bolt MTD-738-0102
...
75
Spacer.380" I.D. x .625" O.D. x .227 MTD-950-0535
...
76
Wave Washer.510 ID x.750 OD MTD-936-0504
...
xx
Hub Cap MTD-731-0981C
...
xx
HUB CAP MTD-920-0249
...
xx
Wheels w/o Bearings - Gray (No Hub Cap); Bar Tread MTD-731-1781
...
xx
Wheels w/o Bearings - Gray Bar Tread MTD-634-0020
...
xx
Wheel Ass'y. Comp. MTD-734-1978
...
xx
BALL BEARING MTD-941-0484
...
...
...
...
...
