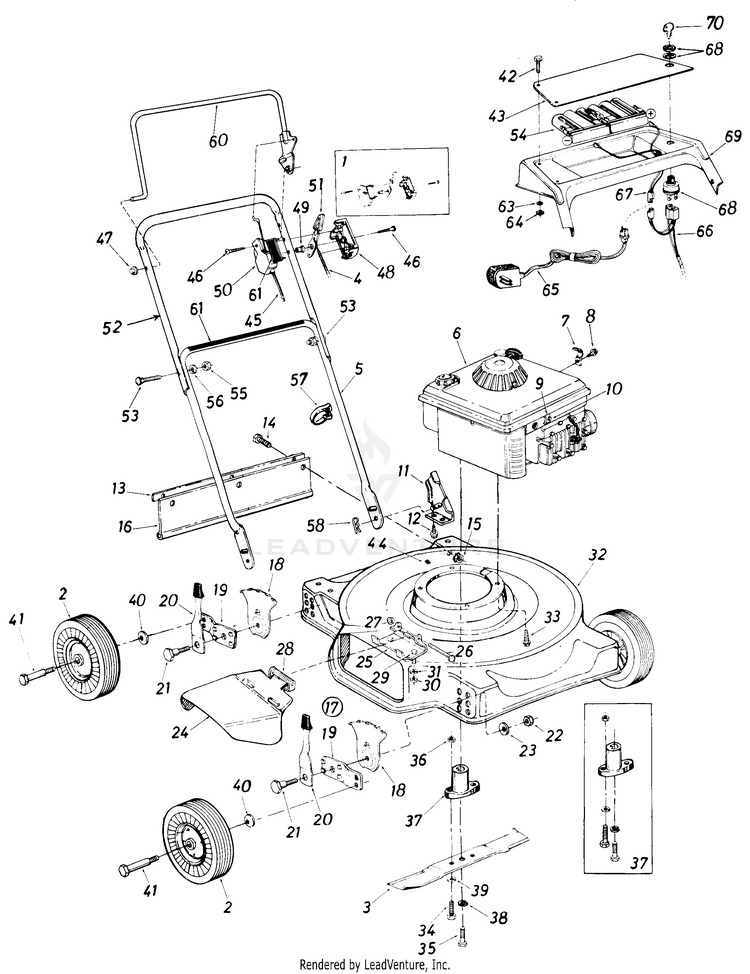

Agway by MTD 115-076-019 (1985) Push Walk-Behind Mower

Model: 115-076-019 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

Parts02

...
...
1
CONTROL HOUSING COMP. MTD-753-0360
...
2
WHEEL ASSY. MTD-734-0923
...
xx
BALL BEARING MTD-941-0180
...
3
20" BLADE MTD-742-0123
...
4
Throttle Control Wire 39" Lg. MTD-946-0630A
...
5
Lower Handle MTD-749-0907B
...
6
Engine MTD-NA
...
7
CABLE CLAMP MTD-12894
...
8
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
9
CLAMP-CONDUIT MTD-751-0369
...
10
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg MTD-710-0227
...
11
BRACKET AS MTD-12935
...
xx
BRACKET ASSY-HDLE (Not Shown) MTD-12936
...
12
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
13
RETAINER STRIP MTD-14846
...
14
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
15
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
16
FLAP ASSEMBLY MTD-731-1029
...
17
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
18
Height Adjustment Plate MTD-787-01290A
...
19
Pivot Bar MTD-15262B
...
20
Front Spring Lever MTD-94832
...
21
Shoulder Bolt .50" Dia. MTD-738-0507B
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Bell-Wash. .39' I.D. x 1.13" O.D. MTD-736-0331
...
24
CHUTE DEFLECTOR MTD-931-1034B
...
25
ADAPTER PLATE MTD-11130
...
26
PIVOT PIN MTD-711-0555
...
27
PUSH NUT MTD-726-0106
...
28
TORSION SPRING MTD-732-0253
...
29
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
30
HEX NUT 1/4-20 MTD-912-0287
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
32
DECK ASSEM MTD-14995
...
33
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
34
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 8) MTD-710-0888
...
35
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
36
Hex Nut 5/16-24 Thd. MTD-912-3057
...
37
Blade Adapter Kit MTD-753-0348
...
38
L-Wash. 3/8" I.D. Heavy Duty MTD-736-0217
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
Bell-Wash. .400" I.D. x .88"O.D. MTD-736-0105
...
41
Shld. Bolt .498" Dia. x 1.450" Lg. MTD-738-0102
...
42
HEX SCREW WASH HD 10-32X.38 MTD-710-0783
...
43
Battery Plate MTD-16360
...
44
PLUG MTD-731-0564
...
45
49" CONTROL CABLE MTD-946-0478A
...
46
Truss. Mach. Scr. #12 x 1.50" Lg . MTD-710-0796
...
47
Cap Speed Nut 5/16" Rod MTD-726-0135
...
48
CONTROL PANEL HALF MTD-731-0523
...
49
CONROL DISC PIN MTD-731-0524
...
50
CLUTCH PANEL HALF MTD-731-0526
...
51
Throttle Control Lever MTD-931-0972
...
52
UPPER HANDLE MTD-749-0438D-0637
...
53
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
54
BATTERY PACK MTD-725-1105
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
CABLE TIE MTD-726-0192
...
58
Internal Cotter Pin MTD-714-0104
...
60
BAIL (RH) MTD-731-0610
...
61
CONTROL LABEL MTD-777-5166
...
63
WASHER-EXTERN L #8 MTD-736-0168
...
64
Hex Nut #8-32 Thd. MTD-712-0142
...
65
Battery Charger MTD-925-0727
...
66
Wire Harness MTD-725-1096
...
67
Battery Pack Lead MTD-725-1106
...
68
KEY SWITCH MTD-925-0873
...
69
PANEL-BATTERY MTD-731-0741
...
70
Key MTD-925-0201
...
...
...
...
...
