Ace by MTD 18A-707-033 (1998) Electric Mower

Model: 18A-707-033 (1998)

Save
 Part Not Listed?Part Not Listed?
product name

Cord & Switch Assembly (P/N 625-0050)

...
...
1
SCREW #7-19 C 1.0 MTD-710-1150
...
2
NUT MTD-712-0189
...
3
CORD-MOTOR 115V W/ MTD-724-0248
...
4
CIRCUIT BREAKER MTD-925-1712
...
5
SWITCH-PLUNGER MTD-725-1731
...
6
HOUSING-UPPER SWIT MTD-731-1985
...
7
LOWER SWITCH HOUSING MTD-731-1986
...
8
LEVER-SWITCH CONTR MTD-731-1987
...
9
TORSION SPRING MTD-732-0935

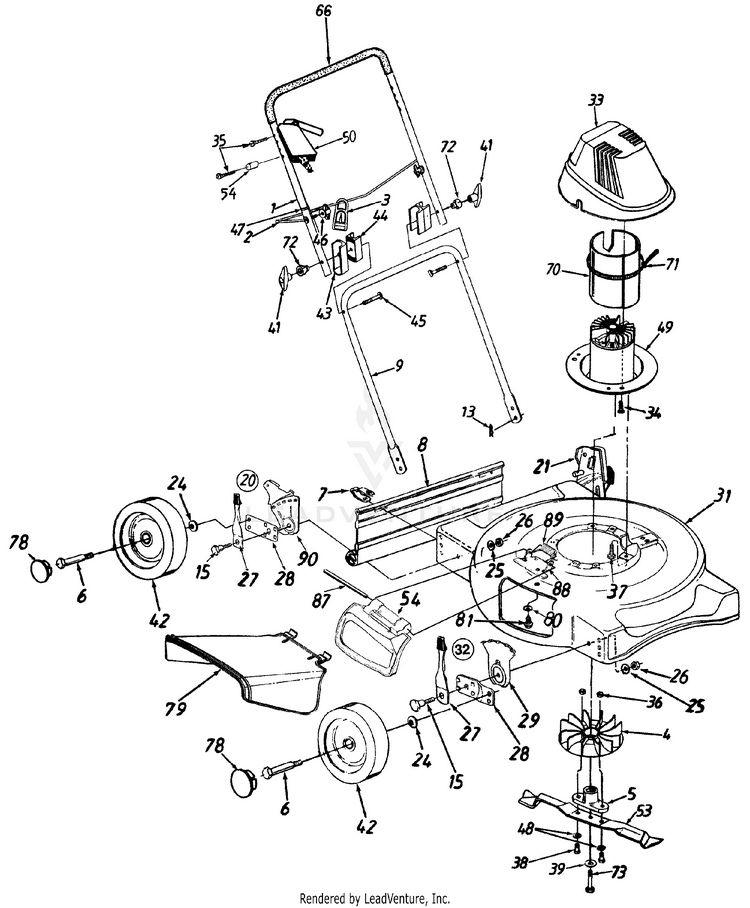

General Assembly

...
...
1
UPPER HANDLE MTD-749-0886
...
2
GUIDE ROD MTD-747-1094
...
3
CORD MINDER MTD-725-1590
...
4
FAN MTD-731-1270
...
5
BLADE ADAPTER MTD-748-0356
...
6
Axle Bolt MTD-738-0102
...
7
HINGE CLIP MTD-17098P
...
8
FLAP ASSEMBLY MTD-731-1028
...
9
HANDLE-LOW MTD-749-0885
...
13
Hairpin Clip MTD-714-0104
...
15
Shld. Bolt .5" Dia. x .434" MTD-738-0507B
...
20
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A
...
21
BRACKET ASSEMBLY MTD-987-02107A
...
24
Spr. Washer .401 x .870 x .063 MTD-736-0105
...
25
BELL WASHER MTD-936-0356
...
26
Hex Nut 3/8-16 Thd. MTD-712-0798
...
27
Front Spring Lever MTD-94832
...
28
Pivot Bar MTD-15262B
...
29
Height Adjustment Plate MTD-787-01290A
...
31
DECK ASSEMBLY MTD-682-0018
...
32
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
33
COVER-MOTOR BLACK MTD-731-1263
...
34
Screw #10-24 x .75" Lg. MTD-710-3009
...
35
Oval C-Sunk Screw 1/4-20 x 1.81 MTD-710-0605
...
36
Lock Nut 3/8-24 Thd. MTD-712-0241
...
37
Hex Lock Wash. TT-Tap Scr. 3/8-16 x 1.00" MTD-710-0654A
...
38
Hx Hd.3/8-24: 1.25 Lg. MTD-710-0191
...
39
Bell Washer .396" I.D. x 1.14" MTD-736-0452
...
41
Star Knob MTD-720-04072A
...
42
Wheel - LH MTD-734-1855
...
xx
TREAD TYPE - DIAMOND 7" x 1.50" MTD-734-1699
...
43
Upper Handle Insulator MTD-731-1268
...
44
LOWER HANDLE INSULATOR MTD-731-1267
...
45
SCREW 5/16-18 x 3.0 GR1 MTD-710-0450
...
46
Wing Nut 1/4-20 Thd. MTD-720-0279
...
47
Cable Tie MTD-725-0157
...
48
Bell Wash. .39 x 1.13 x .062 MTD-736-0331
...
49
MOTOR, CORD & SWITCH ASS'Y. WARNING: The motor is an important part of the double insulated system. To avoid the possibility of alteration or damage to the system, it is recommended that service be performed at a factory authorized service location. MTD-624-0099
...
50
CORD & SWI MTD-625-0050
...
53
MULCHING BLADE 1 MTD-742-0718
...
54
Mulching Plug MTD-731-1501
...
?55
SPACER MTD-950-0218
...
66
Grip Foam (Optional) MTD-720-0295
...
70
INSULATOR-MOTOR HS WARNING: Insulators are safety components. It is very important that all parts be reassembled in positions shown here. MTD-721-0311
...
71
Cable Tie MTD-726-0230
...
72
INSULATOR KNOB MTD-731-1388
...
73
SCREW 3/8-24 x 2.50 GR8 MTD-710-1251
...
78
HUB CAP (Optional) MTD-720-0258
...
78
Side Discharge Deflector MTD-731-1409B
...
79
UNKNOWN MTD-NA
...
80
SPRING WASHER BELL MTD-736-0270
...
81
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
87
Hinge Pin MTD-747-0710A
...
88
MOUNTING BRACKET MTD-782-7006
...
89
Torsion Spring MTD-932-0731
...
90
Handle Bracket Ass'y (Part of Ref. 20) MTD-NA

Motor

...
...
1
BRUSH & LINER ASSEMBLY MTD-624-0031
...
2
BRUSH HOLDER CAP MTD-924-0200
...
3
End Shield Assembly. W/plug (Includes Ref. 1, 2 & 6) MTD-624-0070
...
4
Insulator Wire (Output) MTD-721-0305
...
5
Hex Tap Scr. #10-16 x .62" Lg. MTD-710-3009
...
6
NEEDLE BEARING MTD-741-0875
...
7
Magnet Housing Assembly (Not available for service) MTD-NA
...
8
Armature Assembly MTD-624-0029
...
9
Motor End Plate Assembly (Includes Ref. 10 & 11) MTD-624-0062
...
10
BALL BEARING MTD-941-0600
...
11
ADAPTOR-BEARING MTD-748-0348
...
12
CARRIAGE BOLT MTD-710-1176
...
13
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
14
Fl. Washer .26" I.D. x .72" MTD-736-3090
...
15
INSULATOR-MOTOR HSG MTD-721-0306
...
16
BRACKET, RECTIFIER HE MTD-782-5016
...
17
Rectifier MTD-925-1715
...
?18
Heat Sink Compound (not shown) MTD-721-0382
...
...
...
...
...
