Ace by MTD 123-118A033 (76888) (1993) Self-Propelled Walk-Behind Mower

Model: 123-118A033 (76888) (1993)

Save
 Part Not Listed?Part Not Listed?
product name

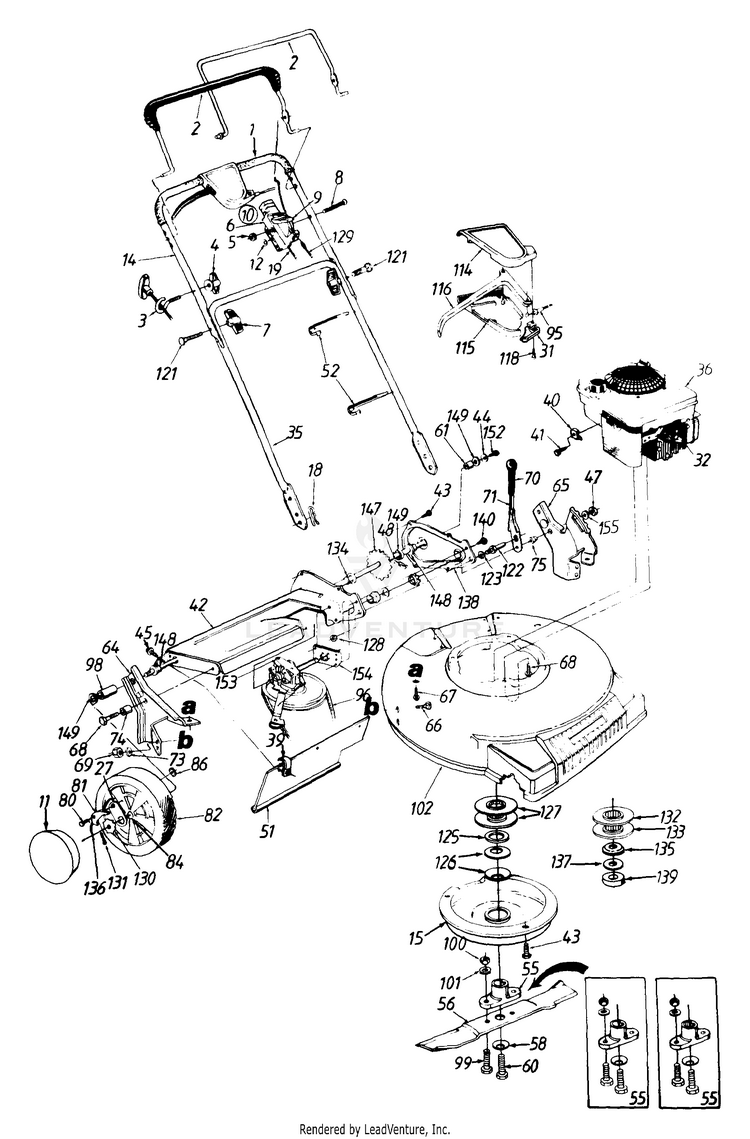

Handle And Wheel Assembly

...
...
1
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
2
Std. Control Handle MTD-747-0824B-0637
...
xx
Std. Control Handle MTD-747-0824B-0637
...
3
Rope Guide MTD-710-1205
...
4
Wing Nut MTD-712-0397A
...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
6
Throttle Body New Part MTD-946-0875
...
7
Hand Knob MTD-920-0276
...
8
Oval C-Sunk Scr. New Part MTD-710-0605
...
9
Throttle Lever New Part MTD-946-0876
...
10
Throttle Box Comp. New Part; (Incl. Ref 5, 6,8,9, 12) MTD-811-0185
...
11
Hub Cap MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
Hub Cap (Beige) MTD-731-0982C
...
xx
HUB CAP MTD-920-0249
...
12
Curved Spring Wash. .66" I.D. New Part MTD-936-0501
...
14
UPPER HANDLE New Part MTD-749-0539C-0637
...
15
BELT COVER MTD-782-7522
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
19
Throttle Wire 55" Lg. New Part; Model (118) MTD-946-0671A
...
xx
THROTTLE CABLE - 39" New Part; Model (117) MTD-746-0844
...
27
Pawl Plate MTD-16855
...
31
Control Cover Half-Lower MTD-753-0833
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine MTD-NA
...
39
CLAMP MTD-726-0287
...
40
Cable Clamp (B&S) MTD-BS-690798
...
41
Hex Self-Tap Scr. #10-32 x .62" (B&S) MTD-710-1237
...
42
CHAIN AXLE ASSEMBLY MTD-982-7513
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
45
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN-1/2 PITCH MTD-913-0361
...
51
FLAP MTD-731-1421
...
52
Cable Tie MTD-725-0157
...
55
KIT-BLADE (Splined) MTD-753-0519
...
xx
BLADE ADAPTER KIT New Part; (Keyed) MTD-753-0566
...
56
21" Mulching Blade New Part MTD-942-0721
...
58
BELL WASHER (Used w/Splined Adapter) MTD-936-0453
...
xx
Bell-Wash..39" I.D. (Used w/Keyed Adapter) MTD-736-0452
...
60
Hex Bolt 7/16-20 x 2.5" (Used w/Splined Adapter) MTD-710-0561
...
xx
Hex Bolt 3/8-24 x 2.5" (Used w/Keyed Adapter) MTD-710-1257
...
61
Spacer .513" I.D. MTD-748-0190
...
?63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
BRACKET ASSEMBLY-WHL (RH) COLOR New Part MTD-682-3006A
...
65
L.H. HANDLE WHEEL BRKT. ASS'Y. New Part MTD-682-3007A
...
66
Carriage Bolt 5/16-18 x.62 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
LEVER-HGT ADJ MTD-732-0725
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
80
Shld. Scr .342" Dia. x .268 MTD-730-0137
...
81
PAWL - (LH) MTD-948-0188B
...
82
Wheel Ass'y Comp.- Rear MTD-NA
...
xx
8" x 1.75" Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
84
Sleeve Bearing 1/2" I.D. (Optional) MTD-741-04868
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
SLEEVE MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I D. MTD-736-0169
...
102
KIT-DECK ASSEMBLY MTD-782-0015
...
114
Control Cover Half-Lower MTD-753-0833
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
118
Fl-"C"-Sunk Hd. Tap Scr #10 x .75" Lg. MTD-710-0841
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
125
SPACER-CRANKSHAFT (Used w/Splined Adapter) MTD-748-0332
...
xx
SERRATED WASHER MTD-936-0409
...
126
BELL-WASH 1.01" I.D. (Used w/Splined Adapter) MTD-736-0450
...
xx
Wave Wash. 1" I.D. (Tecumseh) MTD-736-0447
...
127
SERRATED HALF PULLEY (Used w/Splined Adapter) MTD-756-0502
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
129
Control Cable 39" Model (118) MTD-946-0550
...
xx
CONTROL CABLE 55" Model (117) MTD-946-0555
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" MTD-714-0115
...
132
LOWER HALF PULLEY New Part; (Used w/Keyed Adapter) MTD-756-0979
...
133
UPPER HALF PULLEY (Used w/Keyed Adapter) MTD-756-0962
...
134
Hex Flange Bearing MTD-741-0522
...
135
WASHER SPRING (Used w/Keyed Adapter) MTD-936-0513
...
136
Spring - Nylon MTD-10622B
...
137
Fl- Wash..85" I.D. (Used w/Keyed Adapter) MTD-736-0514
...
138
COVER ASSEMBLY-CHAIN MTD-682-7506
...
139
ENGINE CRANK SPACER (Used w/Keyed Adapter) MTD-748-0358
...
140
Hex S-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash..531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Fl-Wash..385" I.D. x .87" O.D. MTD-736-0300

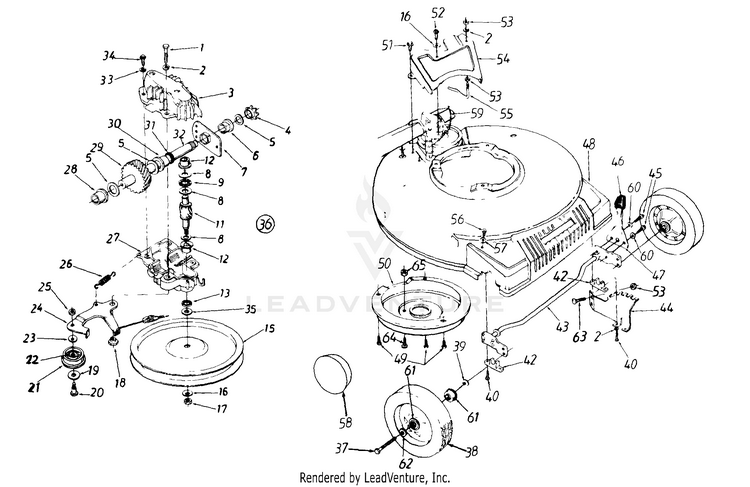

Transmission Complete

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Part of Transmission Complete, Ref. No. 36. MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
HOUSING HALF UPPER Part of Transmission Complete, Ref. No. 36. MTD-717-0418A
...
4
SPROCKET-7T Part of Transmission Complete, Ref. No. 36. MTD-713-0400
...
5
FLAT WASHER Part of Transmission Complete, Ref. No. 36. MTD-936-0336
...
6
Hex Flange Brg..631" I.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0413
...
7
CUP BEARING HEX Part of Transmission Complete, Ref. No. 36. MTD-16500A-0637
...
8
Thrust Wash..382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing Part of Transmission Complete, Ref. No. 36. MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
19
F1-Wash..390" I.D. x 1.0" MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. MTD-956-0558
...
22
Needle Brg..375" x .31 MTD-741-0556
...
23
UNKNOWN MTD-NA
...
24
IDLER BRACKET ASSEMBLY MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring 1.12" Lg. MTD-732-0357A
...
27
HOUSING HALF-LOWER Part of Transmission Complete, Ref. No. 36. MTD-717-0419A
...
28
Flange Bearing .566 ID Part of Transmission Complete, Ref. No. 36. MTD-941-0415
...
29
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36. MTD-717-0422A
...
30
Flange Bearing .629 Dia. Part of Transmission Complete, Ref. No. 36. MTD-741-0414
...
31
Oil Seal .625 Dia. Part of Transmission Complete, Ref. No. 36. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607A
...
33
L-Wash. #10 I.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. Part of Transmission Complete, Ref. No. 36. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410
...
36
TRANSMISSION MTD-917-0417B
...
37
Front Axle Bolt MTD-738-0102
...
38
Wheel Ass'y. Comp. MTD-NA
...
39
Bell-Wash..380" I.0. x.88 MTD-736-0105
...
40
Hex Wash. Hd. Tap Scr. 1/4-20 x 1" Lg. MTD-710-1241
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY- MTD-17733
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING MTD-732-0639
...
48
FRONT END MTD-731-1281
...
49
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
50
BELT COVER MTD-782-7522
...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
52
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
53
LOCK NUT 1/4 MTD-912-3027
...
54
BELT GUARD MTD-17058A-0637
...
55
BELT GUARD MTD-747-0549
...
56
Torx Scr. 5/16 x .75" Lg. MTD-710-1242
...
57
Bell-Wash..345" I.D. x.88" MTD-736-0242
...
58
Hub Cap MTD-NA
...
xx
8" x 1.75" Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
8" x 2" "S" Wave (Beige) MTD-734-1517B
...
59
S.P. Cable MTD-946-0710A
...
60
External L-Wash. 1/4" I.D. MTD-736-0222
...
61
BALL BEARING (Optional) MTD-941-0484
...
62
Wave Wash..53" I.D. x .78" (Used w/Ref. 61) MTD-736-0232
...
63
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
64
SCREW-TRUSS MACH MTD-710-1131
...
65
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
...
...
...
...
