Ace by MTD 122-528R033 (75525) (1992) Self-Propelled Walk-Behind Mower

Model: 122-528R033 (75525) (1992)

Save
 Part Not Listed?Part Not Listed?
product name

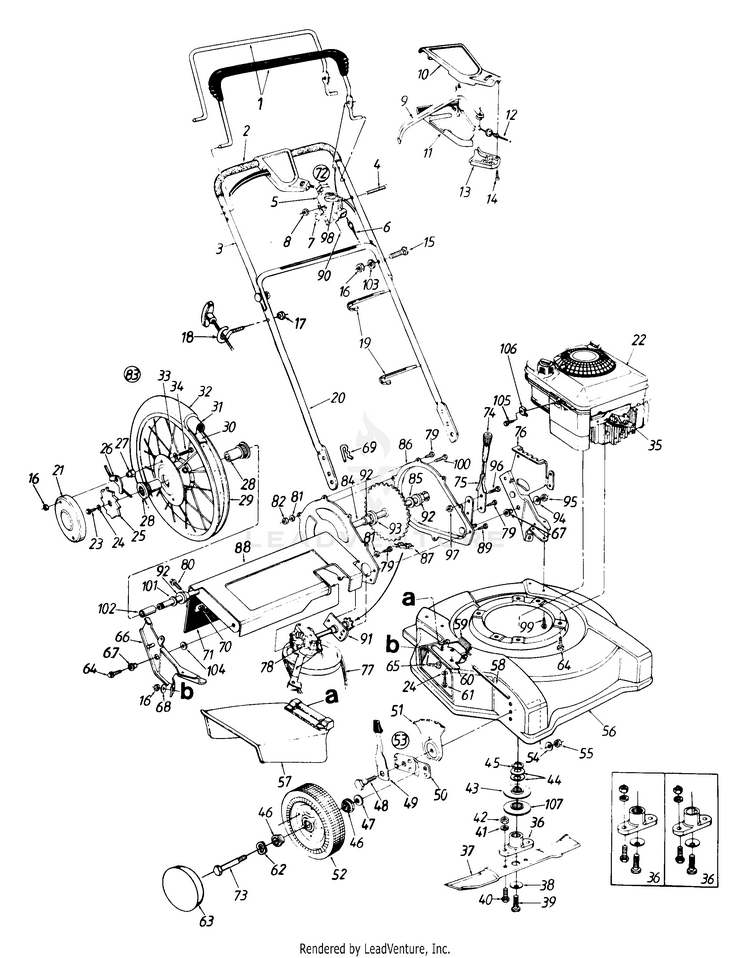

General Assembly

...
...
1
Std. Control Handle (Deluxe) New Part MTD-747-0824B-0637
...
xx
Std. Control Handle (Std.) New Part MTD-747-0824B-0637
...
2
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
3
UPPER HANDLE New Part MTD-749-0539C-0637
...
4
Oval C-Sunk Scr. New Part MTD-710-0605
...
5
Throttle Body New Part MTD-946-0875
...
6
Control Cable 39" MTD-946-0550
...
7
Curved Spring Wash. .66" I.D. MTD-936-0501
...
8
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
9
Drive Control MTD-731-0620A
...
10
Control Cover Half-Lower MTD-753-0833
...
11
Control Cover Half-Lower MTD-753-0833
...
12
S.P. Cable New Part MTD-946-0710A
...
13
Control Cover Half-Lower MTD-753-0833
...
14
Fl-"C" Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
15
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
16
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
17
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
18
Rope Guide MTD-710-1205
...
19
Cable Tie MTD-725-0157
...
20
Lower Handle MTD-749-0928A-0637
...
21
COVER-WHEE MTD-14967
...
22
Engine MTD-NA
...
23
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
24
SPRING WASHER BELL MTD-736-0270
...
25
WHEEL RACHET MTD-748-0312
...
26
PAWL MTD-748-0315
...
27
HEX NUT MTD-712-0329
...
28
FLANGE BEARING MTD-741-0485
...
29
WHEEL RIM 16.0 x 2 MTD-734-1399
...
30
RIM STRIP MTD-734-1400
...
31
TUBE-16 x 2.12 MTD-734-1397
...
32
CHEVRON TIRE 16 x 2.125 MTD-734-1396
...
33
Washer, Lock, 5/16 MTD-936-0104
...
34
Hex Bolt 5/16-18 x 1.0" (Gr. 5) MTD-710-0376
...
35
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
36
SPLINED BLADE ADAPTER KIT (Splined) MTD-753-0485
...
xx
Blade Adapter Kit (Keyed) MTD-753-0484
...
37
22" BLADE MTD-742-0522
...
38
BELL WASHER (Splined) MTD-936-0453
...
xx
Bell-Wash..39" I.D. (Keyed) MTD-736-0452
...
39
Hex Bolt 7/16-20 x 1.5" Lg. (Splined) MTD-710-0757
...
xx
Hex Bolt 3/8-24 x 1.5" Lg. (Keyed) MTD-710-1044
...
40
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
41
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
42
Hex Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241
...
43
SERRATED HALF PULLEY (Splined) MTD-756-0502
...
xx
UPPER HALF PULLEY (Keyed) New Part MTD-756-0962
...
44
BELL-WASH 1.01" I.D. (Splined) MTD-736-0450
...
xx
BELL WASHER (Keyed) New Part MTD-736-0473
...
45
SPACER-CRANKSHAFT (Splined) MTD-748-0332
...
xx
ENGINE CRANK SPACER (Keyed) New Part MTD-748-0358
...
46
Ball Bearing 1/2" I.D. MTD-NA
...
xx
BALL BEARING MTD-941-0180
...
xx
BALL BEARING MTD-941-0180
...
xx
BALL BEARING MTD-941-0180
...
47
Bell-Wash..38" I.D. MTD-736-0105
...
48
Shld. Bolt .5" MTD-738-0507B
...
49
Front Spring Lever MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adjustment Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. MTD-NA
...
xx
8" x 1.75" Bar Tread Not Required MTD-634-0020
...
xx
8" x 1.75" "T" Tread MTD-734-1268
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 2" "S" Wave (Beige) MTD-734-1517B
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
54
BELL WASHER MTD-936-0356
...
55
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798
...
56
22" Deck Ass'y. Code 638 MTD-682-0001
...
57
CHUTE DEFLECTOR MTD-931-1034B
...
58
Hinge Pin MTD-747-0710A
...
59
Torsion Spring MTD-932-0593
...
60
PLATE-ADAPTER MTD-17032A
...
61
Hex TT-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
62
Wave Wash..53" I.D. x .78" (Used w/Steel Wheel) MTD-736-0232
...
63
Hub Cap MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
Hub Cap (Beige) MTD-731-0982C
...
xx
HUB CAP MTD-920-0249
...
xx
HUB CAP-BLACK PLAS MTD-720-0251
...
xx
HUB CAP RED (1-3/8" DIA.) MTD-731-0342
...
64
Hex TT-Tap Scr. 3/8-16 x 1" MTD-710-0654A
...
65
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
66
BRACKET ASSEMBLY (RH) MTD-16136A
...
67
SHOULDER SPACER MTD-750-0624
...
68
Bell-Wash. 5/16" I.D. MTD-736-0242
...
69
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
70
Retaining Strip MTD-165634
...
71
FLAP-RR MTD-731-1172
...
72
Throttle Box Comp. (Incl. Ref. 4, 5, 7, 8, 98) New Part MTD-811-0185
...
73
Front Axle Bolt MTD-738-0102
...
74
Grip MTD-720-0223
...
75
HEIGHT ADJUSTMENT LEVER MTD-732-0655
...
76
BRACKET (LH) MTD-682-3004
...
77
BELT 3/8 x 32.2" MTD-954-0369
...
78
TRANSMISSION MTD-917-0417B
...
79
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
80
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
81
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
82
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
83
WHEEL ASSEMBLY W/TIRE MTD-734-1398
...
84
AXLE ASSEMBLY MTD-713-0425
...
85
Fl-Wash. MTD-936-0256
...
86
CHAINCASE AND ARM ASS'Y. MTD-682-7501
...
87
#48 CHAIN MTD-713-0257
...
88
SUPPORT ASSEMBLY-DRIVE Code 638 MTD-682-7500
...
89
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
90
Throttle Wire 55" Lg. New Part MTD-946-0671A
...
91
CUP BEARING HEX MTD-16500A-0637
...
92
Hex Flange Brg..631" I.D. MTD-741-0413
...
93
Spacer .63" I.D. x 1.25" MTD-748-0313
...
94
Fl-Wash..385" I.D. x .87" O.D. MTD-736-0300
...
95
HEX LOCK NUT 3/8-2 MTD-912-0296
...
96
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201
...
97
Flange Lock Nut 3/8-16 MTD-912-0431
...
98
Throttle Lever New Part MTD-946-0876
...
99
Hex 8-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
100
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
101
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
102
Spacer.628" I.D. x .875" MTD-750-0547
...
103
Lock Wash. 5/16" I.D. MTD-936-0119
...
104
Fl-Wash..38" I.D. x 1" O.D. MTD-736-0258
...
105
Hex Wash. Hd. Scr. #10-32 x .62" Lg. New Part MTD-710-1237
...
106
Cable Clamp (B&S) New Part MTD-BS-690798
...
107
HALF PULLEY-LOWER (Keyed) New Part MTD-756-0961

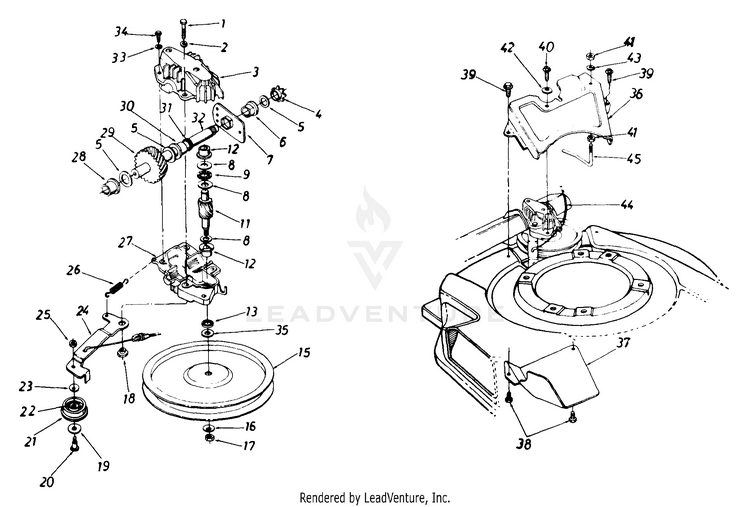

Transmission

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0106
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-726-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg..631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash..382" I.D. x 70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY Not Part of Transmission Complete MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Transmission Complete MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 Not Part of Transmission Complete MTD-738-0440
...
19
Fl-Wash..390" I.D. x 1.0" Not Part of Transmission Complete MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Transmission Complete MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. Not Part of Transmission Complete MTD-956-0558
...
22
Needle Brg..375" x .375" Not Part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY Not Part of Transmission Complete MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. Not Part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. New Part; Not Part of Transmission Complete MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD Not Part of Transmission Complete MTD-736-0410
...
36
BELT GUARD MTD-17718
...
37
BELT COVER MTD-17064
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. Not Part of Transmission Complete MTD-710-0352
...
39
Hex AB-Tap Scr. 1/4 x .50" Lg. MTD-710-0599
...
40
Hex B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
41
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
42
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
43
L-Wash. 1/4" I.D. Not Part of Transmission Complete For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
44
S.P. Cable Not Part of Transmission Complete MTD-946-0710A
...
45
BELT GUARD Not Part of Transmission Complete MTD-747-0549
...
xx
Transmission Comp. MTD-717-04178
...
...
...
...
...
