Ace by MTD 111-506R033 (73517) (1991) Push Walk-Behind Mower

Model: 111-506R033 (73517) (1991)

Save
 Part Not Listed?Part Not Listed?
product name

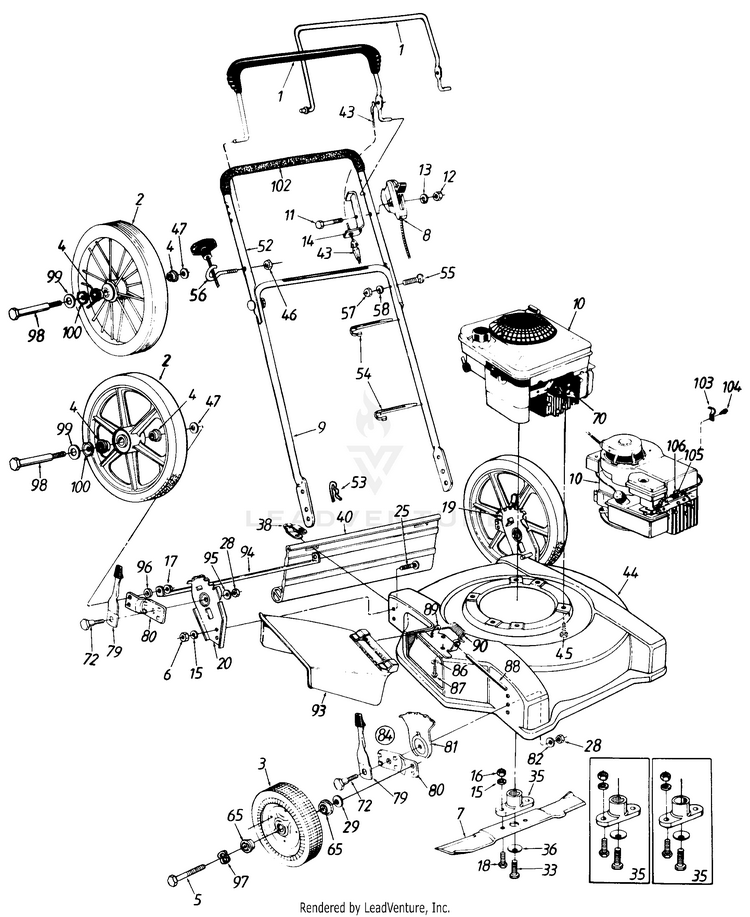

Parts01

...
...
1
CONTROL HANDLE ASSEMBLY (Std.) MTD-747-0748
...
xx
HANDLE ASSEMBLY (Deluxe) MTD-731-1135
...
2
WHEEL ASSEMBLY W/TIRE 14IN PLASTI MTD-634-0003
...
xx
WHEEL-14"STL SPOKE MTD-734-1665
...
xx
WHEEL ASSEMBLY W/TIRE 16IN PLASTI MTD-634-0002
...
xx
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661
...
3
Front Wheel Ass'y. MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1698
...
xx
TIRE ASSEMBLY 8 x 1.75 MTD-734-1697
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1609
...
xx
Wheel - LH MTD-734-1855
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1162A
...
xx
Wheel, 8" MTD-734-04585
...
xx
Wheels - Front MTD-753-08093
...
xx
Ass'y. Comp. ("S" Wave Beige) MTD-734-1517B
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY MTD-734-1259
...
xx
T TREAD MTD-734-1260
...
4
BALL BEARING MTD-941-0484
...
5
Front Axle Bolt MTD-NA
...
xx
Axle Bolt (Diamond, Bar, "S" Wave, Waffle Tread) MTD-738-0102
...
xx
SHOULDER SCREW .498 MTD-738-0144
...
6
Hex Nut 3/8-24 Thd. (Grade 8) MTD-712-0241
...
7
20" BLADE MTD-742-0520
...
xx
22" BLADE MTD-742-0522
...
8
Throttle Control Ass'y. Comp.- 0 51 .6211 (500R,502R) MTD-946-0802A
...
xx
THROTTLE CONTROL 42.02" (505R) MTD-946-0832A
...
xx
THROTTLE CONTROL 58.8" (506R 508R, 584R) MTD-946-0821A
...
xx
Throttle Control Ass'y. Comp.- 0 51 .6211 (580R) MTD-946-0802A
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
HEX SCREW 1/4-20 x 1.875 MTD-710-1216
...
12
HEX NUT 1/4-20 MTD-912-0287
...
13
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
14
BRACKET-CA MTD-17174
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
Hex Nut 3/8-24 Thd. MTD-712-0241
...
17
Flange Lock Nut 3/8-16 MTD-912-0431
...
18
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
19
BRACKET ASSEMBLY (RH) MTD-682-3002
...
20
BRACKET ASSEMBLY (LH) MTD-682-3003
...
25
SCREW 3/8-24 x .80 MTD-710-0793
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
33
Hex Bolt 3/8-24 x 1.5" Lg. (Models 500R, 502R & 580R only) MTD-710-1044
...
xx
Hex Bolt 7/16-20 x 1.5" Lg. (Models 505R, 506R, 508R & 584R only) MTD-710-0757
...
35
Blade Adapter Kit (Keyed) (Models 500R, 502R & 580R only) MTD-753-0484
...
xx
SPLINED BLADE ADAPTER KIT (Models 505R, 506R, 508R & 584R only) MTD-753-0485
...
36
Bell-Wash. .39" I.D. (Models 500R, 502R & 580R only) MTD-736-0452
...
xx
BELL WASHER (Models 505R, 506R, 508R & 584R only) MTD-936-0453
...
38
HINGE CLIP MTD-17098P
...
40
FLAP ASSEMBLY (Used wl20" Deck) MTD-731-1028
...
xx
TRAILSHED (Used wl22" Deck) MTD-731-1026
...
43
CABLE-ZONE RESTART(SD STD B&S (500R,502R, MTD-746-0732
...
xx
CONTROL CABLE (505R) MTD-746-0727
...
xx
Control Cable (506R, 508R, 584R) MTD-946-0553
...
xx
Control Cable 39" (580R) MTD-946-0550
...
44
638/N 20" Deck Ass'y. MTD-682-0200
...
xx
638/N 22" Deck Ass'y. MTD-682-0220
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
46
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324
...
47
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
52
UPPER HANDLE MTD-749-0756A
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
Rope Guide MTD-710-1205
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
Bearing MTD-NA
...
xx
BALL BEARING (2 per wheel) MTD-941-0180
...
xx
FORTIFLEX BEARING MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
70
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
94
STABILIZER-HI WHEE (Used w/20" Deck) MTD-749-0861
...
xx
STABILIZER (Used w/22" Deck) MTD-749-0860
...
95
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
96
SPACER MTD-750-0796
...
97
Wave Washer .53" I.D. (Used w/Ball Brg. Wheels) MTD-736-0232
...
98
SHOULDER SCREW MTD-938-0822
...
99
FLAT WASHER MTD-936-0456
...
100
Spr. Wash. .5" I.D. x 1.0" MTD-736-0182
...
102
Grip Foam (Optional) MTD-720-0295
...
103
CASING CLAMP MTD-12894A
...
104
Hex B-Tap Scr. #10 x .38" (Models 500R, 502R & 580R only) MTD-910-0429
...
105
CLAMP-CONDUIT (Models 500R, 502R & 580R only) MTD-751-0369
...
106
Hex AB-Tap Scr. #8 x .50" (Models 500R, 502R & 580R only) MTD-710-0227
...
...
...
...
...
