Ace by MTD 110-506R033 (73517) (1990) Push Walk-Behind Mower

Model: 110-506R033 (73517) (1990)

Save
 Part Not Listed?Part Not Listed?
product name

Parts01

...
...

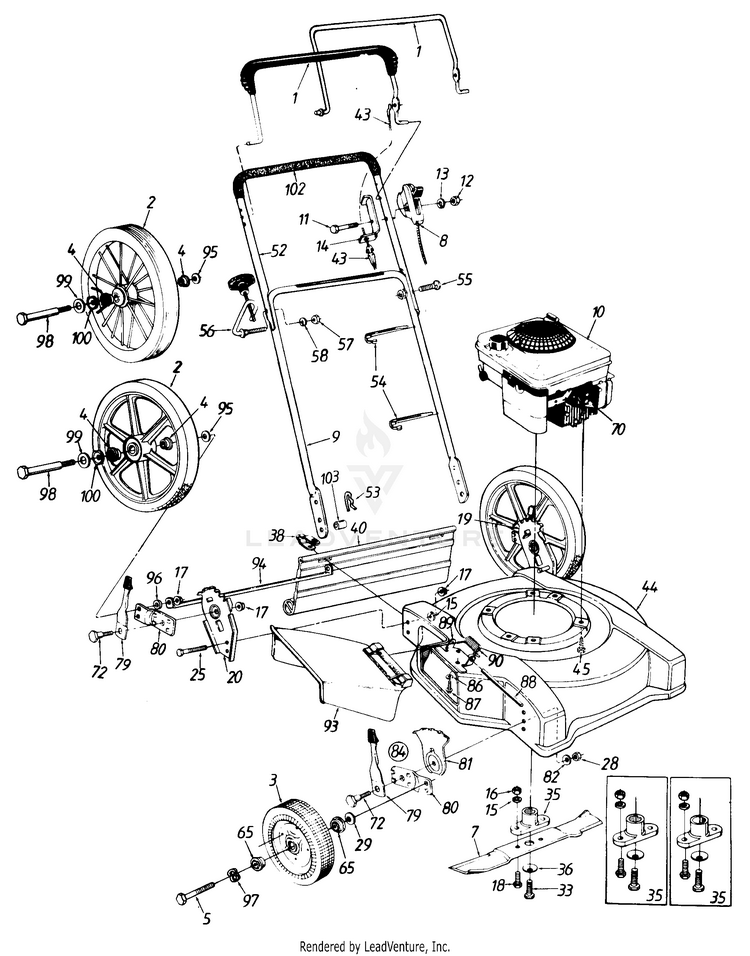

1
CONTROL HANDLE ASSEMBLY (Std.) MTD-747-0748
...
xx
HANDLE ASSEMBLY (Deluxe) MTD-731-1135
...
2
16" WHEEL ASS'Y. MTD-734-1653
...
xx
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661
...
3
Front Wheel Ass'y.-Comp. MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1162A
...
xx
7" WHEEL ASS'Y. COMP. MTD-734-1161A
...
xx
Wheel, 8" MTD-734-04585
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1170
...
xx
Wheel - LH MTD-734-1855
...
4
BALL BEARING MTD-941-0484
...
5
Front Axle Bolt MTD-NA
...
xx
Axle Bolt MTD-738-0102
...
xx
SHOULDER SCREW .498 MTD-738-0144
...
7
22" BLADE MTD-742-0522
...
8
Throttle Control Ass'y. Comp.- 0 51 .6211 (Models 500R and 502R Only) MTD-946-0802A
...
xx
THROTTLE CONTROL 58.8" (Models 506R and 508R Only) MTD-946-0821A
...
9
Lower Handle MTD-749-0815
...
10
Engine MTD-NA
...
11
Hex Bolt 1/4-20 x 1.75" Lg. (Models 500R and 502R Only) MTD-710-0136
...
xx
Hex Bolt 1/4-20 x 2" Lg. (Models 506R and 508R Only) MTD-710-0501
...
12
HEX NUT 1/4-20 MTD-912-0287
...
13
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
14
BRACKET-CA MTD-17174
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
Hex Nut 3/8-24 Thd. MTD-712-0241
...
17
Hex Nut 3/8-24 Thd. MTD-712-0241
...
18
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
19
WHEEL BRKT. ASS'Y.-L.H. MTD-706-14646
...
20
WHEEL BRKT. ASS'Y.-R.H. MTD-706-14645
...
25
SCREW 3/8-24 x .80 MTD-710-0793
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
33
Hex Bolt 3/8-24 x 1.5" Lg. (Models 500R and 502R Only) MTD-710-1044
...
xx
Hex Bolt 7/16-20 x 1.5" Lg.tt MTD-710-0757
...
35
Blade Adapter Kit (Keyed) (Models 500R and 502R Only) MTD-753-0484
...
xx
SPLINED BLADE ADAPTER KIT (Models 506R and 508R Only) MTD-753-0485
...
36
Bell-Wash. .39" I.D. (Models 500R and 502R Only) MTD-736-0452
...
xx
BELL WASHER (Models 506R and 508R Only) MTD-936-0453
...
38
HINGE CLIP MTD-17098P
...
40
FLAP ASSEMBLY MTD-731-1029
...
43
Control Cable 39" MTD-946-0550
...
xx
Control Cable (Models 506R and 508R Only) MTD-946-0553
...
44
22" Deck Ass'y. MTD-706-14621
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
52
UPPER HANDLE MTD-749-0756
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
BALL BEARING MTD-941-0180
...
70
INSULATOR-SPARK PLUG MTD-735-0639
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
94
STABILIZER MTD-706-14647
...
95
Bell-Wash. .39" I.D. x 1.13 MTD-736-0331
...
96
SPACER MTD-750-0796
...
97
Wave Washer .53" I.D. MTD-736-0232
...
98
SHOULDER SCREW MTD-938-0822
...
99
FLAT WASHER .510 x .995 MTD-736-0272
...
100
Spr. Wash. .5" I.D. x 1.0" MTD-736-0182
...
102
Grip Foam (Optional) MTD-720-0295
...
103
SPACER (Not used on all models) MTD-950-0503

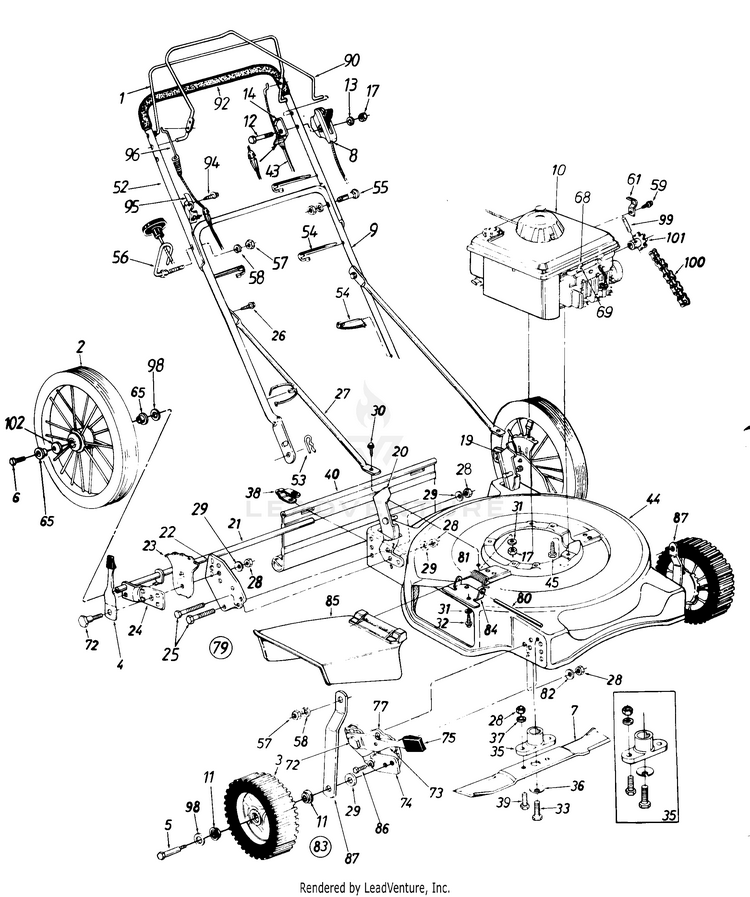

Parts03

...
...
1
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
2
WHEEL ASSEMBLY W/TIRE MTD-734-0244
...
3
ASS'Y. COMP. (GEAR TREAD) MTD-734-0538
...
4
Front Spring Lever MTD-94832
...
5
SHOULDER SCREW .498 MTD-738-0144
...
6
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
7
22" BLADE MTD-742-0522
...
8
Throttle Control MTD-746-0800A
...
9
Lower Handle MTD-749-0928A-0637
...
10
4 H.P. Engine-See Breakdown MTD-NA
...
11
Flange Brg. 1/2" I.D. MTD-741-0262
...
12
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
13
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
14
BRACKET-CA MTD-17173
...
17
HEX NUT 1/4-20 MTD-912-0287
...
19
BRACKET ASSEMBLY-H MTD-17189
...
20
BRACKET ASSY-HDLE-RH MTD-17188
...
21
AXLE ASSEMBLY-RR MTD-738-0767
...
22
PLATE-MTG MTD-16645C
...
23
Height Adjustment Plate MTD-787-01290A
...
24
Order Height Adj. Ass'y. Comp. (Ref. 79) MTD-NA
...
25
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
26
Hex Wash. AB-Tap Scr. 5/1 6 x .75" Lg. MTD-710-0726
...
27
STRUT MTD-749-0771
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
30
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg . MTD-710-0599
...
33
Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5) MTD-710-1044
...
35
Blade Adapter Kit (Incl. Ref. Nos. 28, 33, 35, 36, 37, 39) MTD-753-0484
...
36
Bell-Wash..39" I.D. MTD-736-0452
...
37
L-Wash. 3/8" I.D. MTD-736-0169
...
38
HINGE CLIP MTD-17098P
...
39
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
40
TRAILSHED MTD-731-1026
...
43
Control Cable 39" MTD-946-0550
...
44
DECK ASSEMBLY-22IN MTD-97046
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
52
UPPER HANDLE MTD-749-0756
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
59
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
61
CASING CLAMP MTD-12894A
...
65
FLANGE BEARING MTD-748-0147
...
68
CLIP-CASING MTD-751-0463
...
69
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
73
SPRING LEVER MTD-732-0417A
...
74
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON MTD-14766
...
75
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
77
Index Plate MTD-14764C
...
79
Height Adj. Ass'y. Comp. (R.H.) (Incl. Ref. Nos. 4, 23, 24, 72) MTD-753-06761
...
xx
ADJUSTER A (Not Shown-Incl. Ref. Nos. 4, 23, 24, 72) MTD-16901
...
80
Hinge Pin MTD-747-0710A
...
81
Torsion Spring MTD-932-0593
...
82
BELL WASHER MTD-936-0356
...
83
ADJUSTER-H (Incl. Ref. Nos. 72, 73, 74, 75, 77) MTD-16106
...
xx
ADJUSTER-H (Not Shown-Incl. Ref. Nos. 72, 73, 74, 75, 77) MTD-16107
...
84
PLATE-ADAPTER MTD-17032A
...
85
CHUTE DEFLECTOR MTD-931-1034B
...
86
SCREW 1/4-14 x .625 MTD-710-0892
...
87
LINK-5.3 LG MTD-16532A
...
90
CONTROL HANDLE ASSEMBLY MTD-747-0749A
...
92
Grip Foam MTD-720-0295
...
94
Hex Wash. AB-Tap Scr. 5/16 x.75" Lg. MTD-710-0726
...
95
CABLE BRACKET MOUNTING MTD-16309A
...
96
CLUTCH CABLE 49" MTD-946-0626
...
98
Fl-Wash. .531" I.D. x .93" MTD-736-0192
...
99
SPRING PIN MTD-715-0247
...
100
#48 CHAIN 1/2 PITCH x 50 LINKS (Endless) MTD-913-0311
...
101
SPROCKET-10T MTD-713-0308
...
102
SPRING WASHER BELL MTD-736-0270

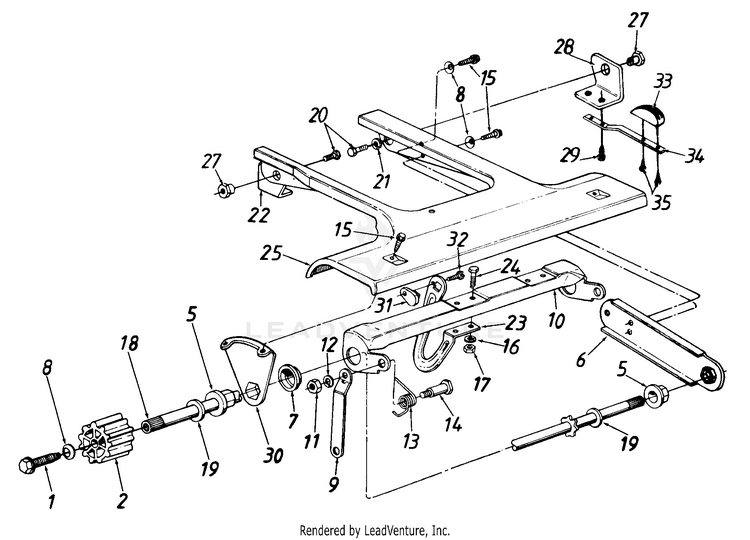

Parts04

...
...
1
Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
2
DRIVE PINION MTD-931-0908
...
5
Hex Flange Brg. .504" I.D. MTD-741-0503
...
6
SUPPORT-BEARING MTD-17018
...
7
FLANGE BEARING MTD-741-0504
...
8
SPRING WASHER BELL MTD-736-0270
...
9
LINK-5.3 LG MTD-16532A
...
10
DRIVE ENGAGEMENT CAM MTD-16832
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
TORSION SPRING (RH) MTD-732-0569
...
xx
TORSION SPRING (LH) (Not Shown) MTD-732-0570A
...
14
Shoulder Bolt .437" Dia. MTD-738-0754
...
15
SCREW 1/4-14 x .625 MTD-710-0892
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
DRIVE SHAFT ASSEMBLY MTD-738-0732
...
19
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
20
Hex Bolt 3/8-16 x .5" Lg. MTD-710-0168
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
PIVOT BRACKET (RH) MTD-17614
...
23
ARM-ENGAGEMENT MTD-17185
...
24
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
25
FRONT PINION PIVOT COVER MTD-17725
...
27
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
28
PIVOT BRACKET (LH) MTD-17613
...
29
SCREW 1/4-14 x .625 MTD-710-0892
...
30
BRACKET-AXLE BEARI MTD-17017
...
31
HOLD DOWN-BARREL (RH) MTD-746-0606
...
32
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919
...
33
CHAIN TENSIONER MTD-731-1136
...
34
SPRING-CANTILEVER MTD-732-0635
...
35
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
...
...
...
...
