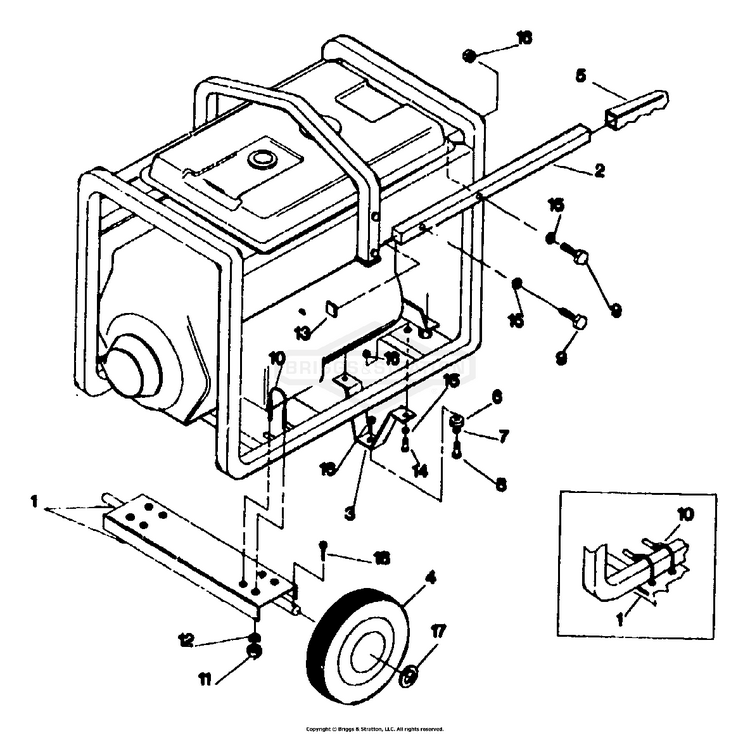

9484-0 Briggs and Stratton Wheel Kit Wheel Kit

Model: 9484-0

Save
 Part Not Listed?Part Not Listed?
product name

Wheel Kit

...
...
1
Axle Assembly BS-84535
...
2
Transport Handle BS-82334
...
3
Mounting Leg BS-45131
...
4
KIT, DISCHARGE CHUTE BS-7600147YP
...
5
GRIP, HNDL BS-77584GS
...
6
VIBE MOUNT, with Washer BS-191413GS
...
7
Washer, .34 x 1 x 10 BS-50190GS
...
8
SCREW BS-42909GS
...
9
M8-1.25 x 40mm Capscrew BS-57821
...
10
U-bolt BS-26858
...
11
NUT, 5/16-18 HEX BS-5025032SM
...
12
WASHER, Lock BS-22129GS
...
13
CAP PLUG, Tubing BS-46476GS
...
14
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
3/4" Flat Washer BS-45900
...
18
PIN, COTTER, 3/32-1 BS-22268GS
...
...
...
...
...
